Home >> Volkswagen >> 2004 >> New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Transmission Control Systems >> 6 Speed Automatic 09G >> VAG Codes >> DTC 01316

DTC 01316

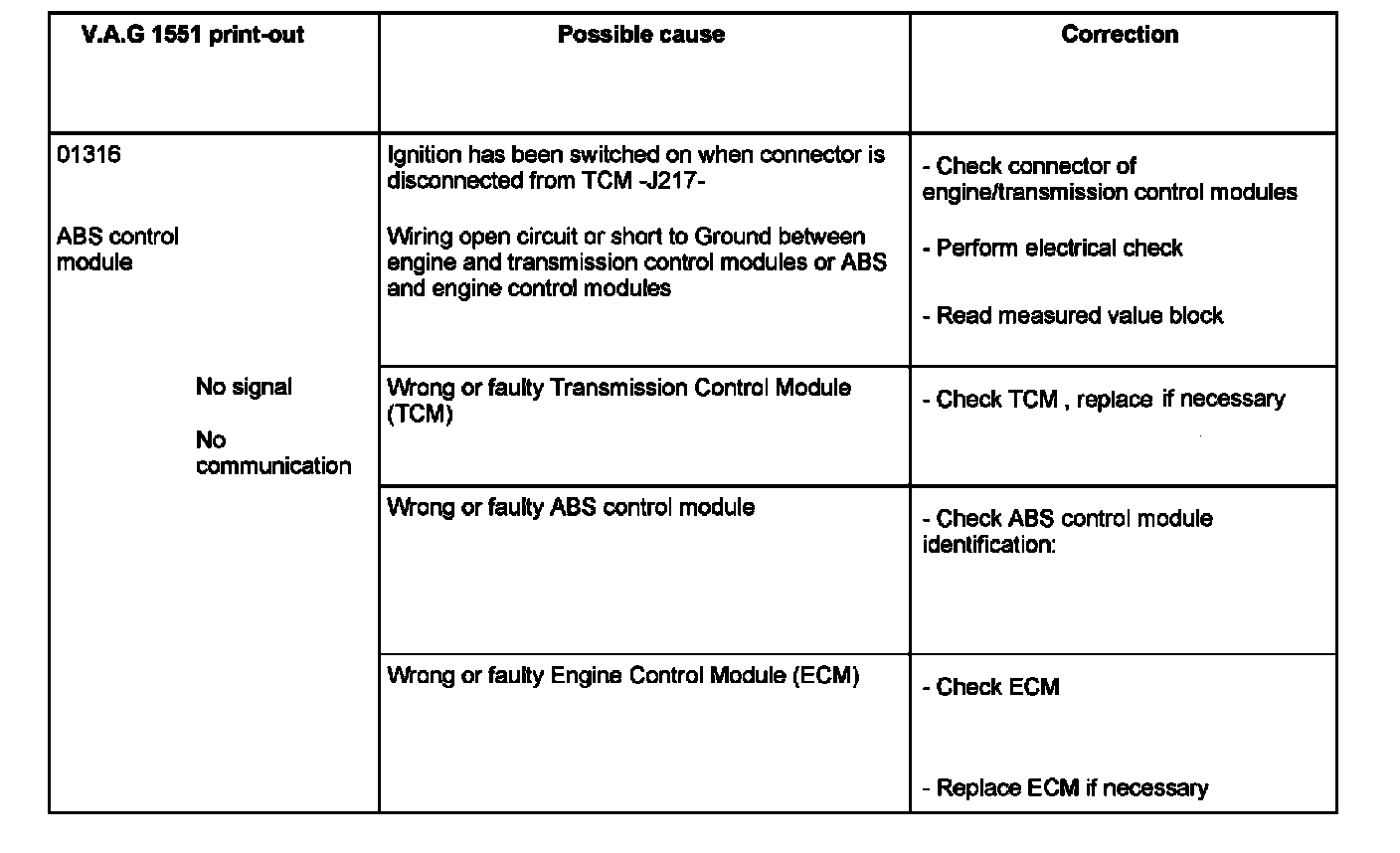

DTC 01316 ABS Control Module:
