A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Transmission Control Systems
>>
6 Speed Automatic 09G
>>
VAG Codes
>>
DTC 00293
DTC 00293

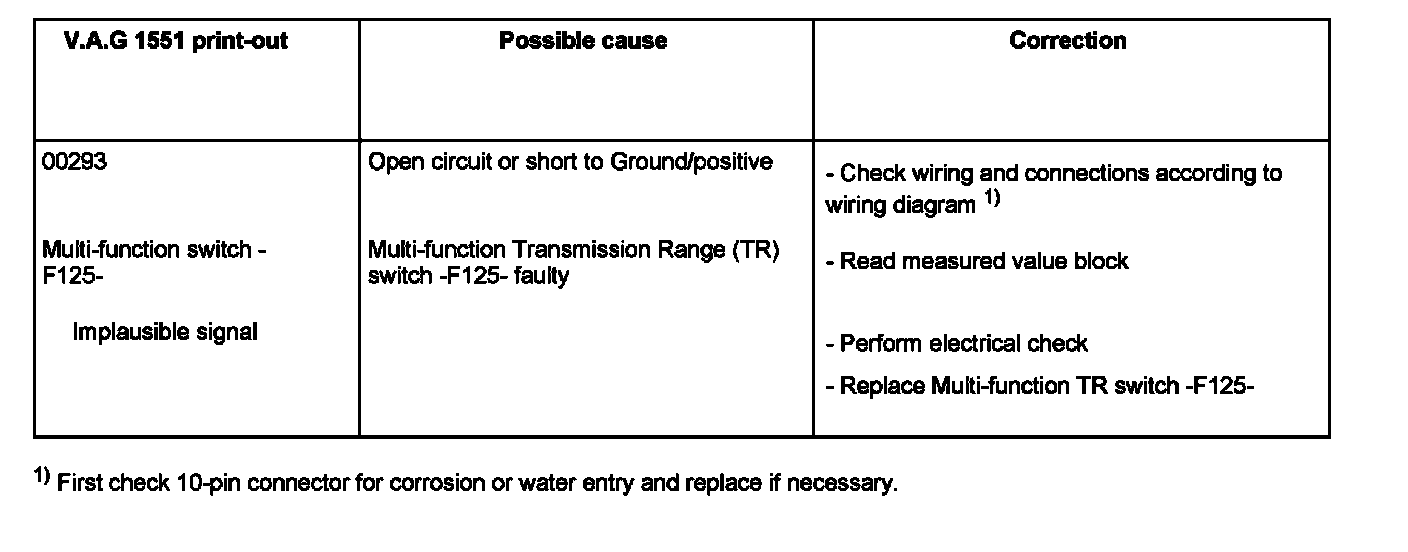

DTC 00293 Multi-function Switch-F 125:
