Display Group 007

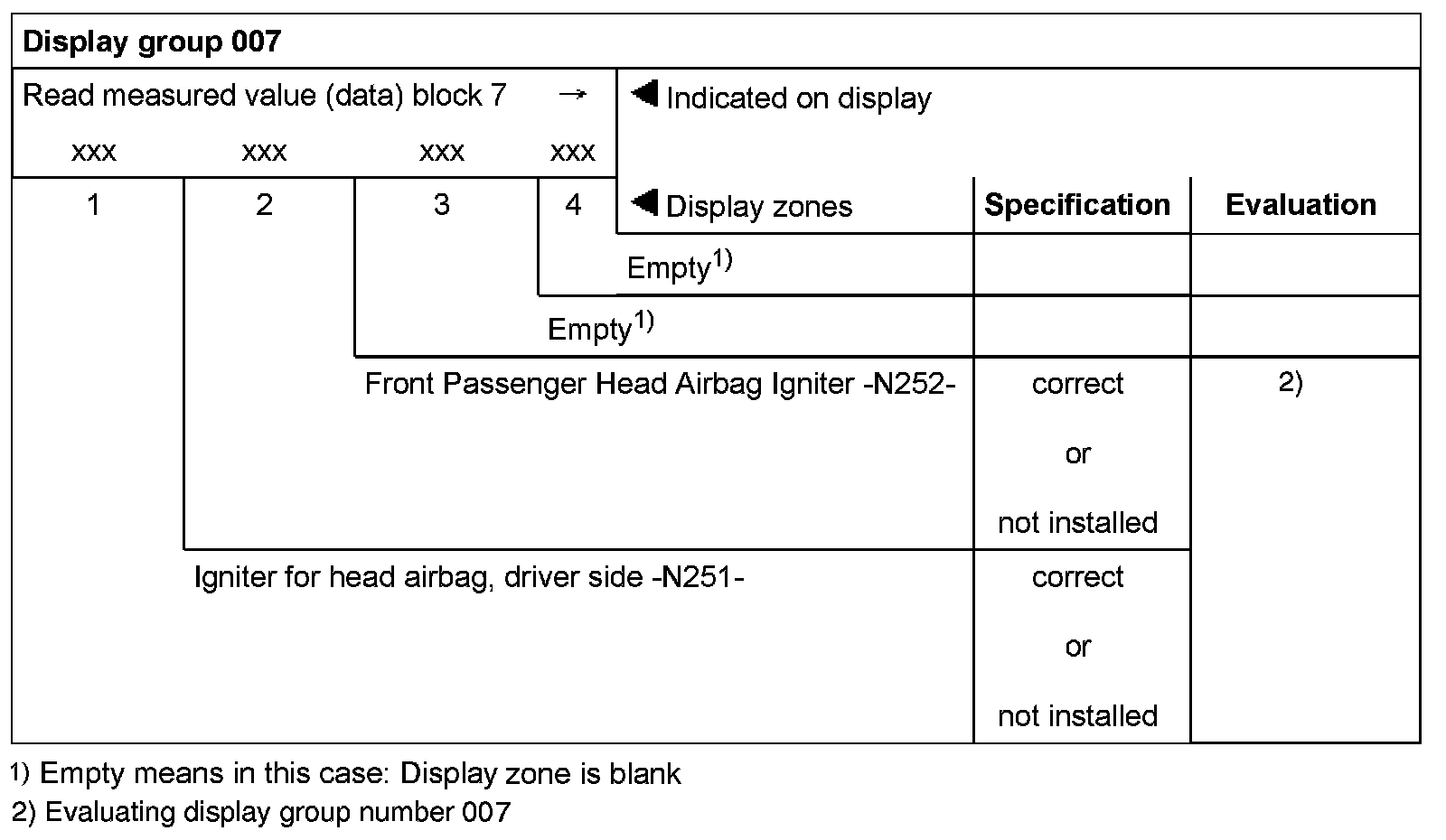

Display group 007


Display Group 007:

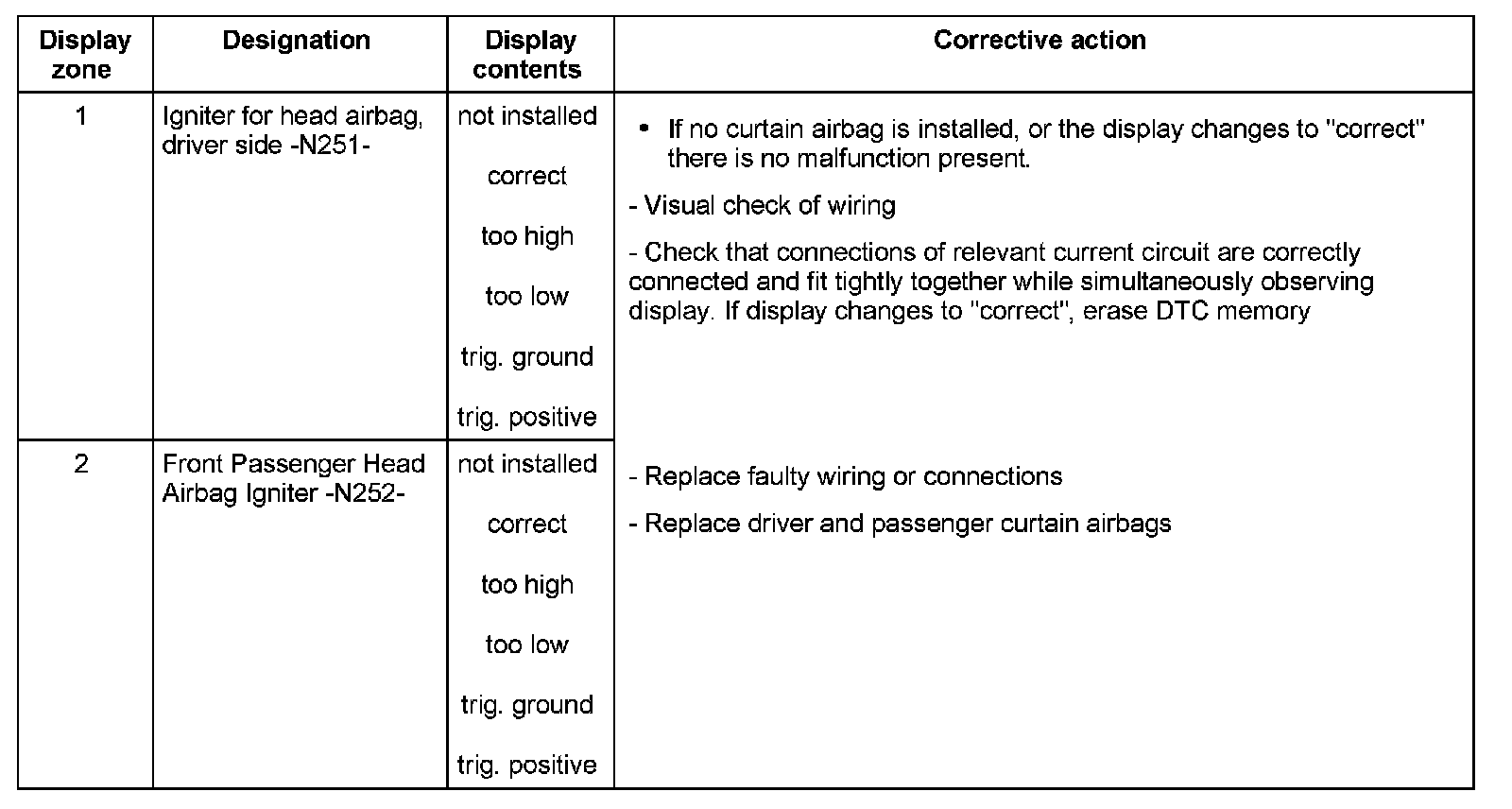

Evaluating display group number 007


Display Zone 1 - 2:
