DTC 00290


Part 1 Of 3:

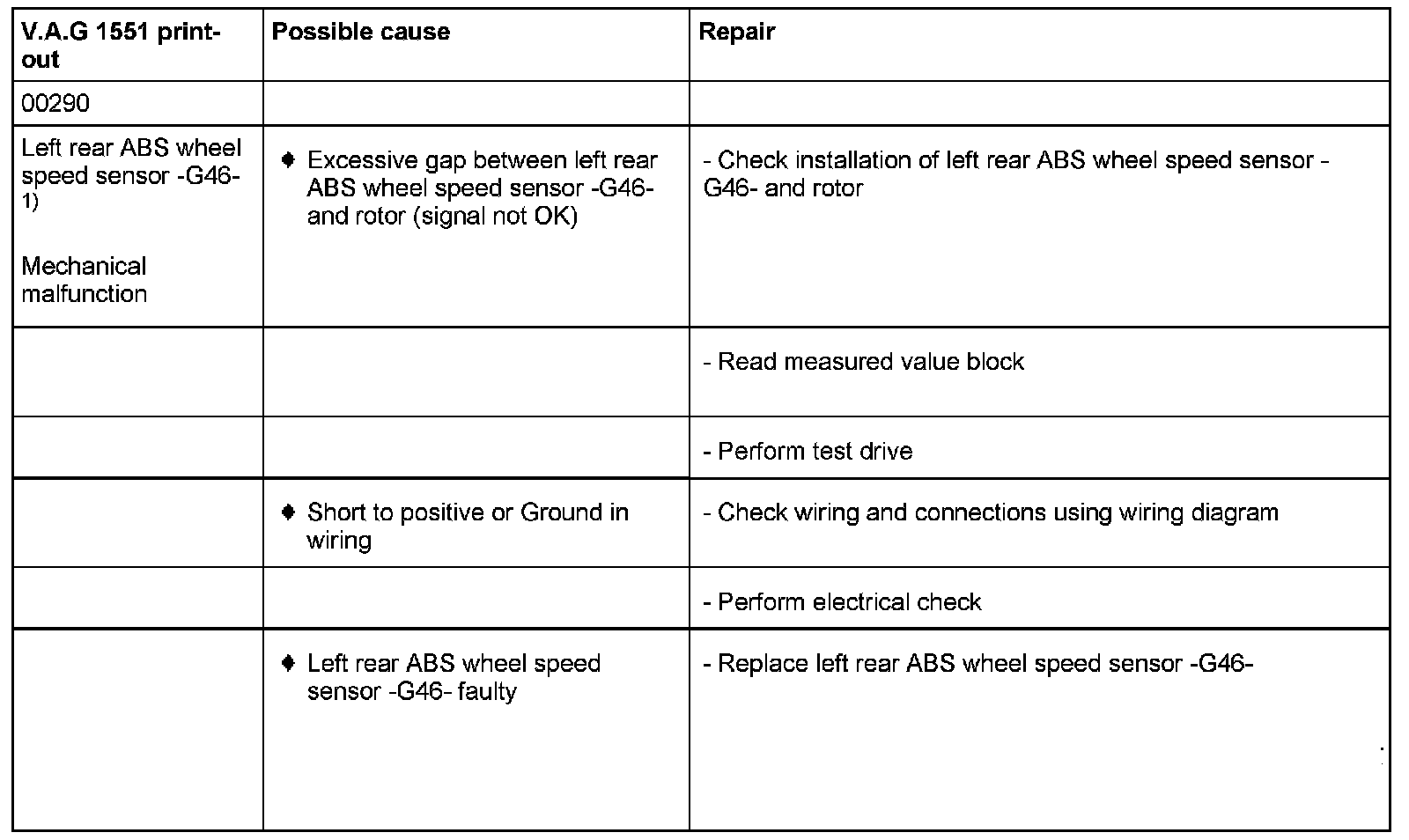

Part 2 Of 3:




Part 3 Of 3:





00290 Left rear ABS wheel speed sensor _G46-1)
