Home >> Volkswagen >> 2004 >> New Beetle Convertible (1Y1) L4-1.8L Turbo (AWV) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Brakes and Traction Control >> VAG Codes >> DTC 00287

DTC 00287

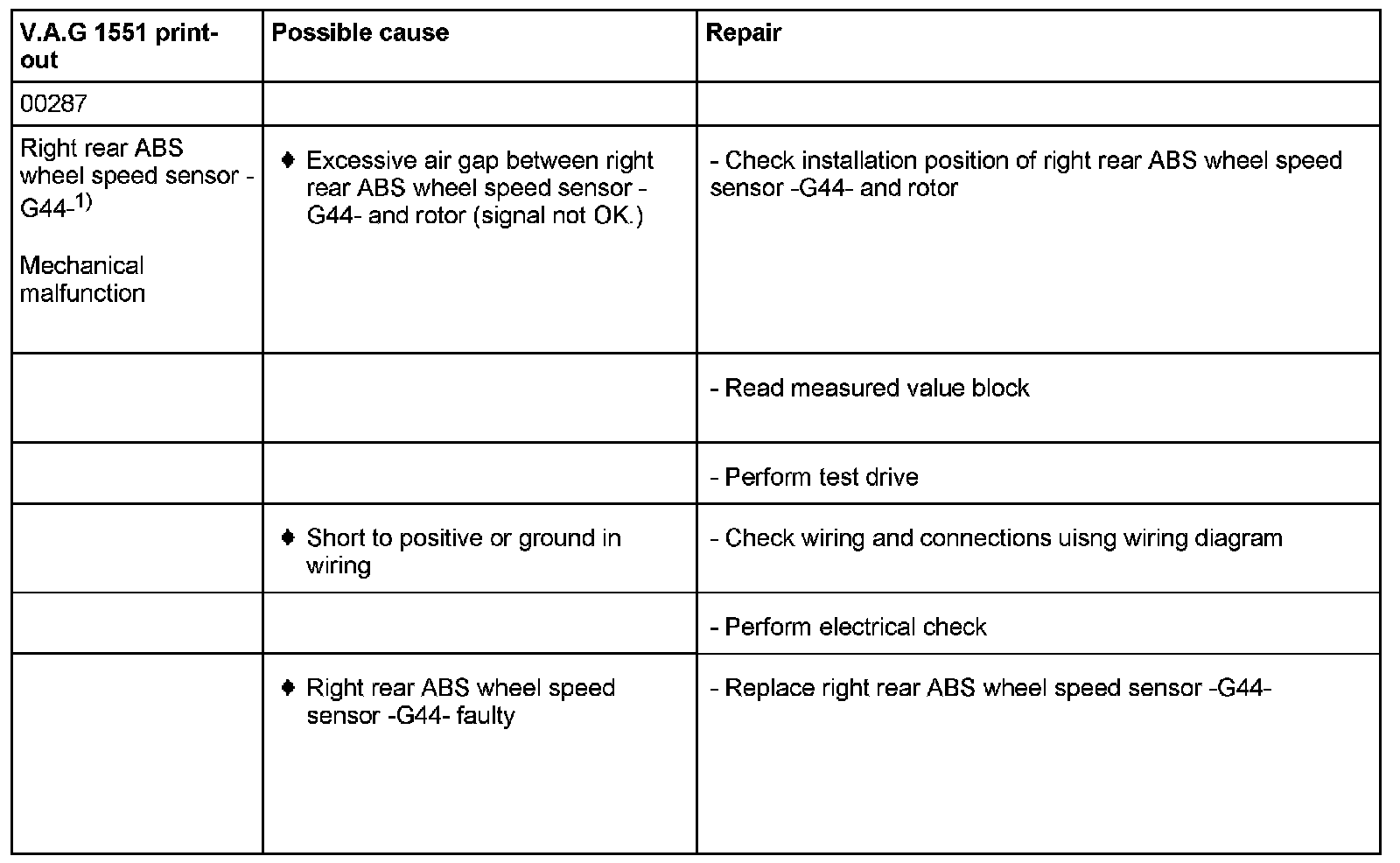

Part 1 Of 3:

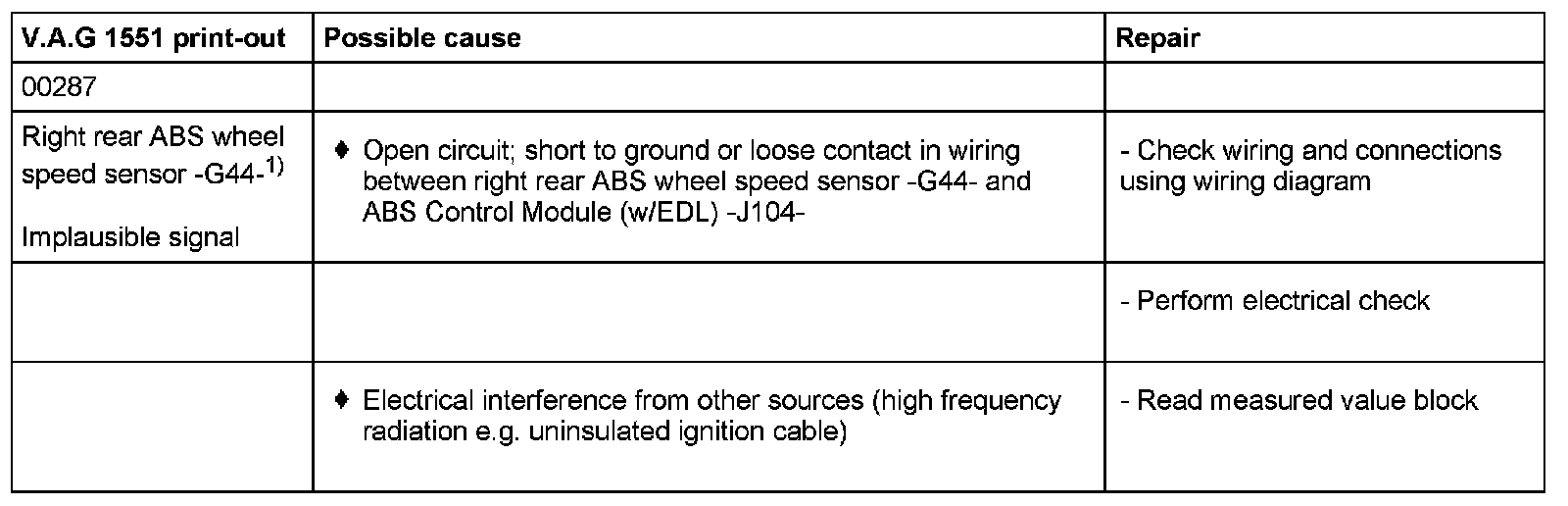

Part 2 Of 3:

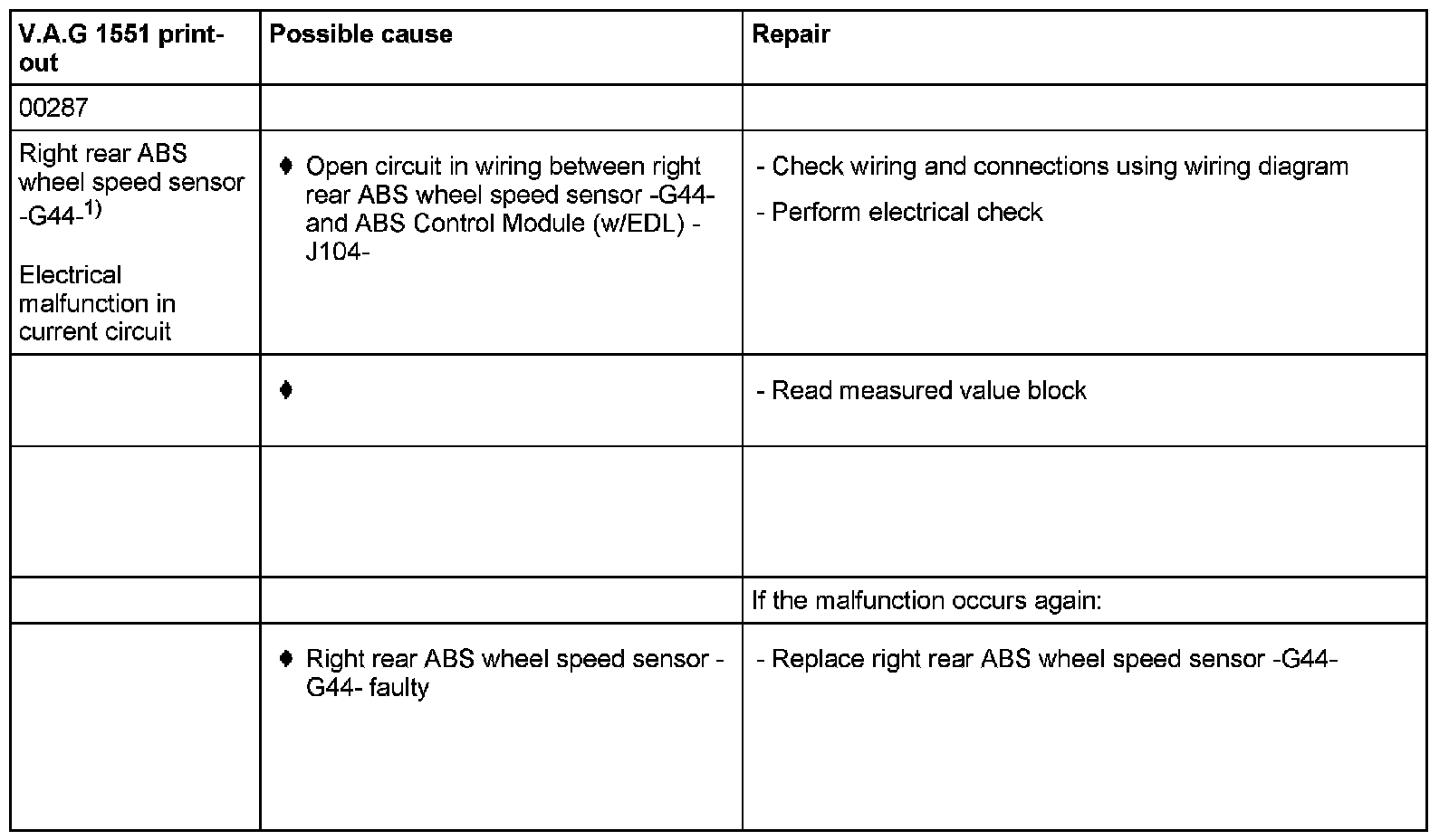

Part 3 Of 3:





00287 Right rear ABS wheel speed sensor- G 44-1)
