DTC 00285


Part 1 Of 3:

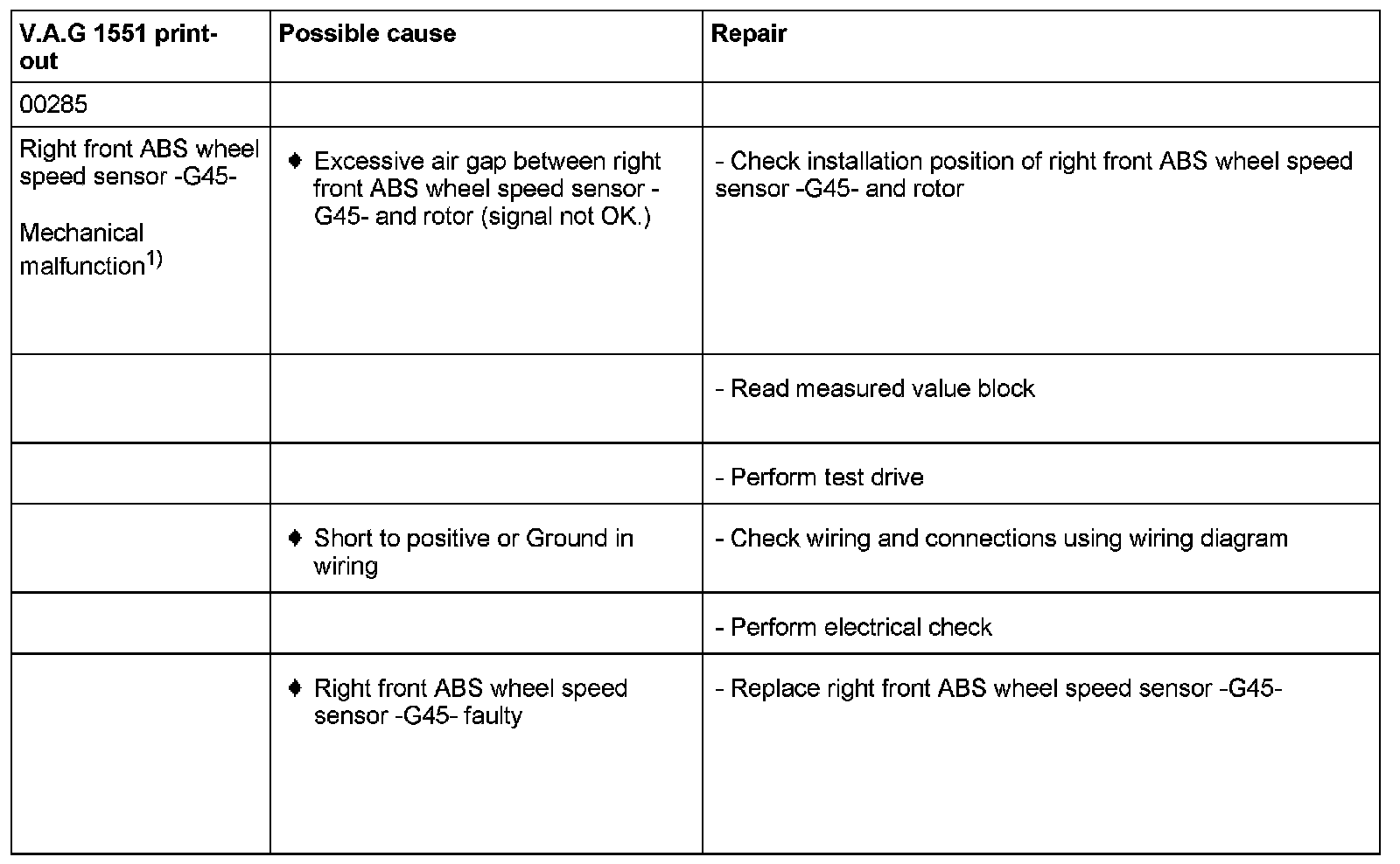

Part 2 Of 3:

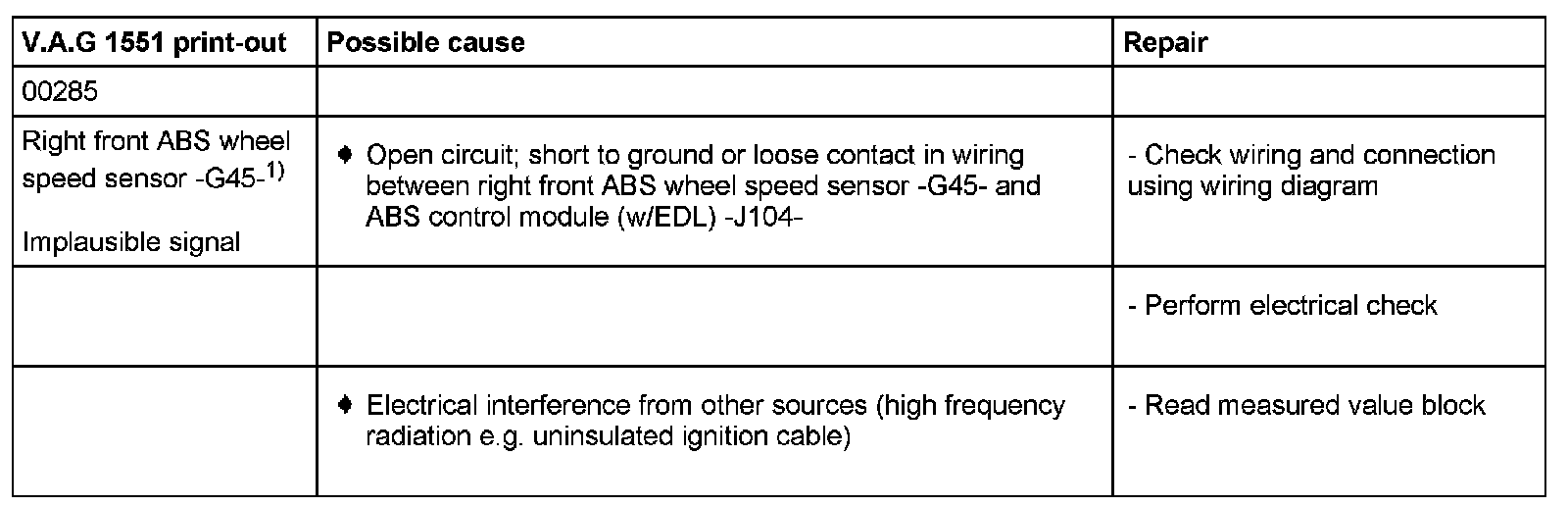

Part 3 Of 3:





00285 Right front ABS wheel speed sensor -G45-)
