Power Distribution Relay
>>
Locations
>>

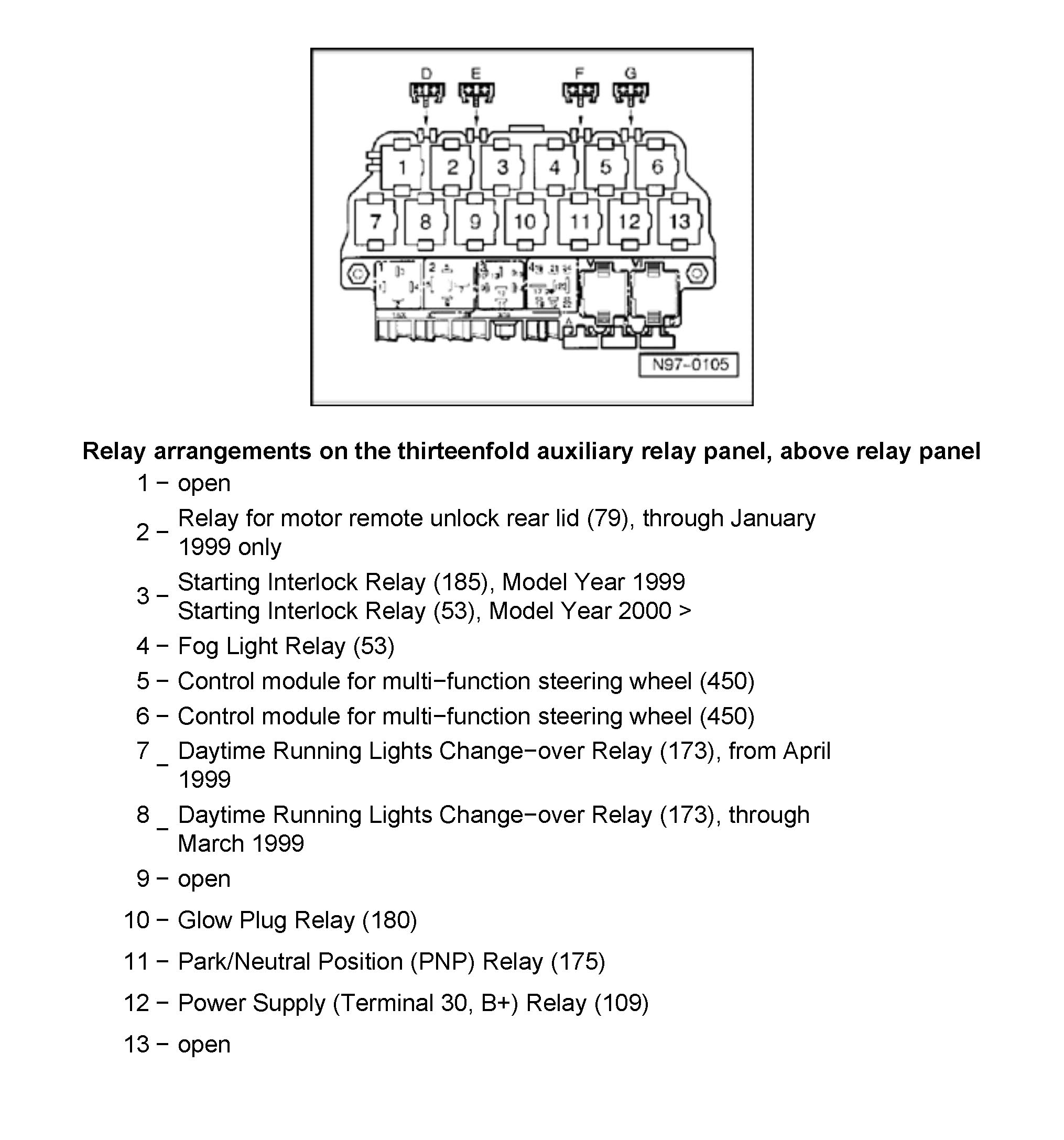

Relay Arrangements on the Thirteenfold Auxiliary Relay Panel, Above Relay Panel
Relay Arrangements on the Thirteenfold Auxiliary Relay Panel, Above Relay Panel
Relay arrangements on the thirteenfold auxiliary relay panel, above relay panel
