Display Group 009
Display Group 009
Display Group 009

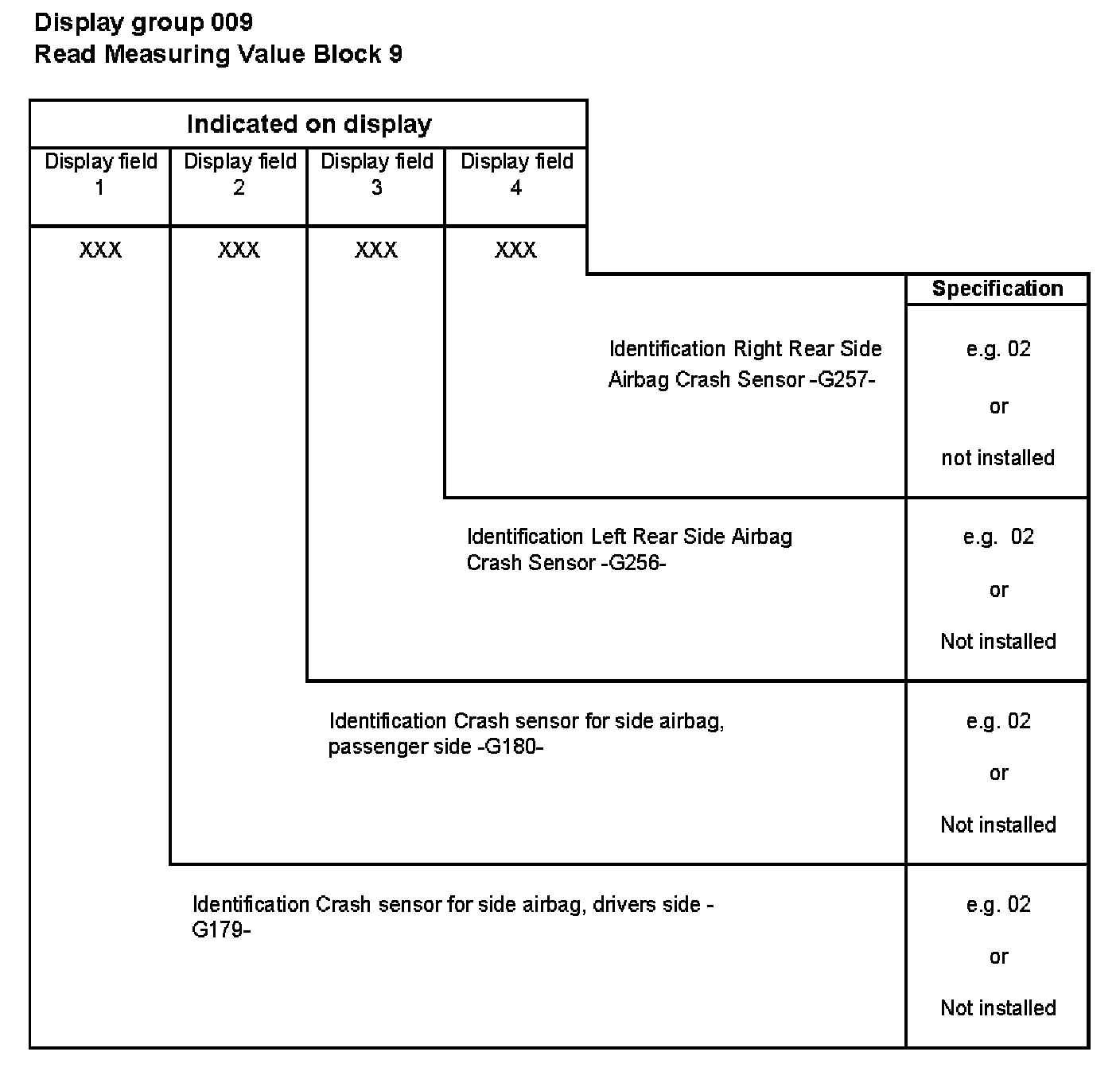

Display Group 009:

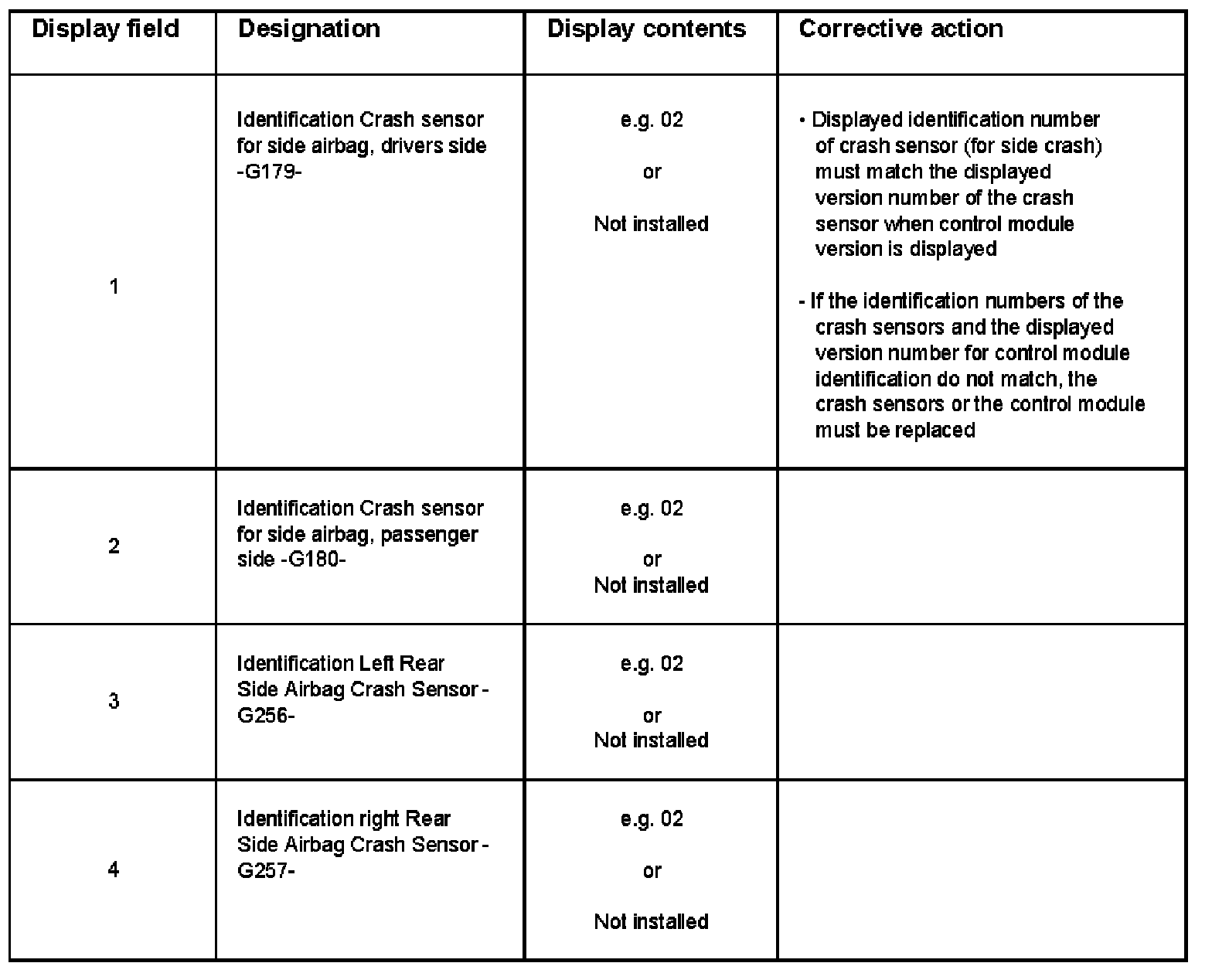

Evaluating Display Group Number 009
Display Field 1 - 4:
