Display Groups 86 to 89, 100 (Readiness Code)

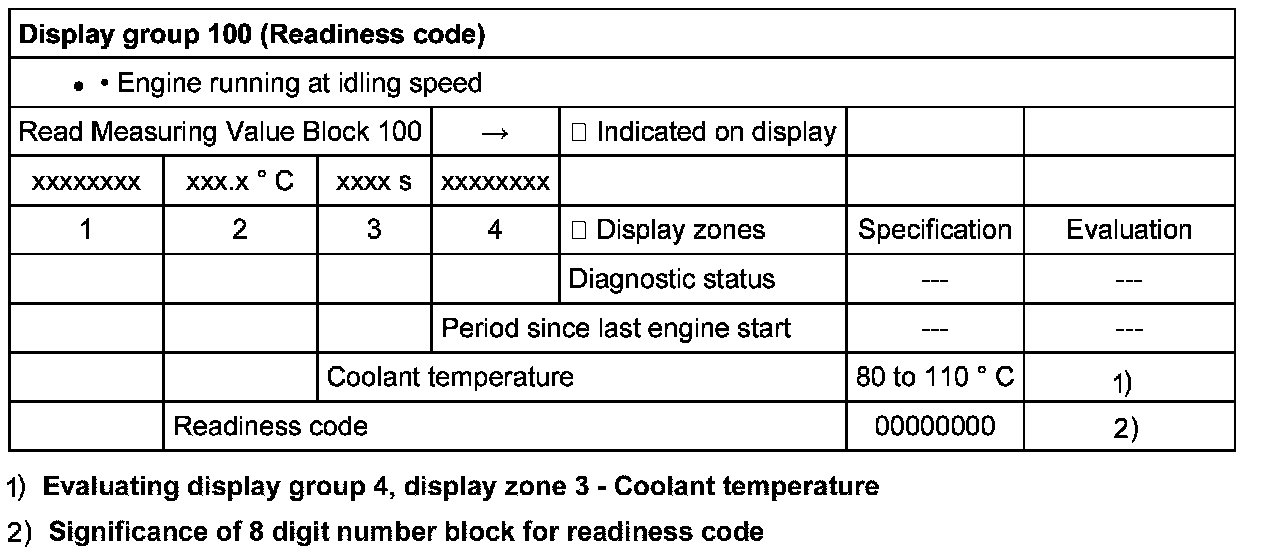

Measured Value Blocks, Evaluating Display Groups 86 To 89, 100 (Readiness Code)

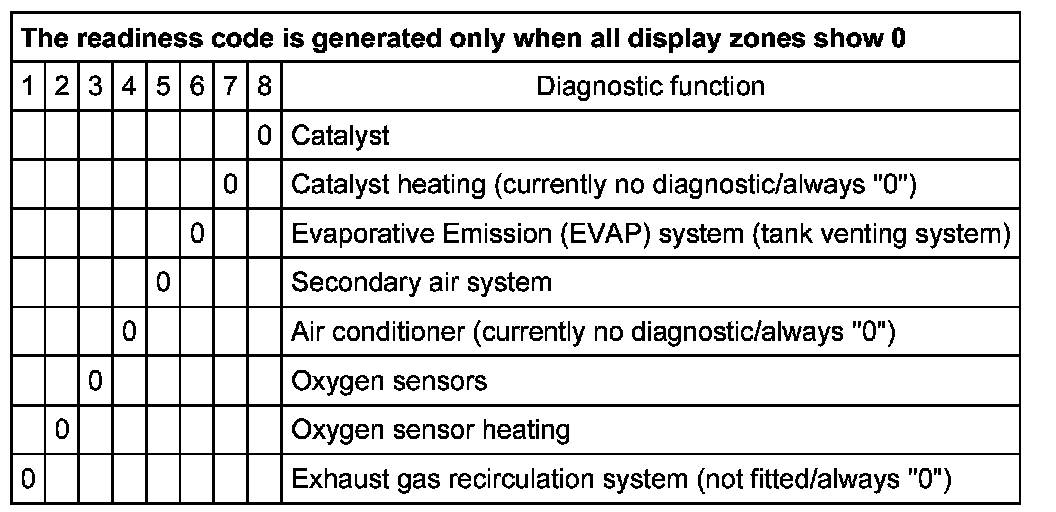

Significance of 8 digit number block for readiness code
