Display Groups 10 to 29 (Ignition)



Measuring Value Blocks, Evaluating Display Groups 10 To 29 (Ignition)

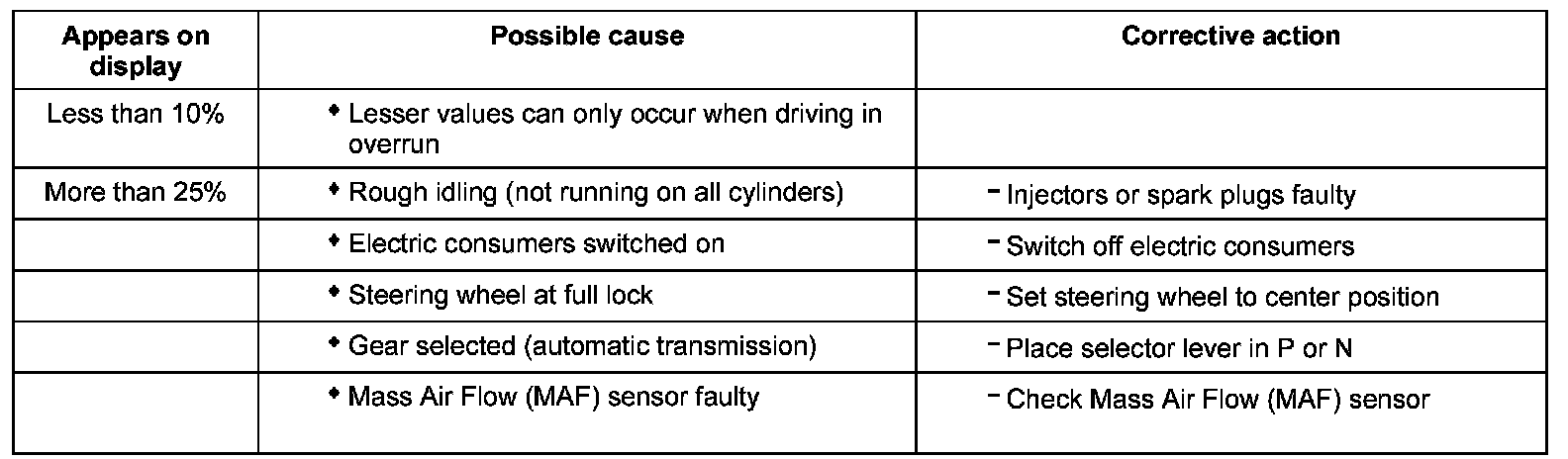

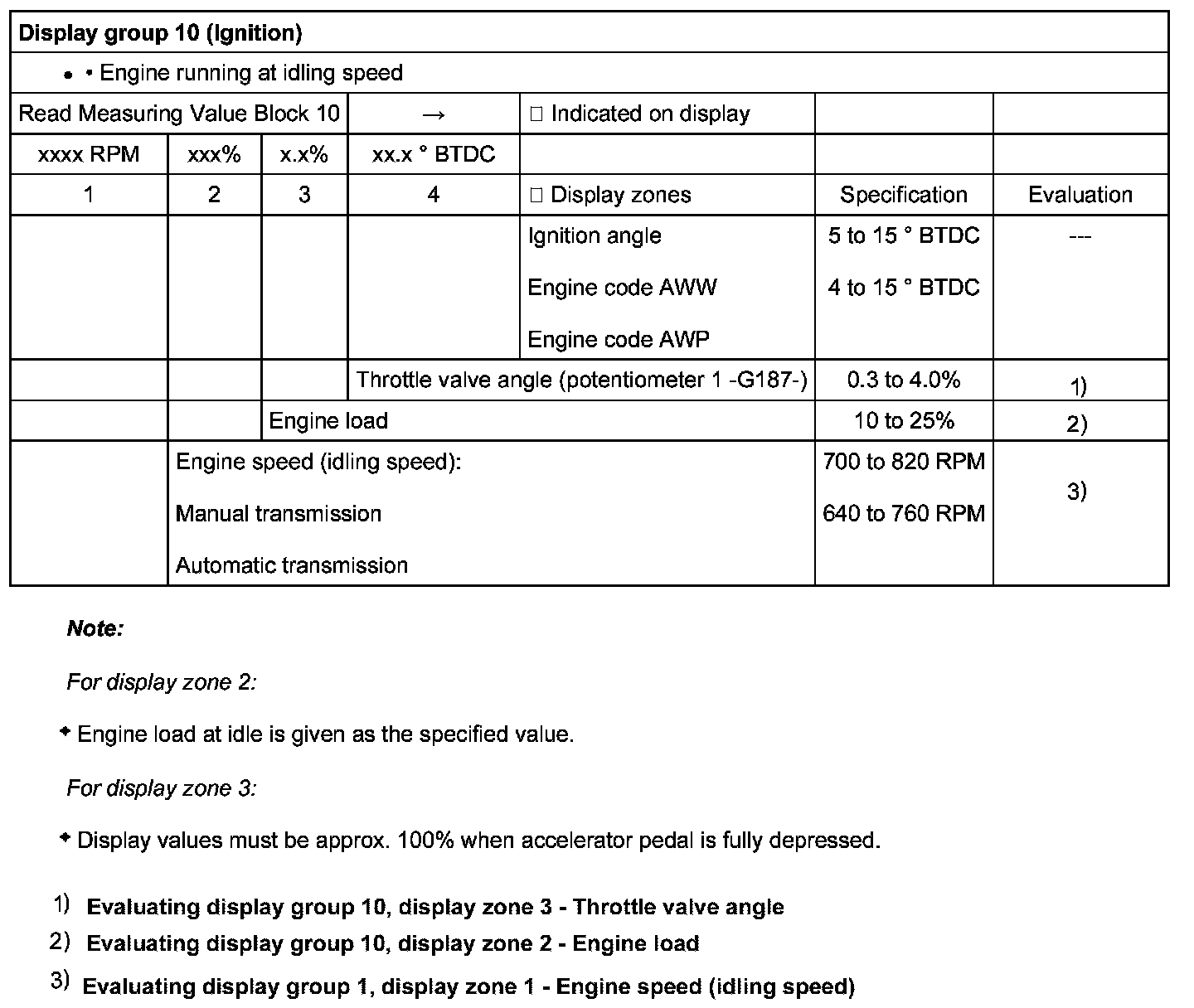

Evaluating display group 10, display zone 2 - Engine load

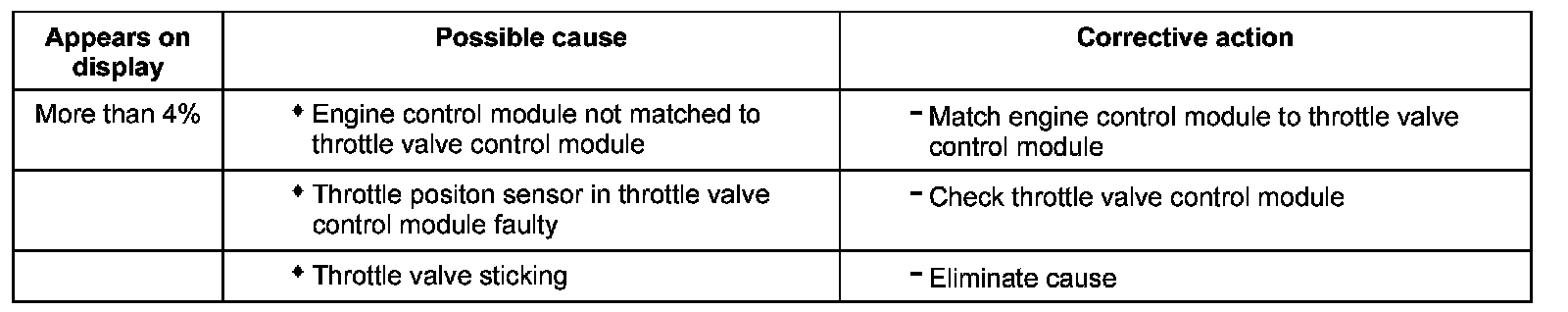

Evaluating display group 10, display zone 3 - Throttle valve angle

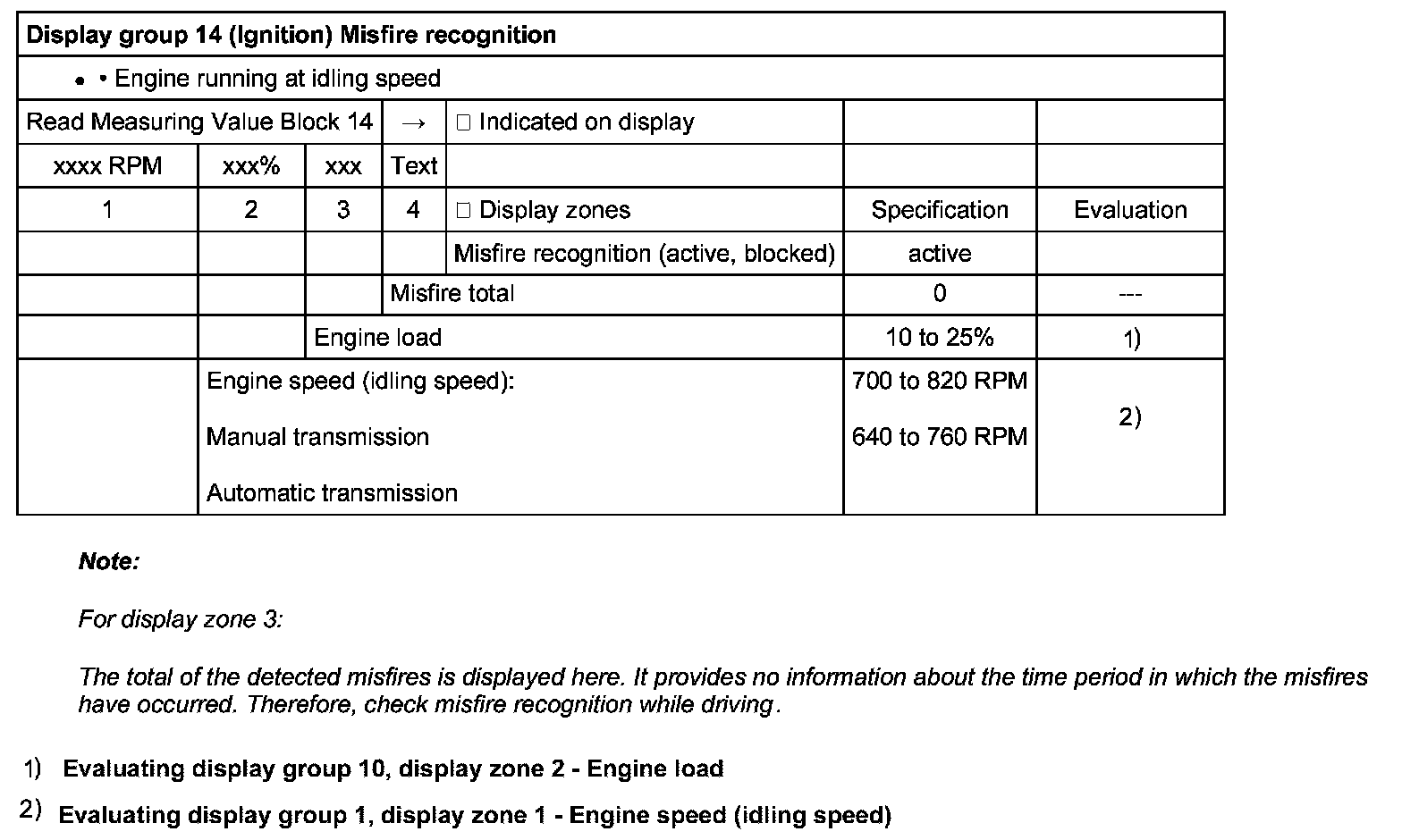

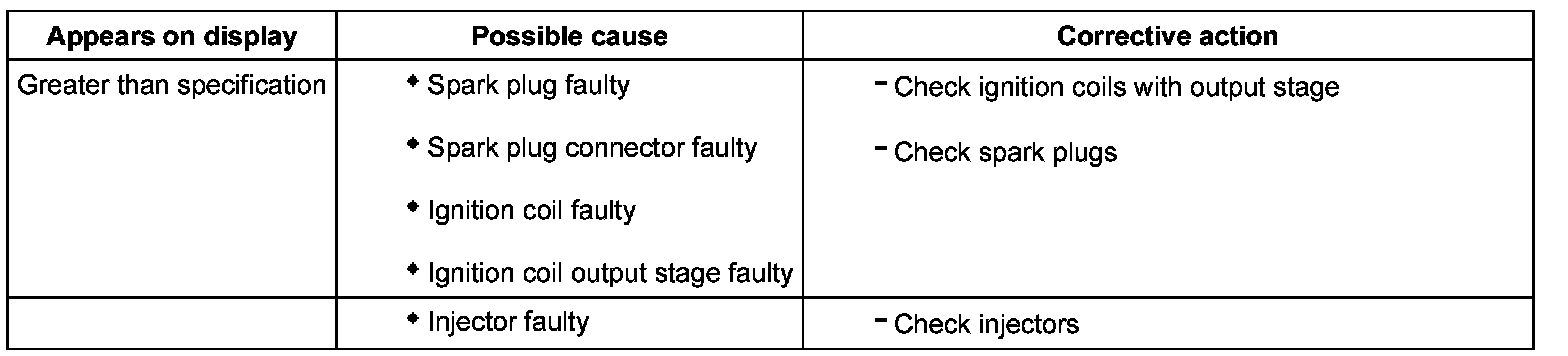

Evaluating display group 14, display zone 3 - Total number of misfires

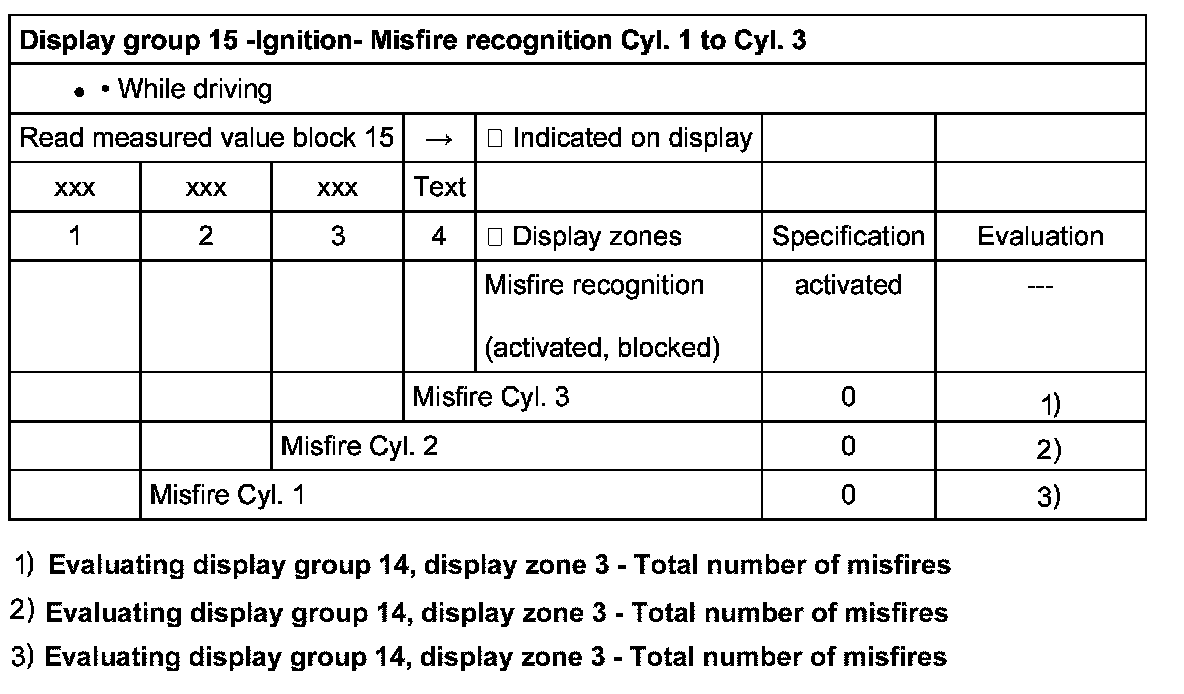

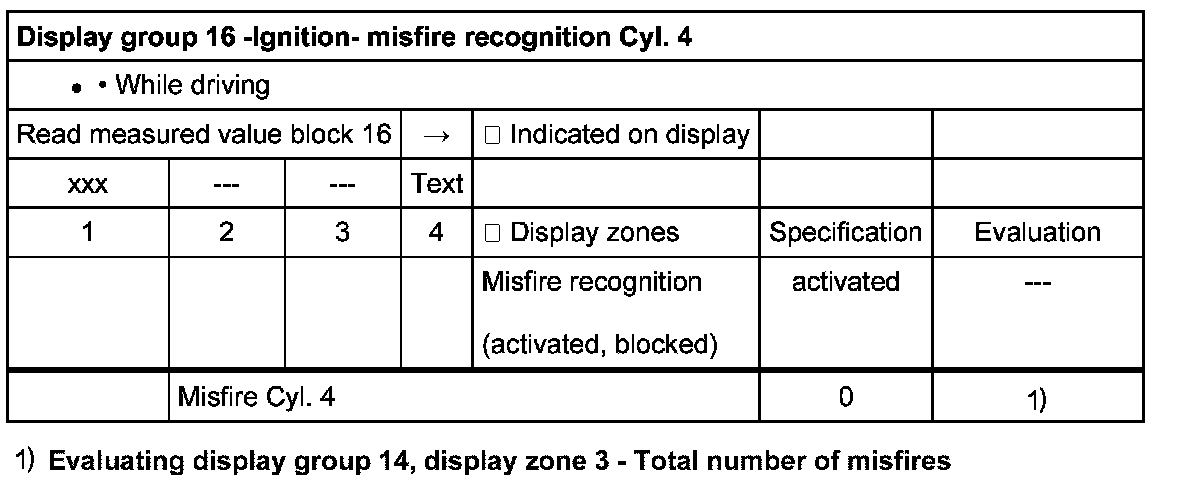

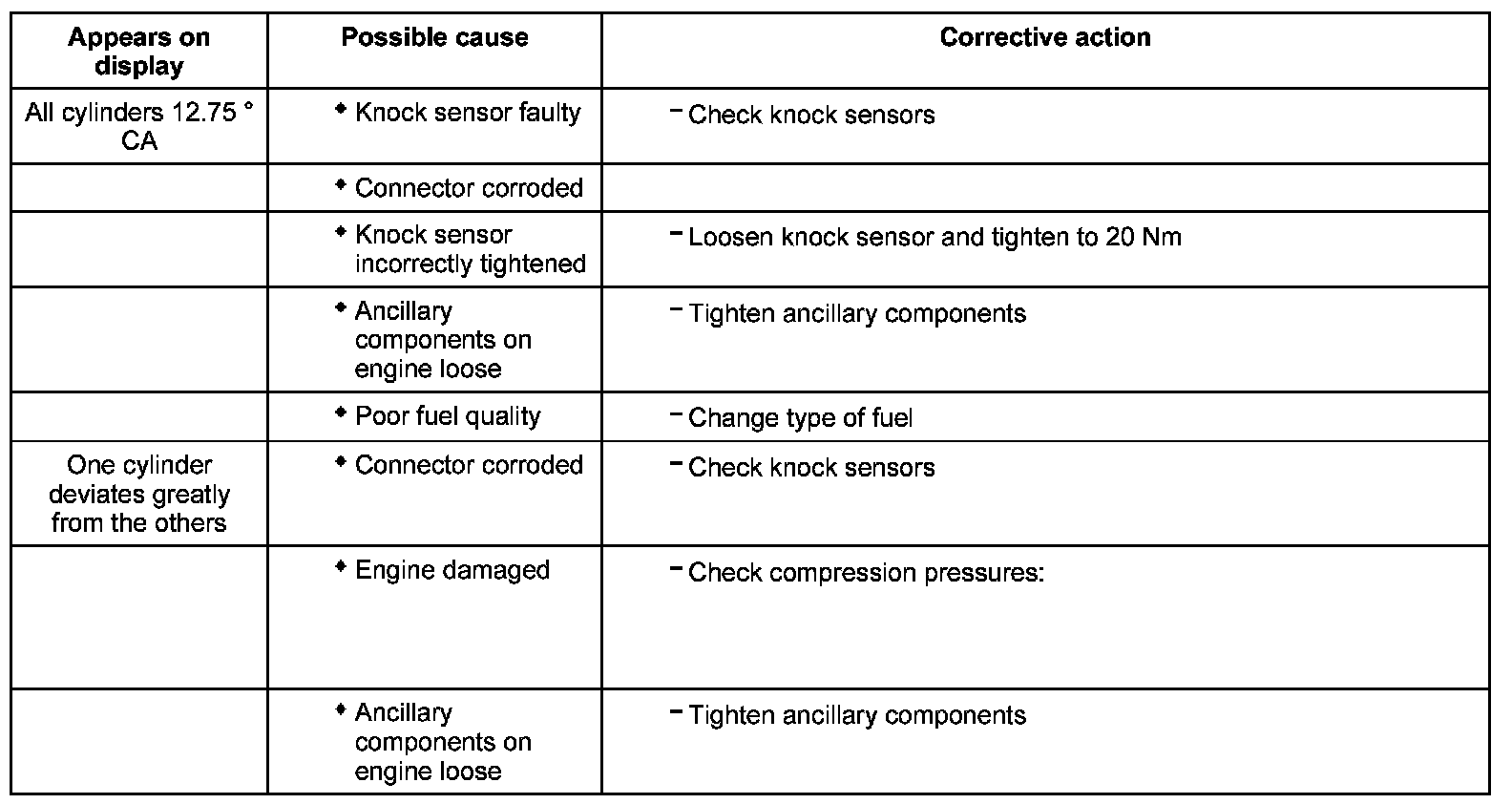

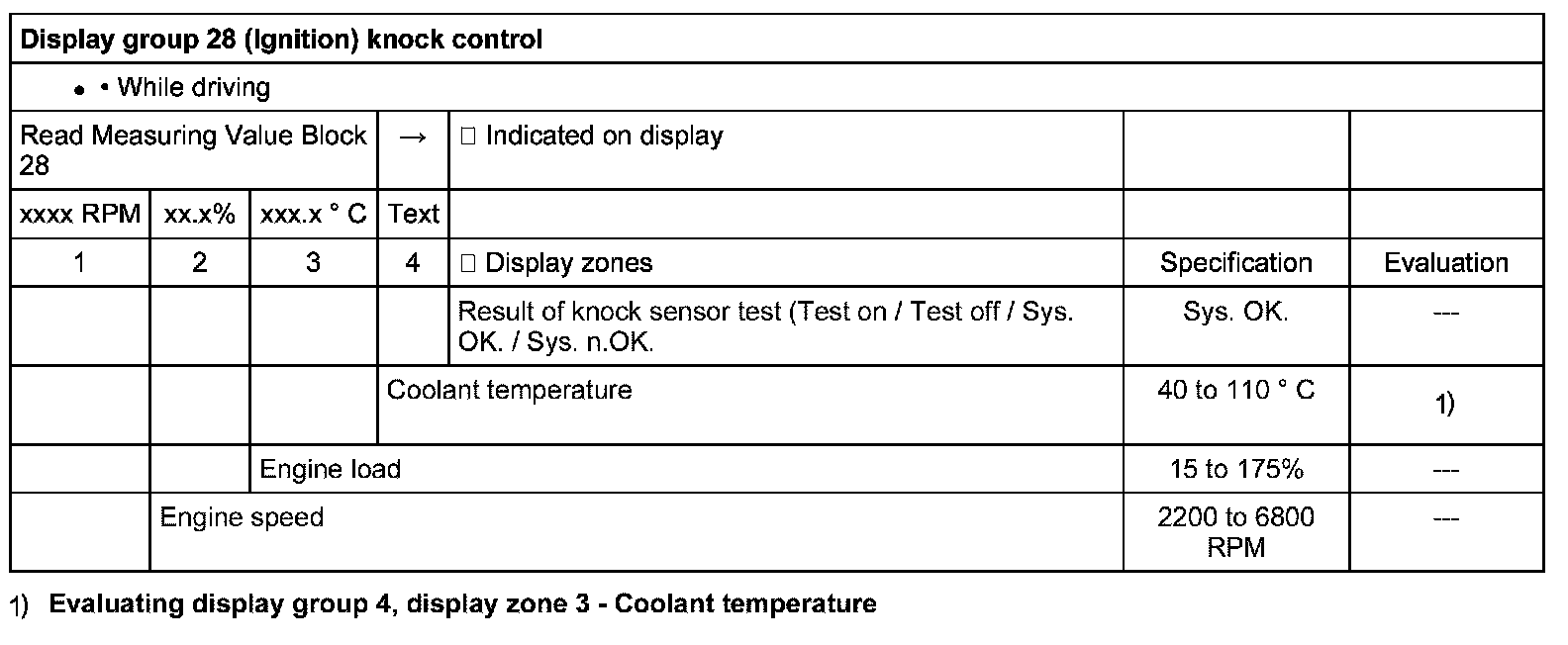

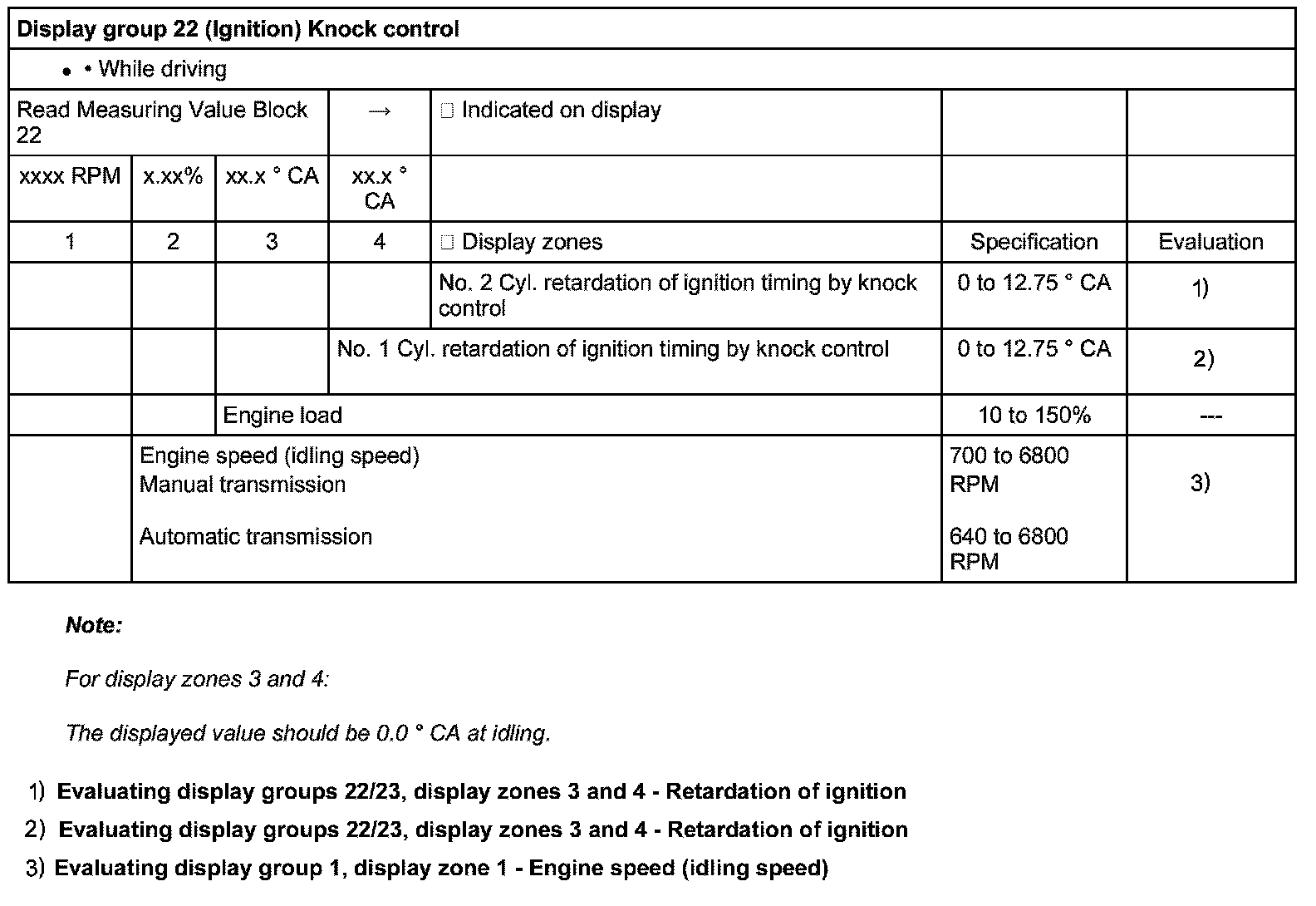

Evaluating display groups 22/23, display zones 3 and 4 - Retardation of ignition
