With Generic Scan Tool

Wastegate Bypass Regulator Valve, Checking

Recommended special tools and equipment
- V.A.G 1526 multimeter or V.A.G 1715 multimeter
- V.A.G 1594 connector test kit

Test sequence

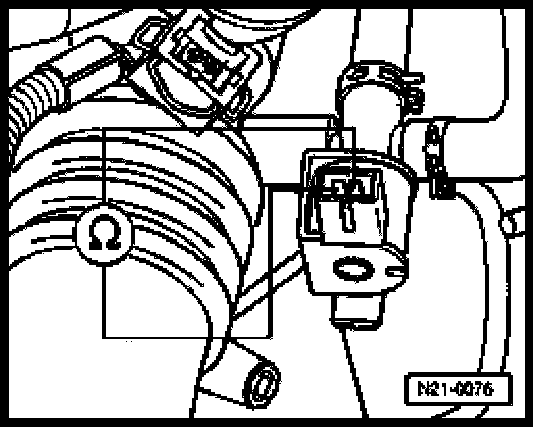

- Disconnect connector -2- at Wastegate Bypass Regulator Valve -N75- (-1-).







- Measure resistance between terminals of valve.
Specified value: 25 to 35 Ohms

If specified value is not obtained:
- Replace Wastegate Bypass Regulator Valve -N75-.
- Erase DTC memory of Engine Control Module (ECM), Diagnostic mode 4: Reset/erase diagnostic data. Diagnostic Mode 4: Reset/Erase Diagnostic Data
- Generate readiness code. Monitors, Trips, Drive Cycles and Readiness Codes
