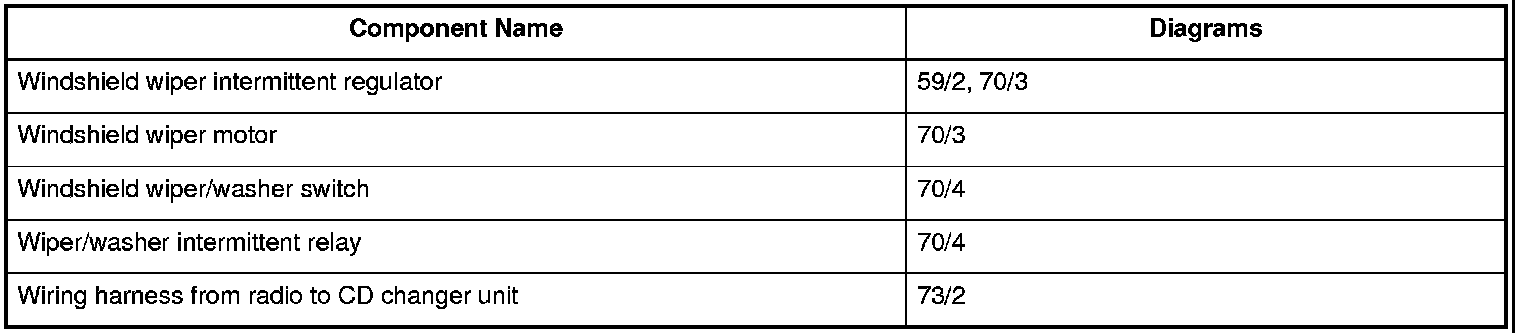

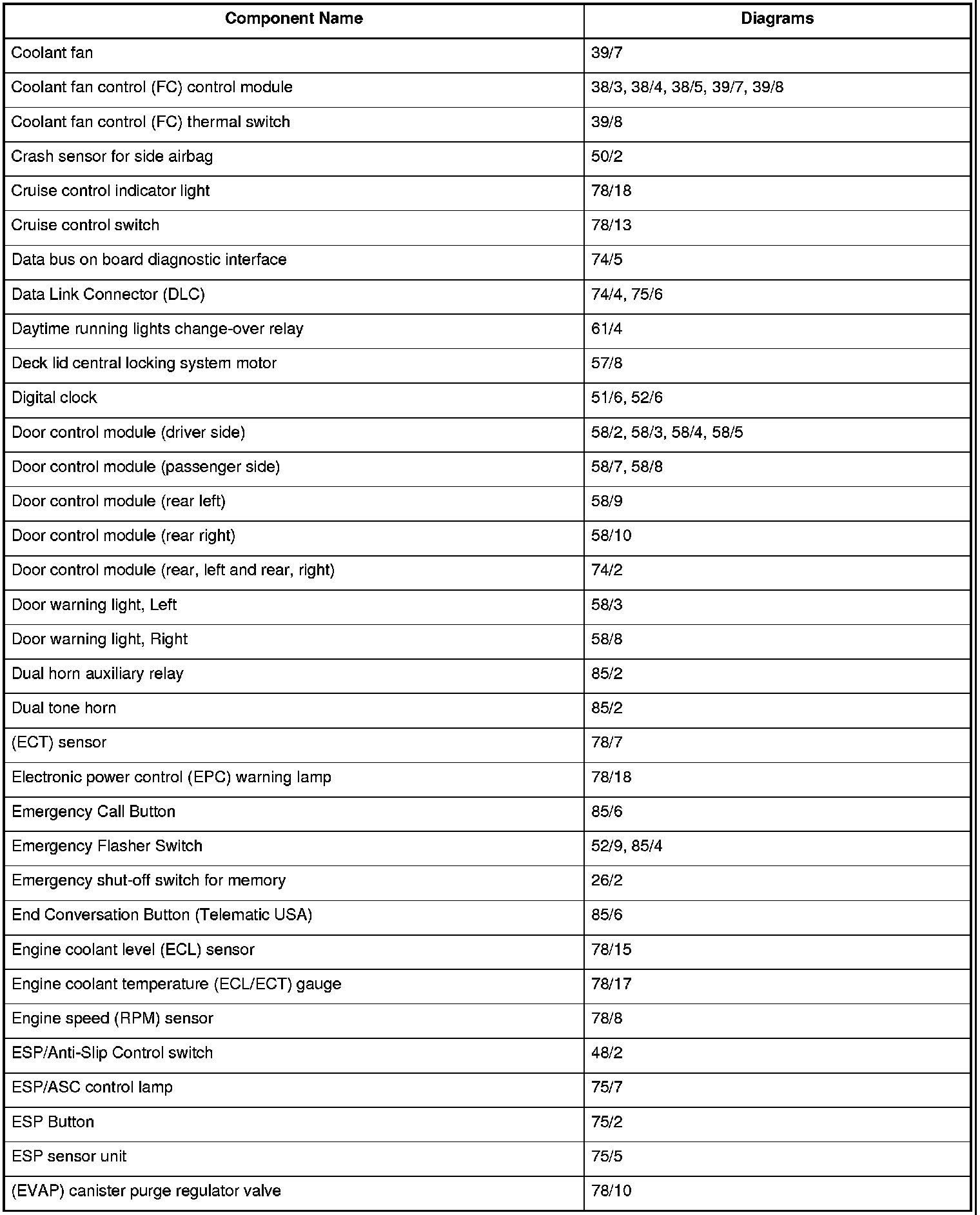

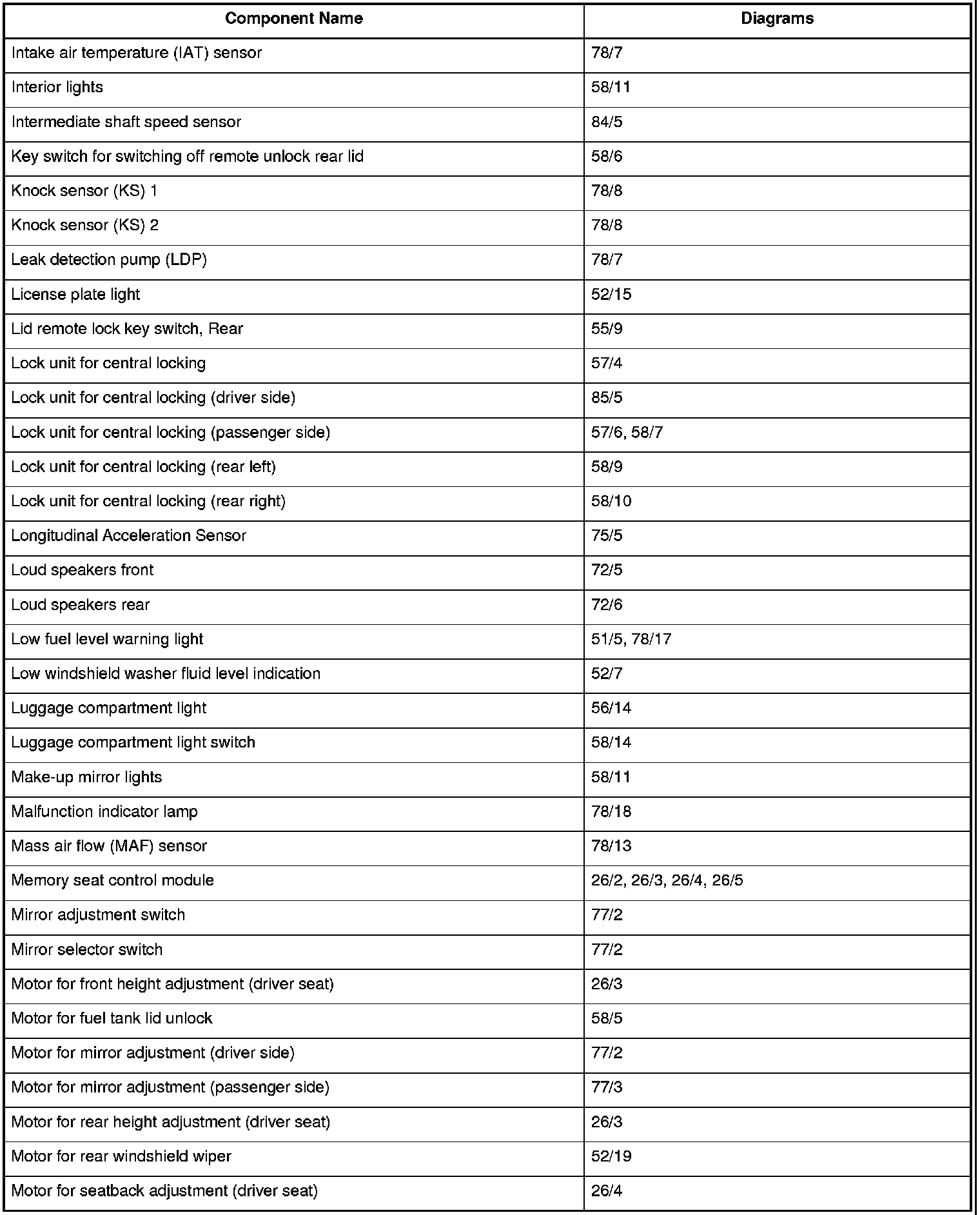

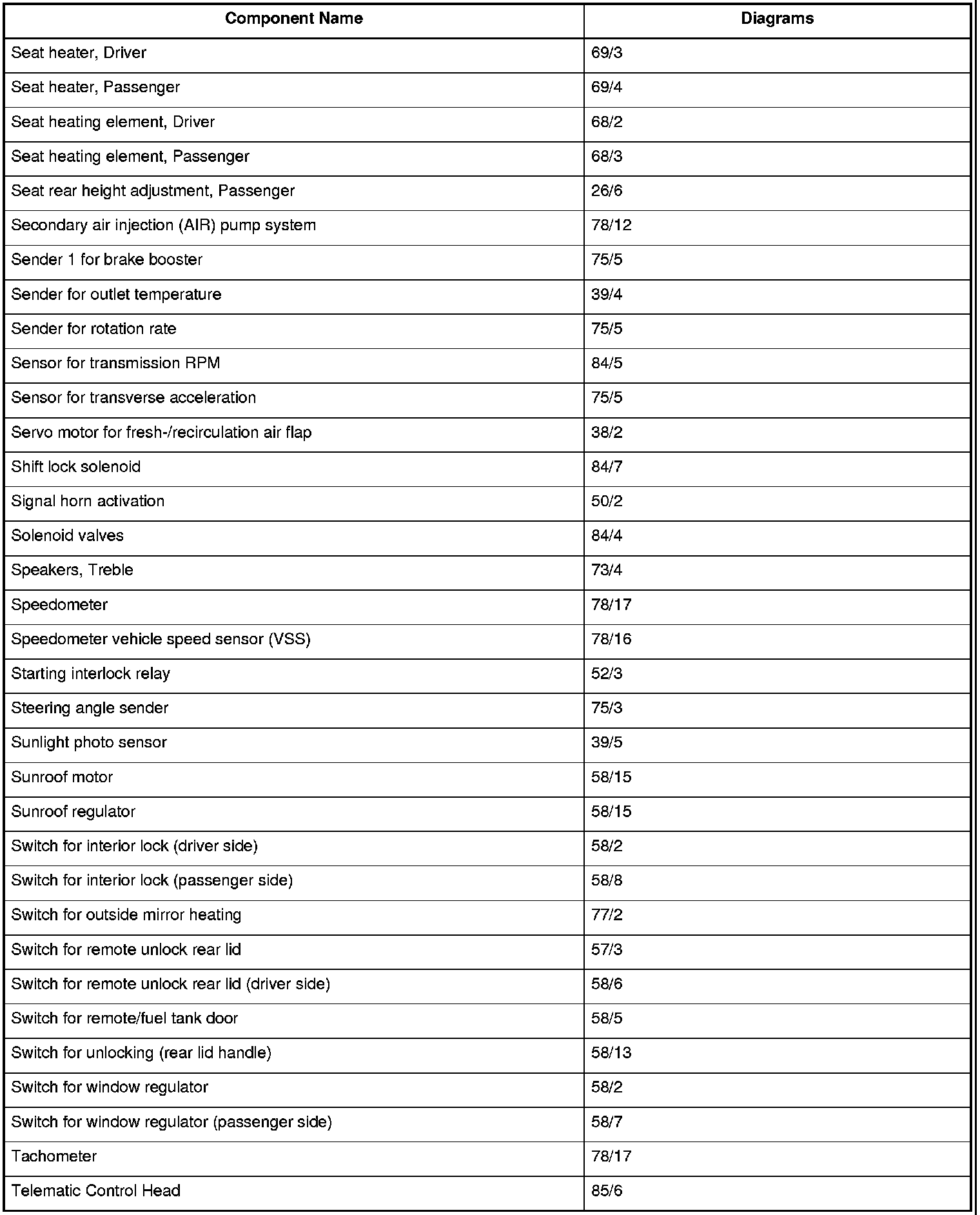

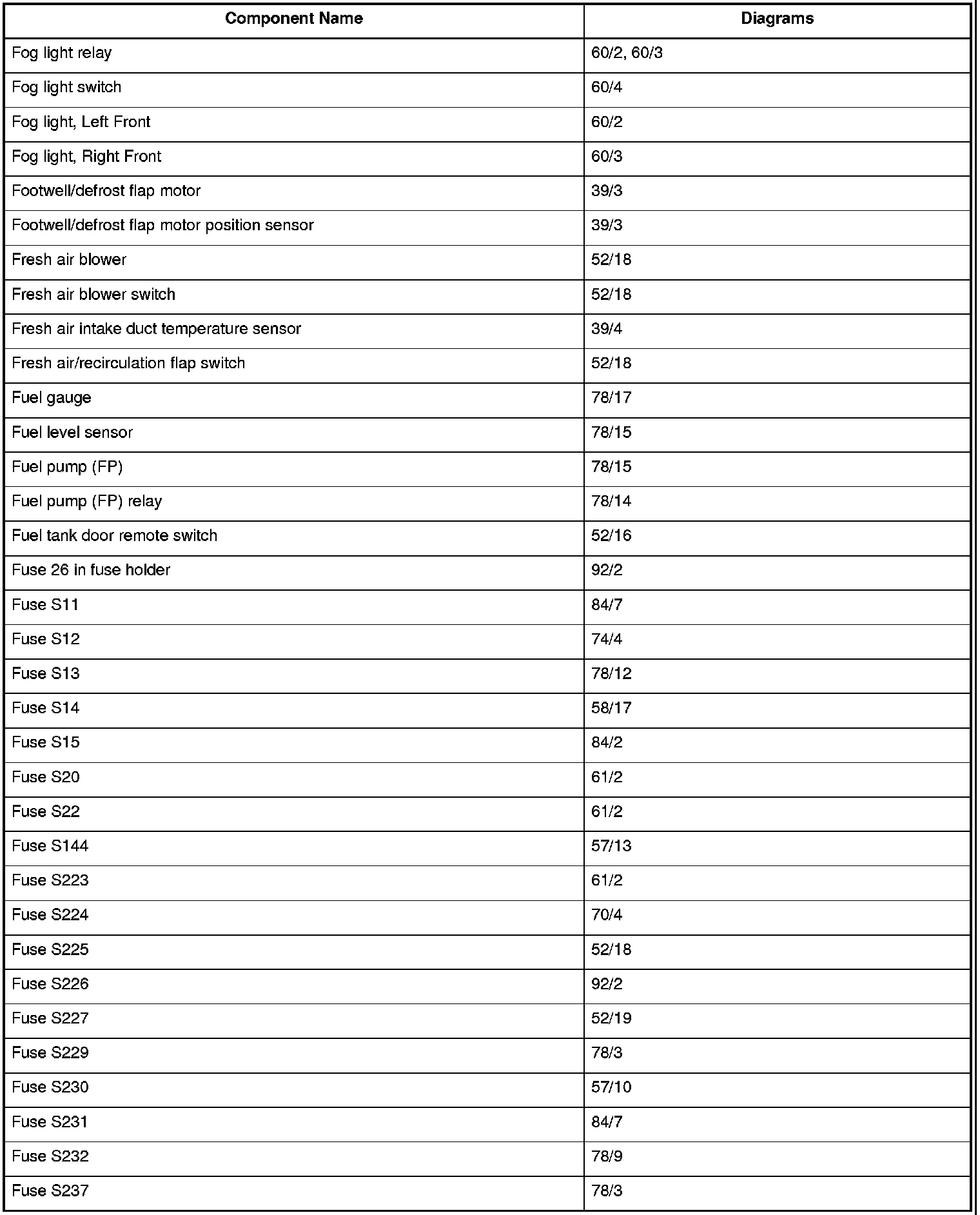

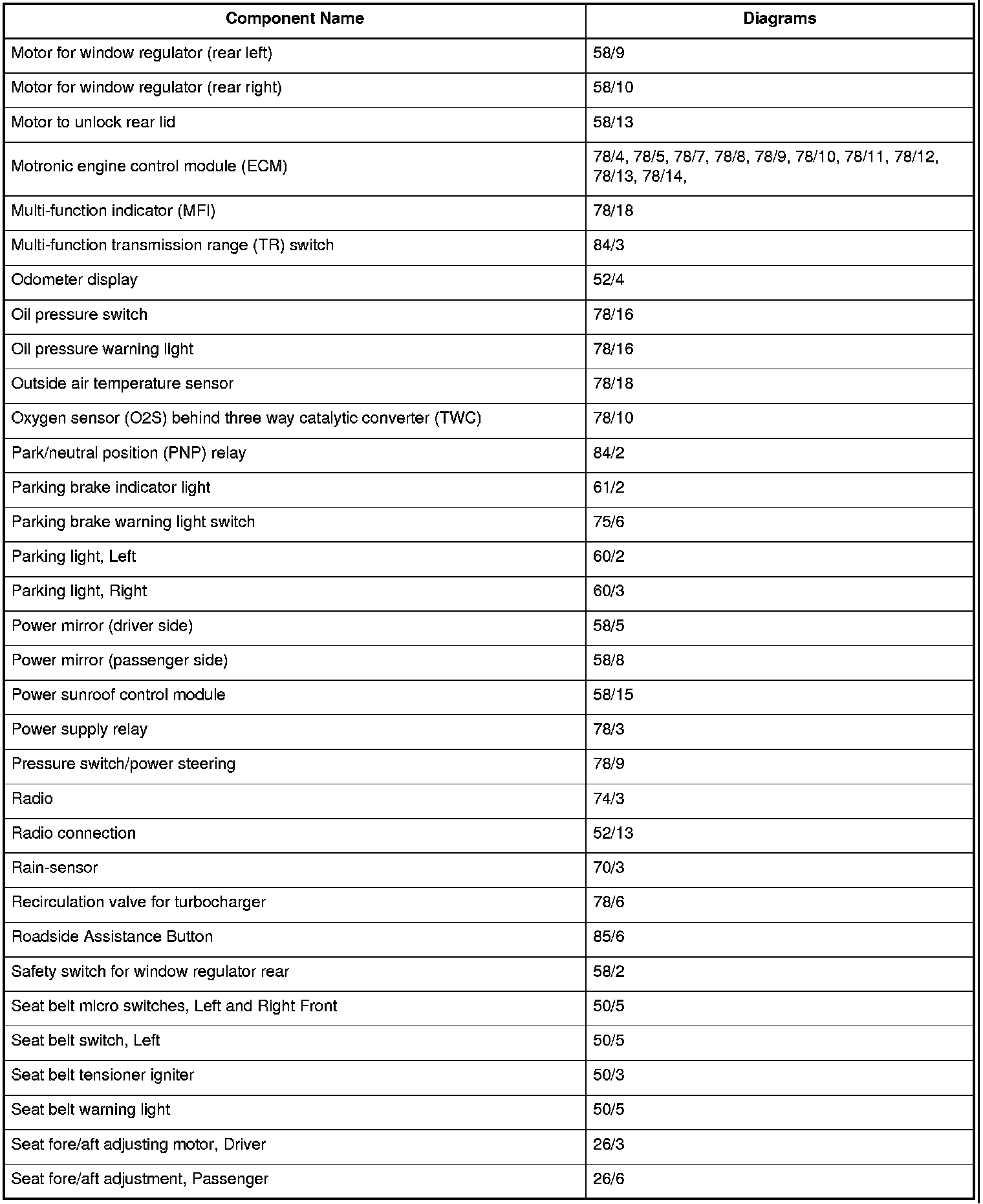

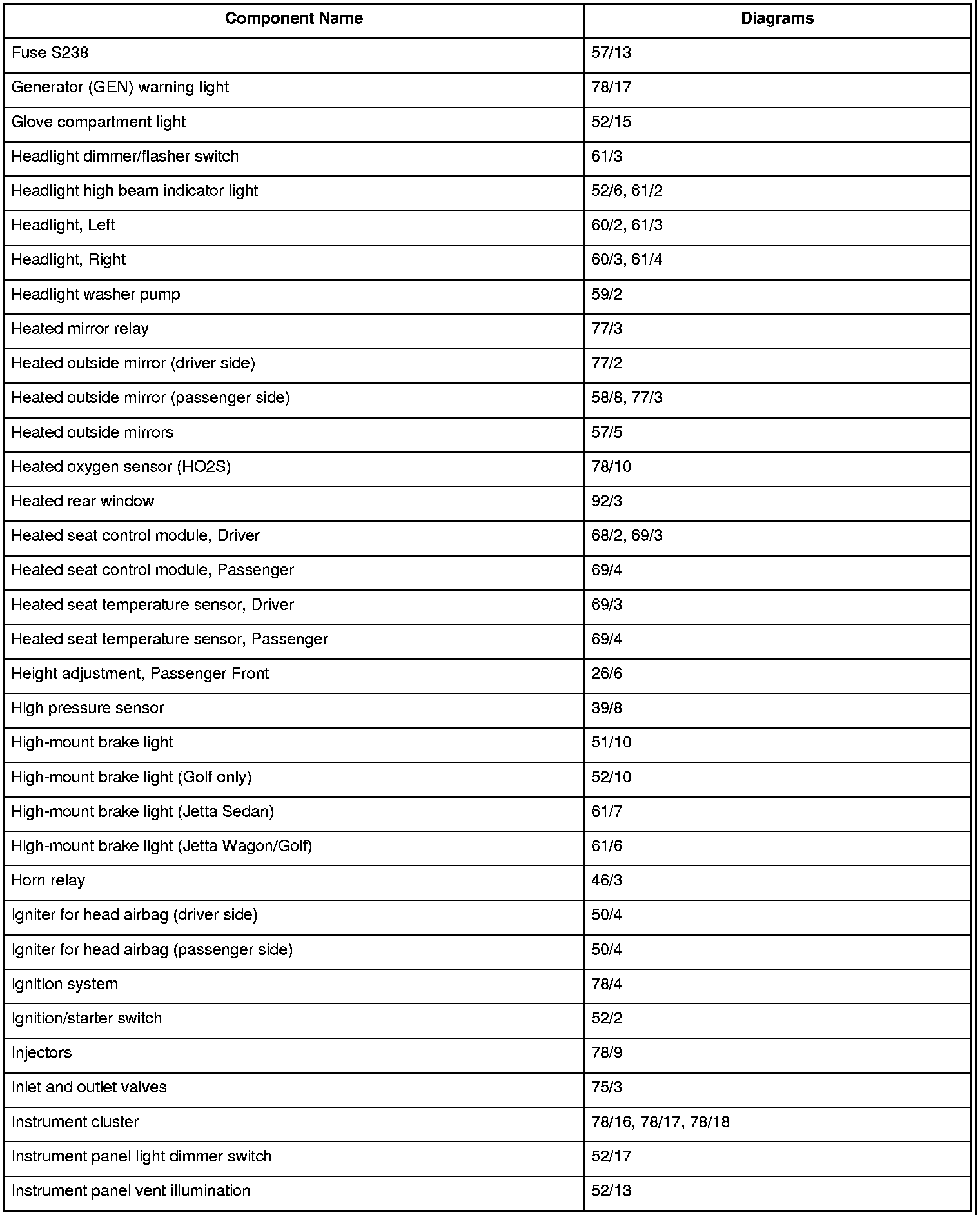

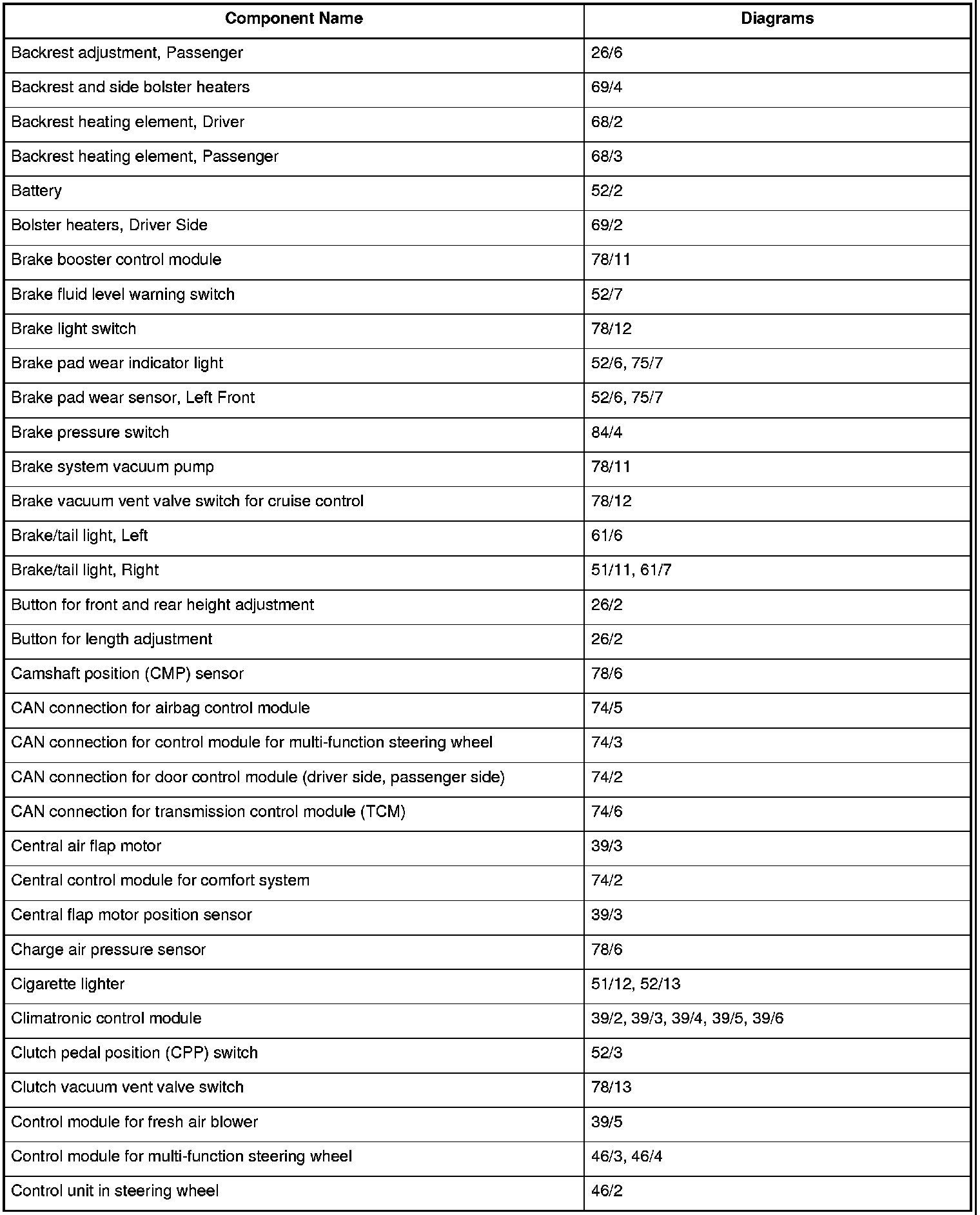

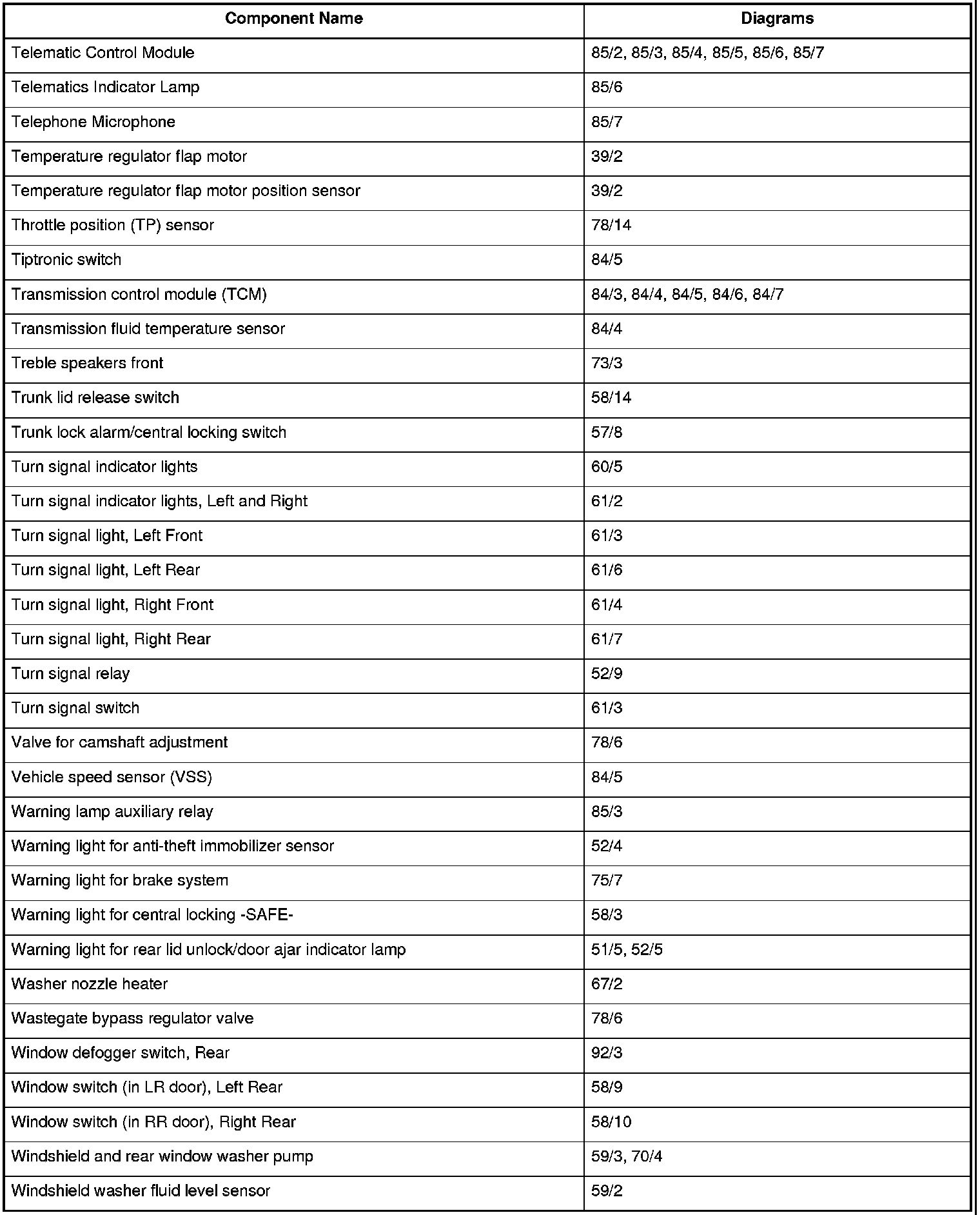

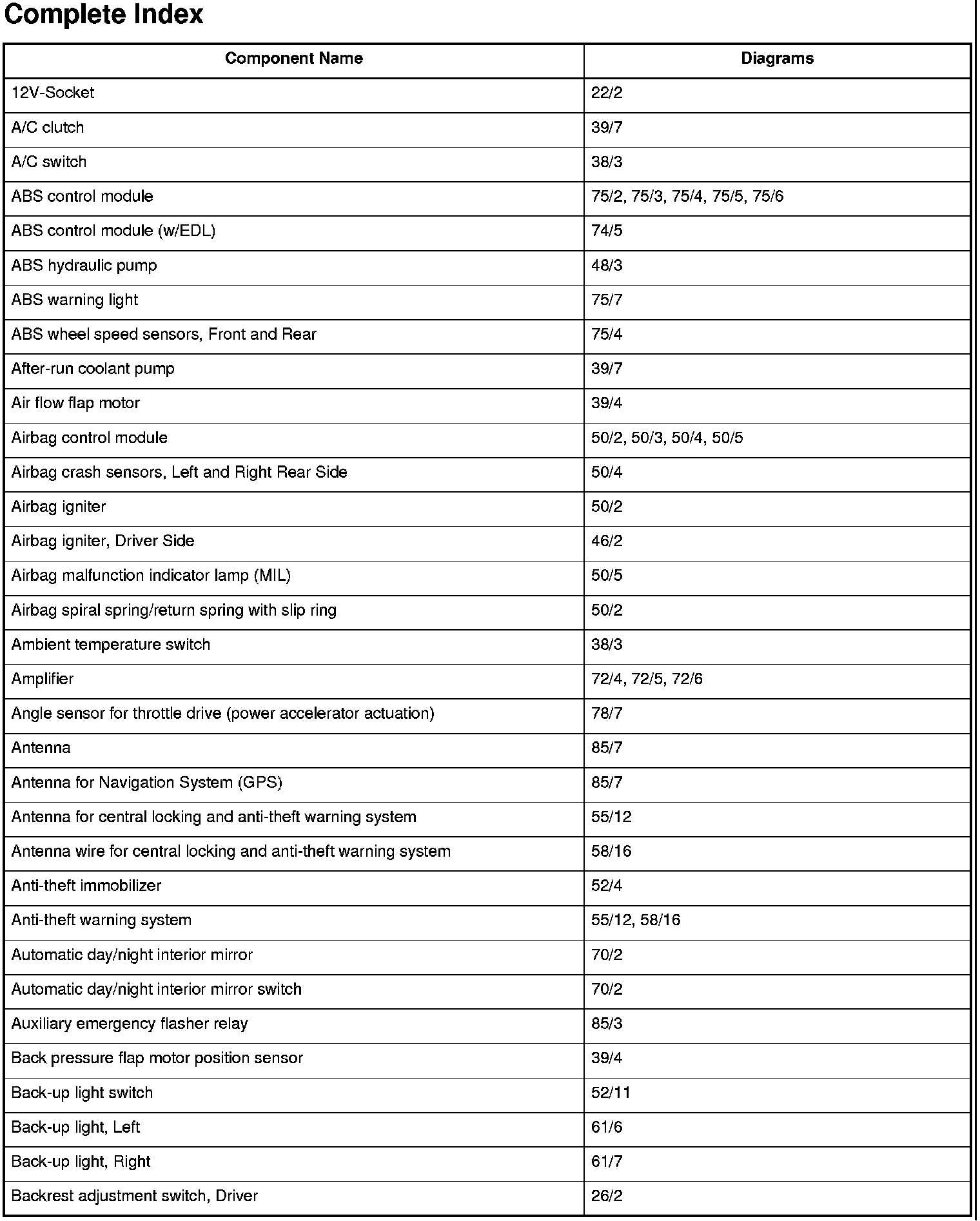

Complete Index







12 V - Ba:





Ba - Co:





Co - (EVAP):





Fo - Fu:





Fu - In:





In - Mo:





Mo - Se:





Se - Te:





Te - Wi:





Wi - Wi:
