Home >> Volkswagen >> 2004 >> Jetta Sedan (9M2) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Diagrams >> Components >> Motronic Engine Control Module (ECM) Power Supply Relay

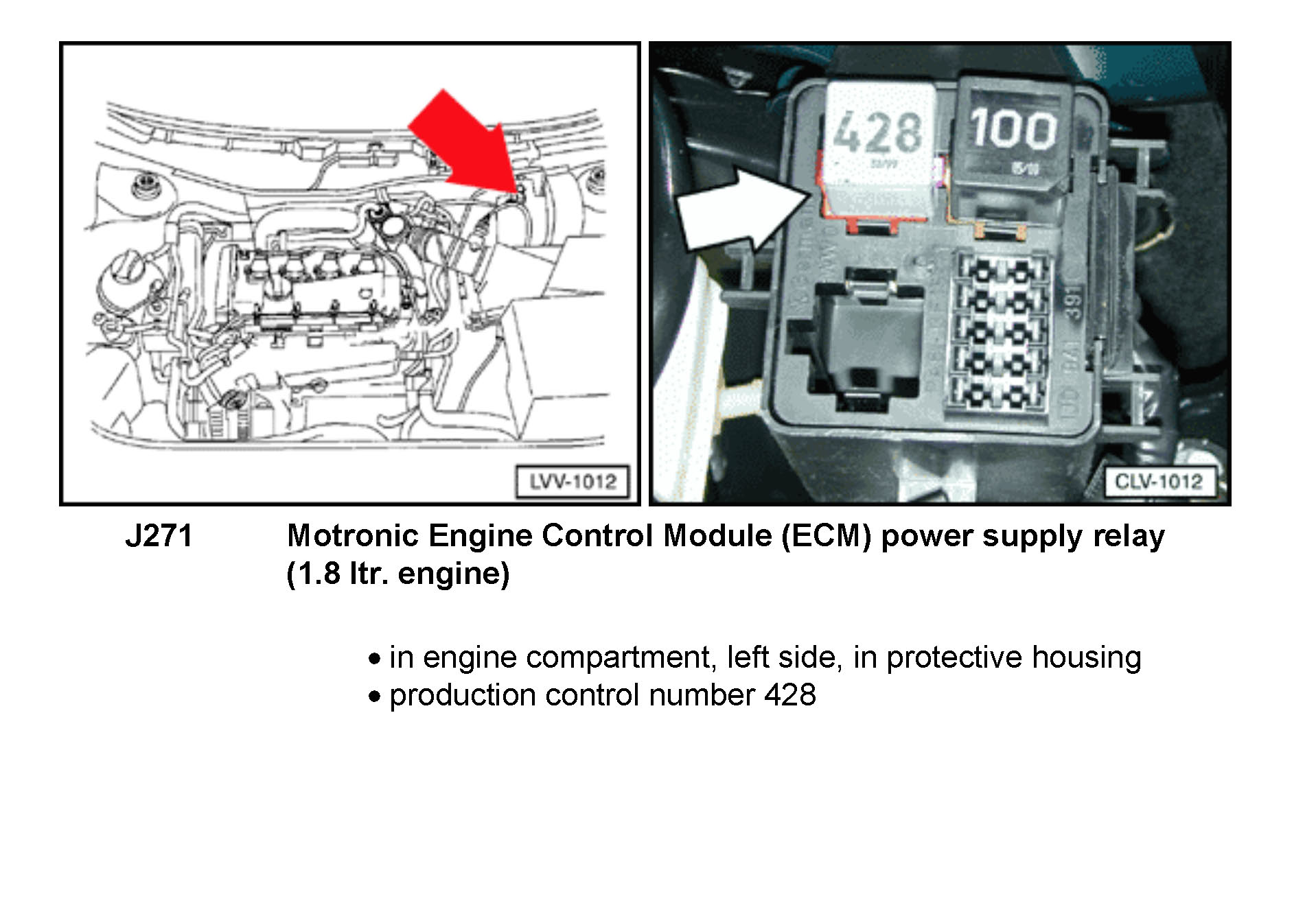

Motronic Engine Control Module (ECM) Power Supply Relay












J271 - Motronic Engine Control Module (ECM) power supply relay (1.8 ltr. engine)
