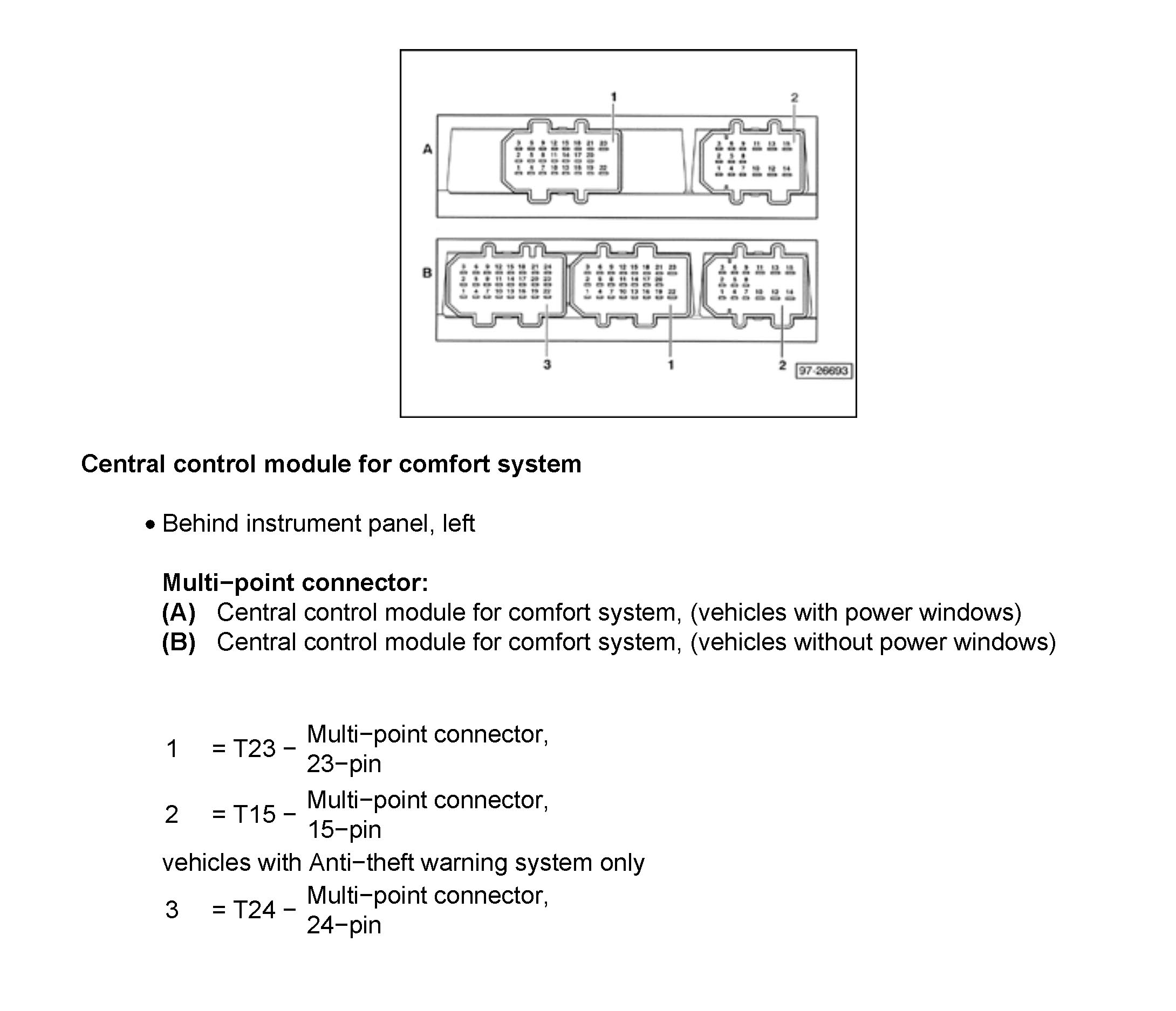

Central Control Module For Comfort System Connectors












Central control module for comfort system
