Wheel Housing Trim, Removing and Installing (Golf Wagon/Jetta Wagon)

Wheel Housing Trim, Removing And Installing (Golf Wagon/Jetta Wagon)

NOTE:
- Removal and installation is described for right side of vehicle. same instructions apply for removal and installation for left-hand side.

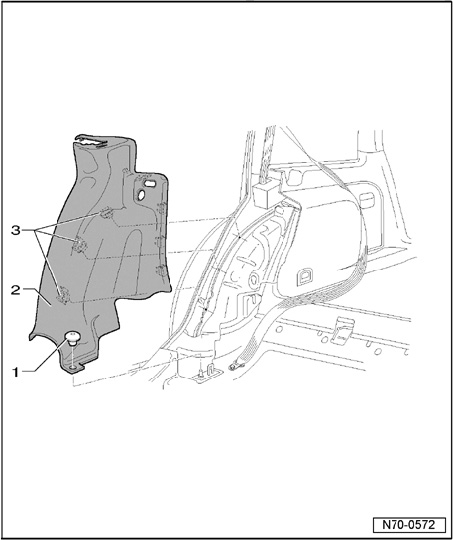

- For better depiction of trim, backrests are not shown in illustration.

Removing
- Fold seat cushion forward.
- Remove press button - 1 -.







- Loosen trim - 2 - in area of clips - 3 - and remove.







Installing
- Installation is reverse of removal.
