Upper C-Pillar Trim, Assembly Overview (Golf Wagon/Jetta Wagon With Side Curtain Protection)

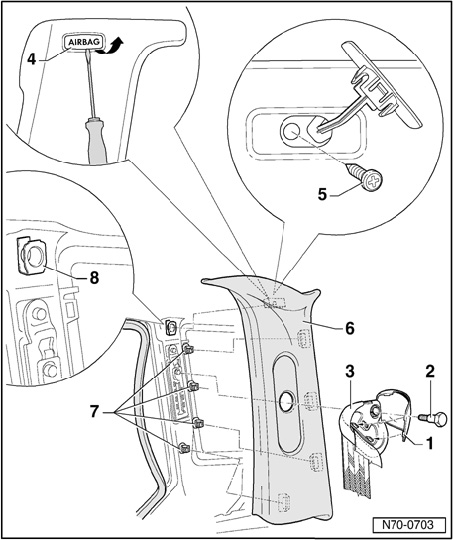

Upper C-pillar Trim, Assembly Overview (Golf Wagon/Jetta Wagon With Side Curtain Protection 05.01 -->)







1 - Cover cap
2 - Bolt
- 40 Nm

3 - Belt relay
4 - Emblem, airbag
5 - Bolt
- 2 Nm

6 - Upper C-pillar trim
7 - Clips
8 - Clip
