Micro-Switch, Removing and Installing

Micro-switch, Removing And Installing

Removing
- Removing and installing lock cylinder housing -2-.

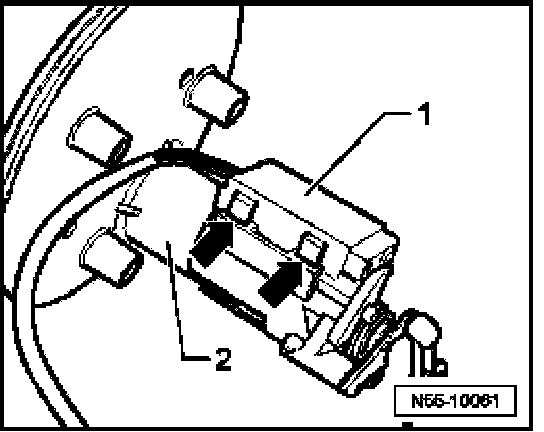

- Release catches at micro-switch -1-.







To do so, press catches downward -arrow-.

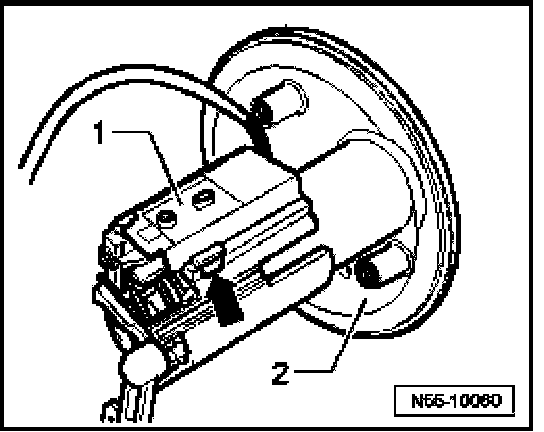

- Disengage catches -arrows- of micro-switch -1- from lock cylinder housing -2-.







- Remove micro-switch -1- from lock cylinder -2-.

Installing

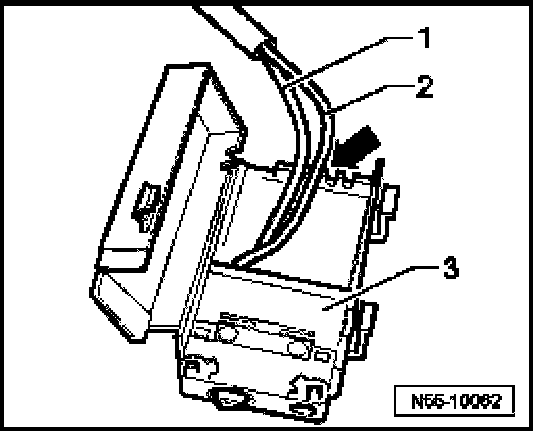

- Secure wires -1- and -2- in retaining profile -arrow- of micro-switch -3-.







- Lock catches -arrows- of micro-switch -1- into lock cylinder housing -2-.

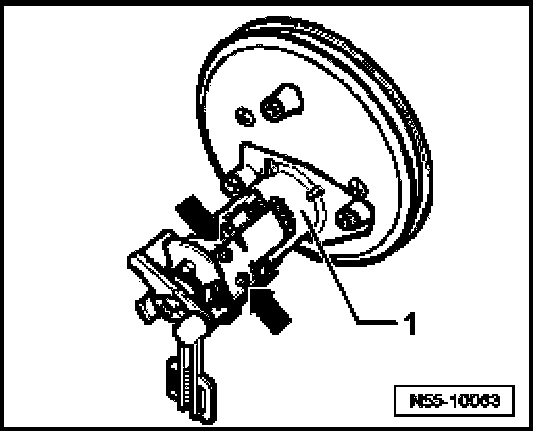

- Make sure that micro-switch is positioned with securing tabs -arrows- on lock cylinder housing -1-.







- Before locking micro-switch, if must be checked that wires are lying correctly in retaining profile of micro-switch and lock cylinder. If this is not case and micro-switch is locked, wires/micro-switch may be damaged.
- Lock micro-switch -1- with lock cylinder housing -2-. Make sure that catch -arrow- is locks correctly.







- Install lock cylinder housing.
