Lock Cylinder Housing, Removing and Installing

Lock Cylinder Housing, Removing And Installing

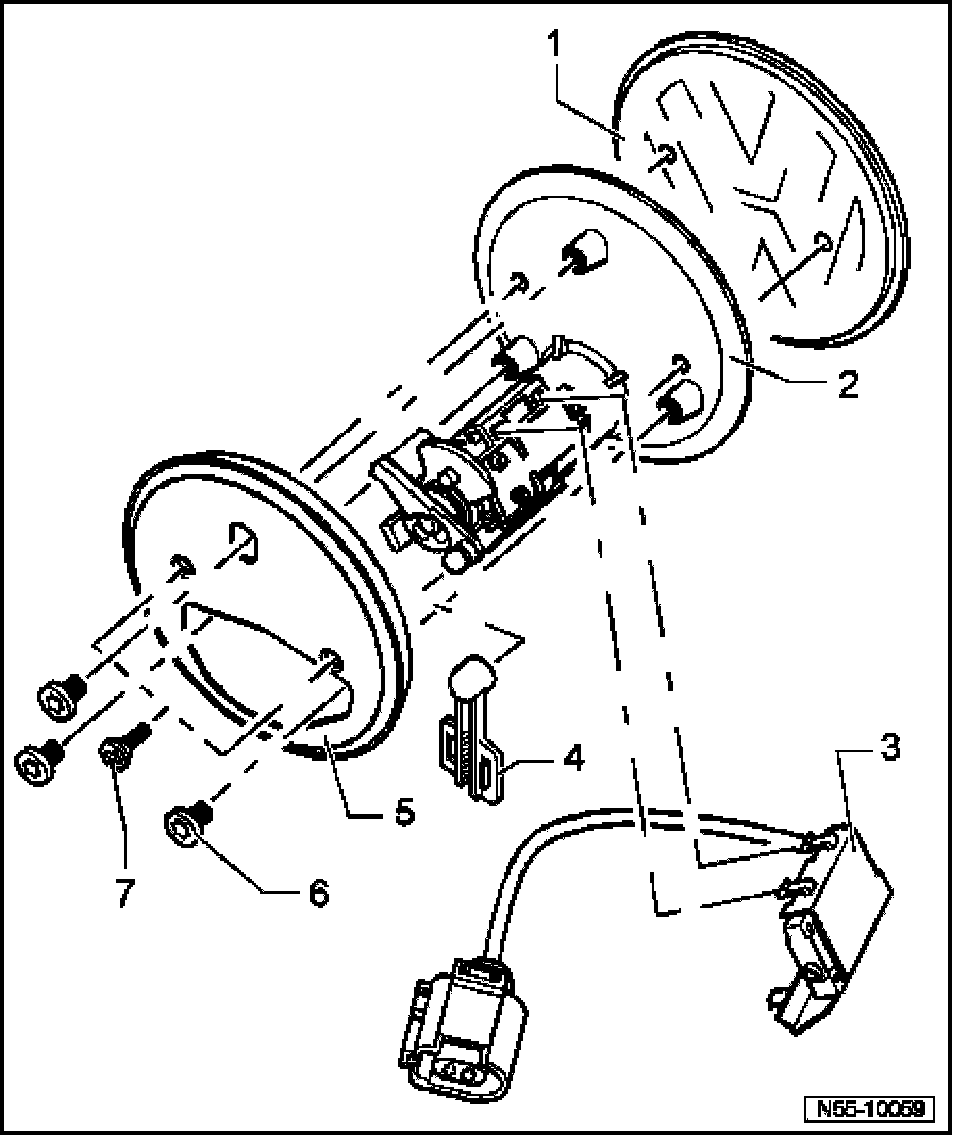

1. VW-symbol
- consisting of emblem carrier and message
- To install VW symbol, remove protective foil and adhere to lock cylinder housing using two-sided adhesive tape
- also bolted to lock cylinder housing Item -7-
2. Lock cylinder housing
- Removing
- Remove rear lid trim
- Disconnect connector for micro-switch/wiring harness.
- Remove operating rod at actuator lever.
- Remove screws Item -6- (3x).
- Remove lock cylinder housing with VW symbol from rear lid.
- Installing:
- Installation is performed in reverse order of removal.
3. Micro-switch
- For vehicles with central locking system
- For vehicles without central locking system
- Allocation, See Original parts distributor
4. Linkage clip
- To remove operating rod, disconnect linkage clip and pull open
5. Seal
- Attached in area of lock cylinder housing
6. Bolt
- Qty. 3
- 4 Nm
7. Bolt
- Qty. 2
- 0.3 Nm
