Jetta Wagon

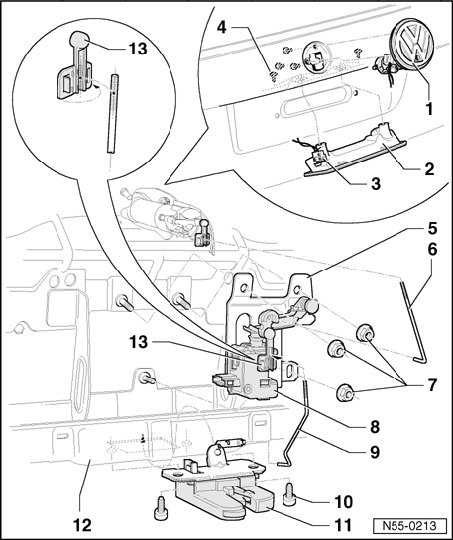

Rear Lid Lock, Removing And Installing







1 - Lock cylinder housing
2 - Handle
- Removing
- Remove bolt, disconnect connector for switch and remove handle from lid.

3 - Tailgate/trunk lid release switch E165
4 - Bolt
- 7 Nm

5 - Carrier plate
6 - Operating rod
7 - Nut
- 7 Nm

8 - Tailgate/trunk lid release motor V139
- Removing.
- Disconnect connector from motor.
- Unclip operating rod from lock cylinder housing.
- Unclip operating rod from motor for rear lid release.
- Remove hex nuts and remove carrier plate.
- Remove motor for rear lid release from carrier plate.

9 - Operating rod
10 - Bolt
- 22 Nm

11 - Lock
- Removing
- Remove lid trim.
- Disconnect connector from lock.

12 - Rear lid
13 - Actuator lever with linkage clip
