Left Front Level Control System Sensor G78 on Front Axle

Left front level control system sensor G78 on front axle
General notes; Refer to Ride Height Sensor, Suspension Control, Description and Operation





Headlight basic settings
Refer to Lighting and Horns

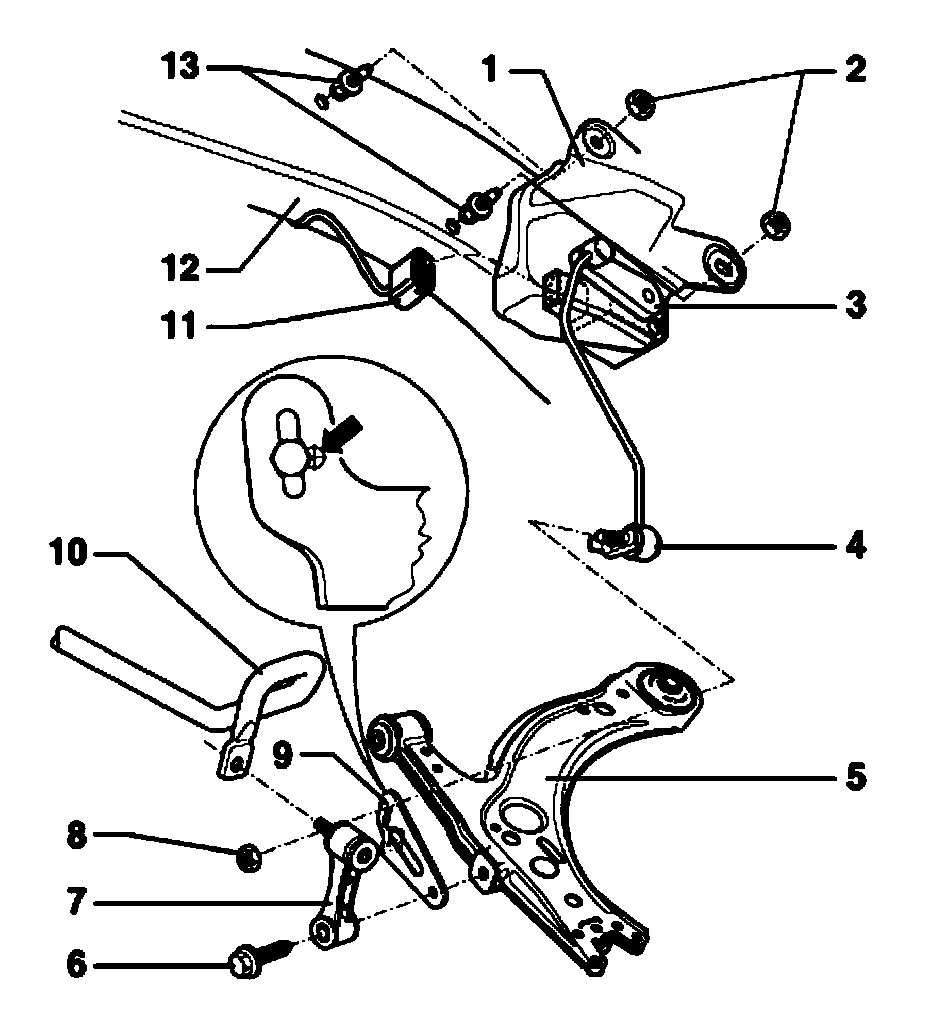

1. Bracket
2. Hex nut, 6 Nm
3. Level control system sensor G78
^ Checked electrically through On Board Diagnostic (OBD)
^ When complaints are received - Basic setting in "Guided fault finding" with the VAS 5051cr VAS 5052.

Note: To do so, you must enter by using the " "Go to button" "Functions/Component selection".

4. Connecting Left front level control system sensor G78
^ Fasten connecting rod within range of the mark - arrow - to bracket - Item - 9 -.
5. Control arm
6. Hex head bolt
^ 15 Nm plus an additional 90° (1/4 turn)
^ Always replace
7. Connecting Link
^ Different versions
^ Application, Refer to Parts Supplier
8. Hex nut, 6 Nm
9. Bracket
10. Stabilizer bar
11. Connector
12. Longitudinal member
13. Pop rivet screw
Draw in pop rivet using Pop Rivet Tongs V.A.G. 1765 B .
