Connecting and Selecting Function

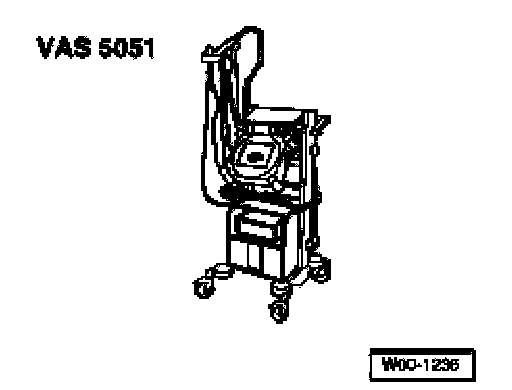

VAS5051 Vehicle Diagnostic, Testing and Information System, connecting and selecting functions

Special Tools and Equipment





- VAS 5051 tester
- VAS5051/1 or VAS5051/3 diagnostic cable

WARNING:
- Test equipment must always be secured on the rear seat during a road test.
- Drivers must NEVER operate these tools while driving.





- Remove cover -1- in direction of arrow.
- Connect connector of VAS5051/1 or VAS5051/3 diagnostic cable to Data Link Connector (DLC).





- Switch on tester (arrow).
The tester is ready for operation when it displays the image (photo) of a vehicle.
- Switch on ignition.
- Touch the field / the button on the screen: Guided Fault Finding.
- Select one after another:
- Brand
- Model
- Model year
- Version
- Engine identification
- Confirm the entered data.

Note: Wait until tester has checked all control modules installed in the vehicle.

- Press the Go To button and select the "Function/component selection" function.
- Select "Suspension" on the display
- Select "Brake system" on the display
- Select the displayed "On Board Diagnostic (OBD) capable system..." on the display
- Select the displayed "Anti-lock Brake System (ABS)..." on the display
- Select the displayed "Function" on the display.

Note: Now, all possible functions of Anti-lock Brake System (ABS) installed in vehicle are displayed.

- Select the desired function on display.
