Threads In Longitudinal Member, Servicing

Threads in longitudinal member, servicing
It is possible to service the threads of the welded nuts in the longitudinal member depending on certain conditions.
^ Servicing work may only be carried out once per thread.
^ If servicing is necessary after this, the nuts must be replaced.
^ Observe the operating instructions of the VAS repair kit.

Caution: When drilling, it is essential that eye protection be worn!

^ Have the thread repair checked by the responsible foreman or next person in charge.
^ Correct any damage to the underbody sealant layer
^ Only use the VAS repair kit listed in the table for service work

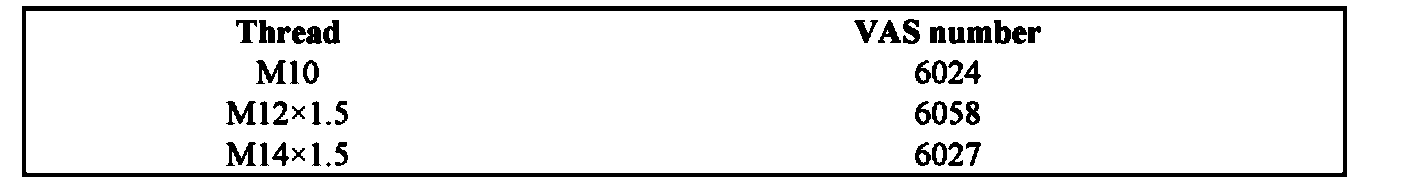

VAS thread repair kit
