CD Changer Retainer, Removing and Installing




CD Changer Retainer, Removing And Installing

Removing

- Remove CD changer.

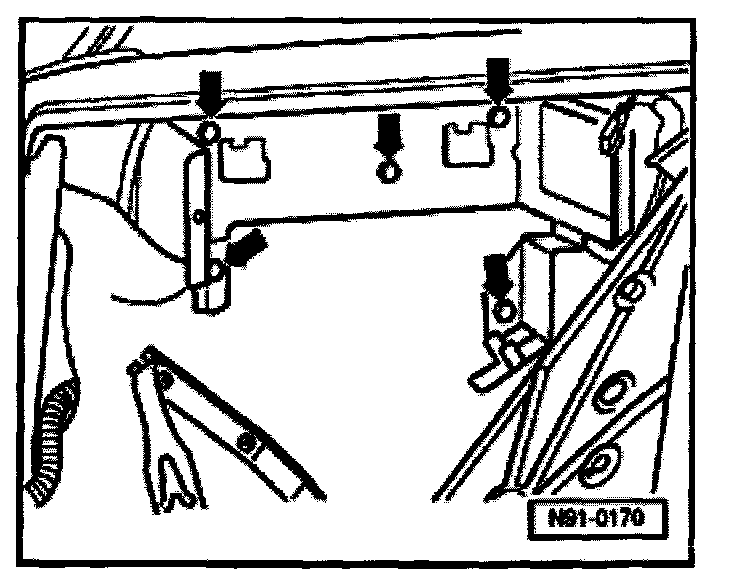

- Remove bolts -arrows- and remove retainer.
Tightening torque: 5 Nm (44 in. lb.)

Installing

- Install in reverse order of removal.
