Home >> Volkswagen >> 2004 >> GTI (1J1) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Brakes and Traction Control >> ABS - ITT Mark 60 IE System >> VAG Codes >> DTC 01435

DTC 01435

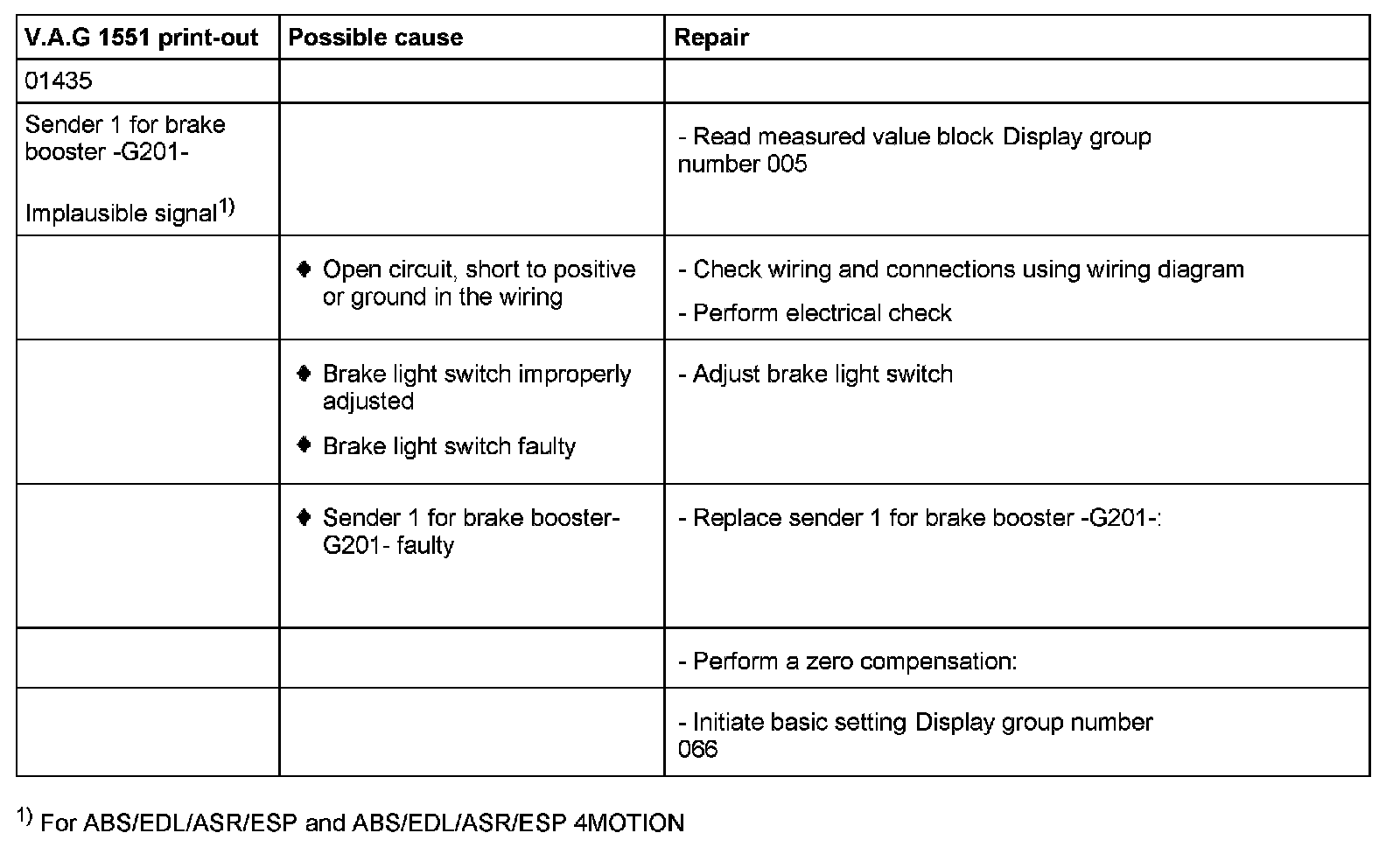

01423 Part 2 Of 3 / 01435 Part 1 Of 3:

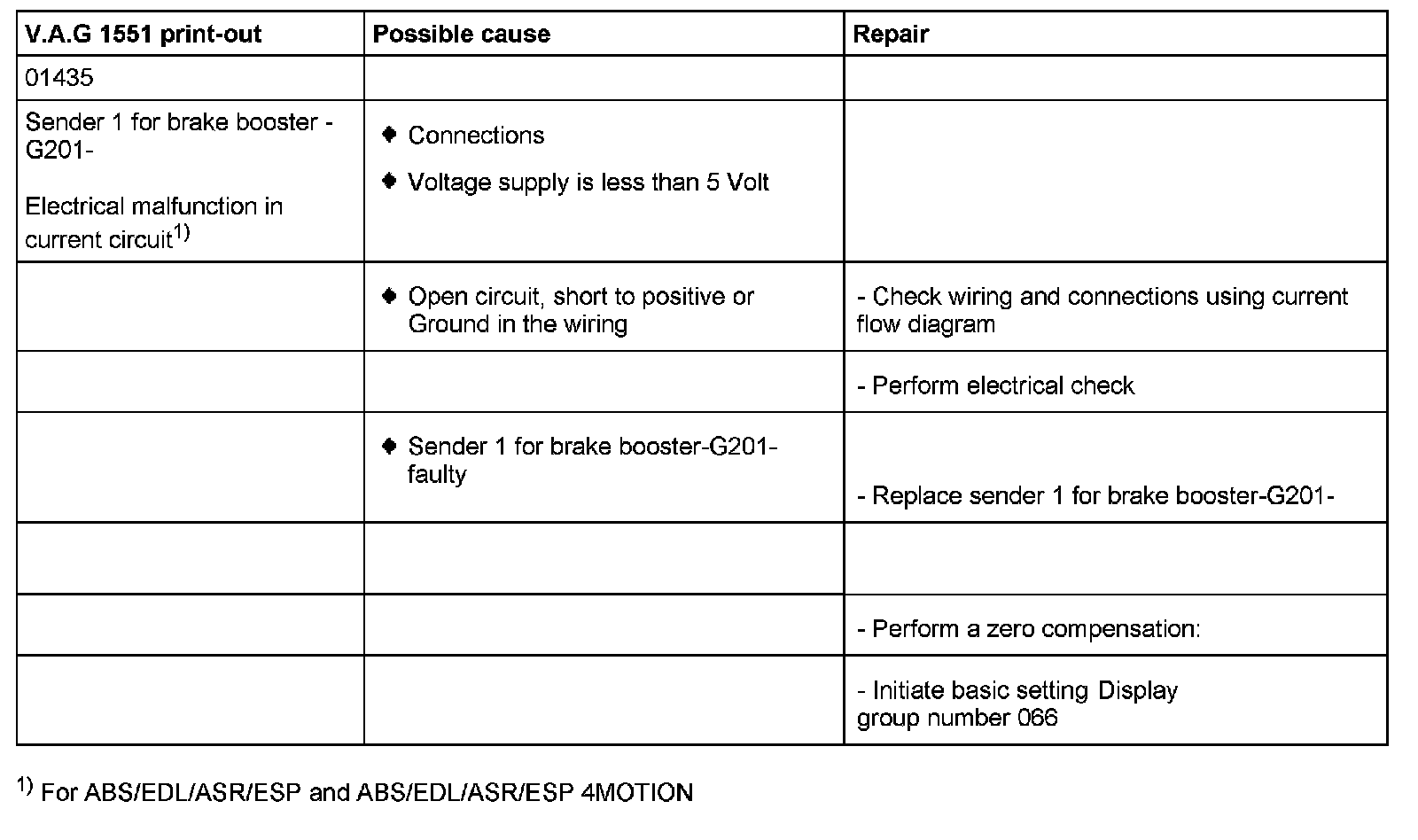

01435 Part 2 Of 3:




01435 Part 3 Of 3:





01435 Sender 1 for brake booster -G201- / No, or incorrect, basic setting/adaption
