Home >> Volkswagen >> 2004 >> GTI (1J1) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Brakes and Traction Control >> ABS - ITT Mark 60 IE System >> VAG Codes >> DTC 01276

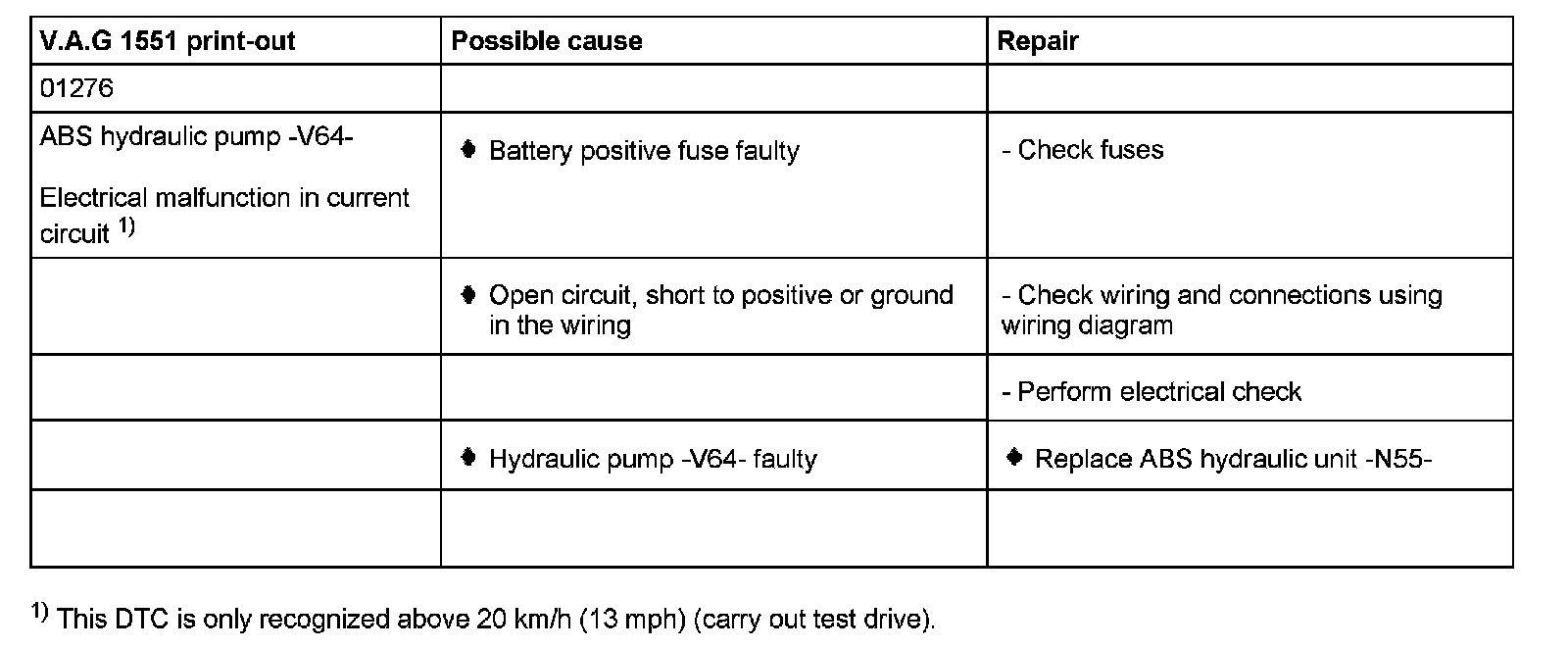

DTC 01276



Part 1 Of 2:




Part 2 Of 2:

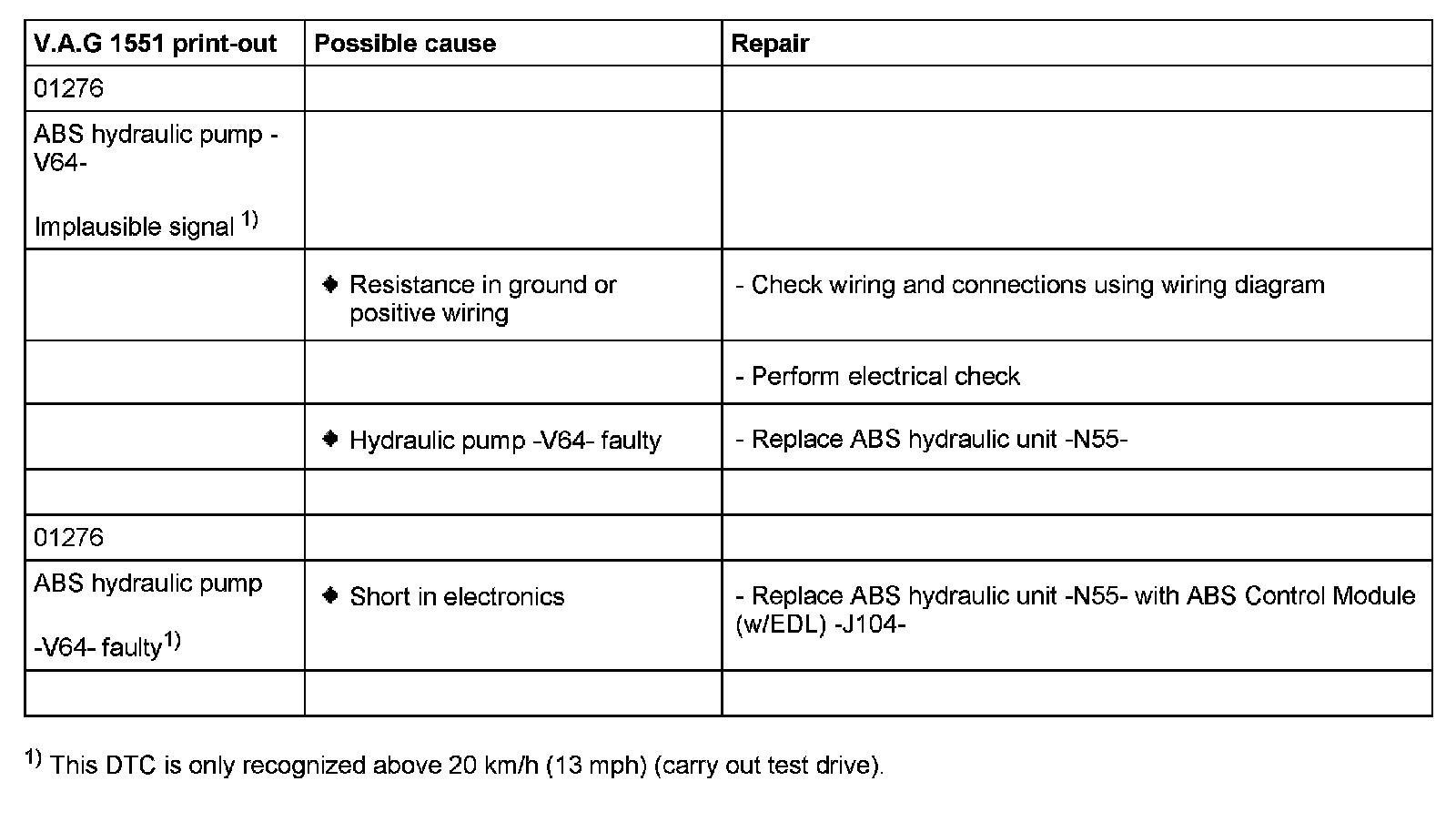

01276 ABS hydraulic pump - V64- / Implausible signal
