A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Brakes and Traction Control
>>
ABS - ITT Mark 60 IE System
>>
VAG Codes
>>
DTC 01130
DTC 01130

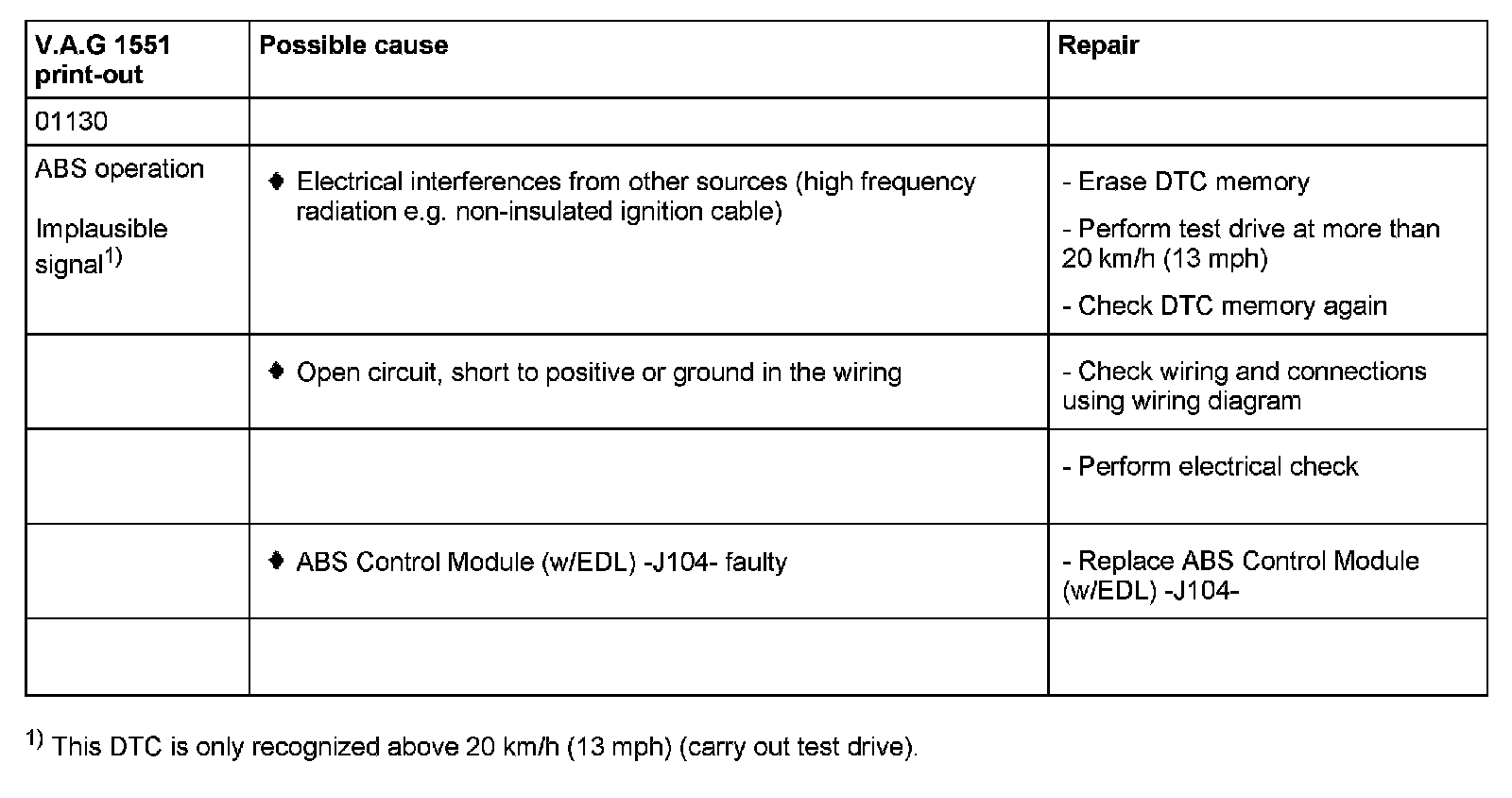

01130 ABS operation / Implausible signal
