DTC 00778

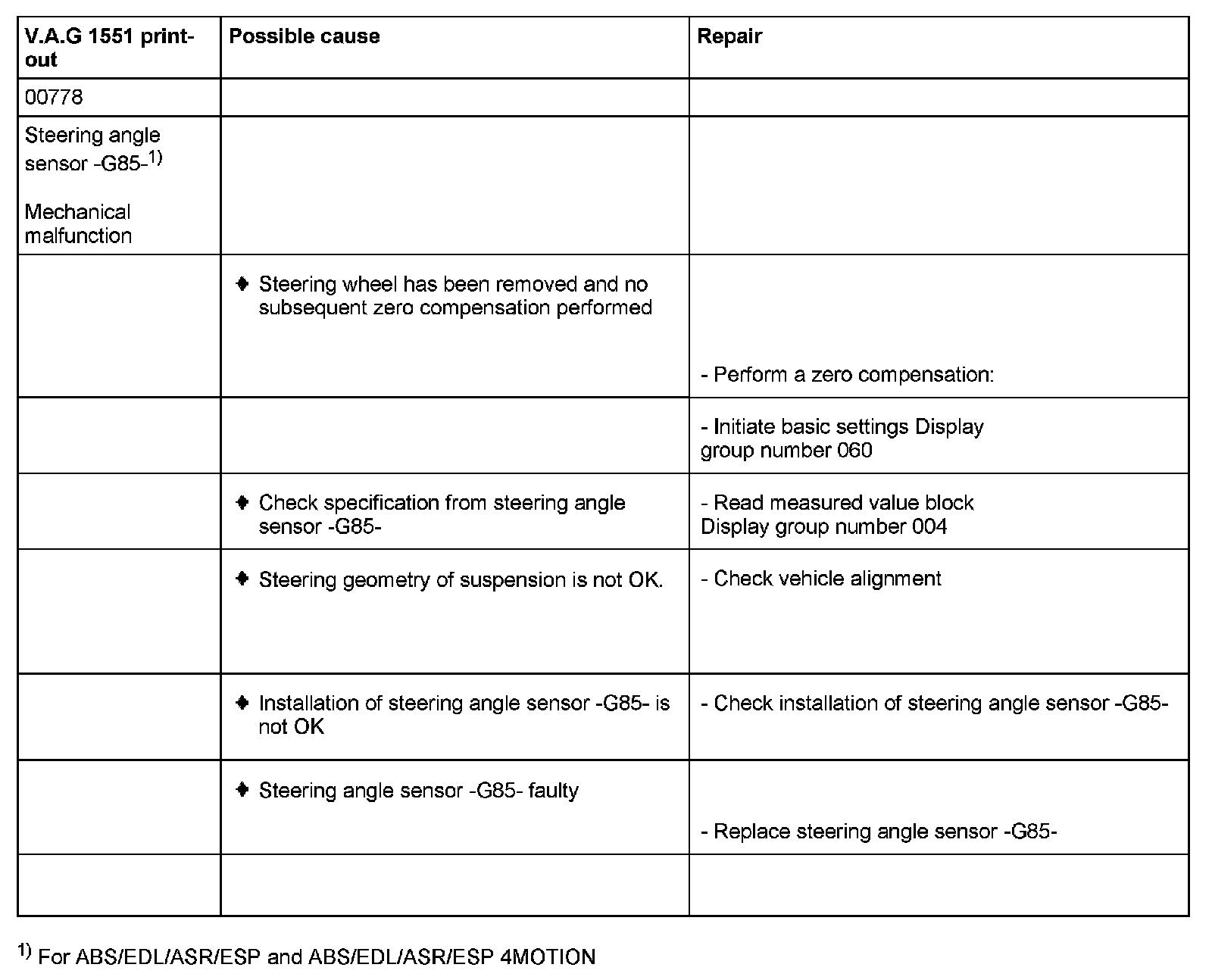

00778 Part 1 Of 4:

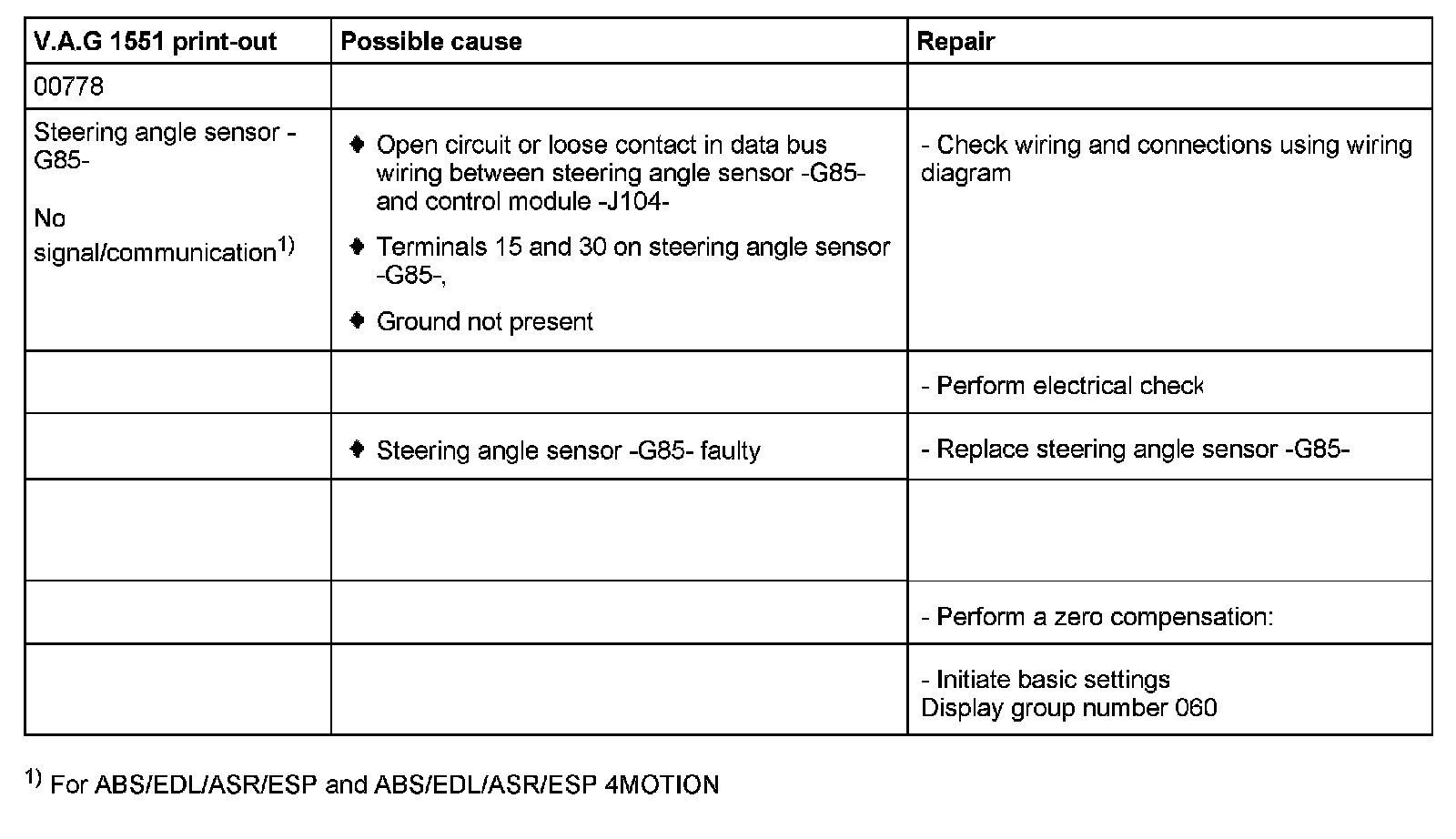

00778 Part 2 Of 4:

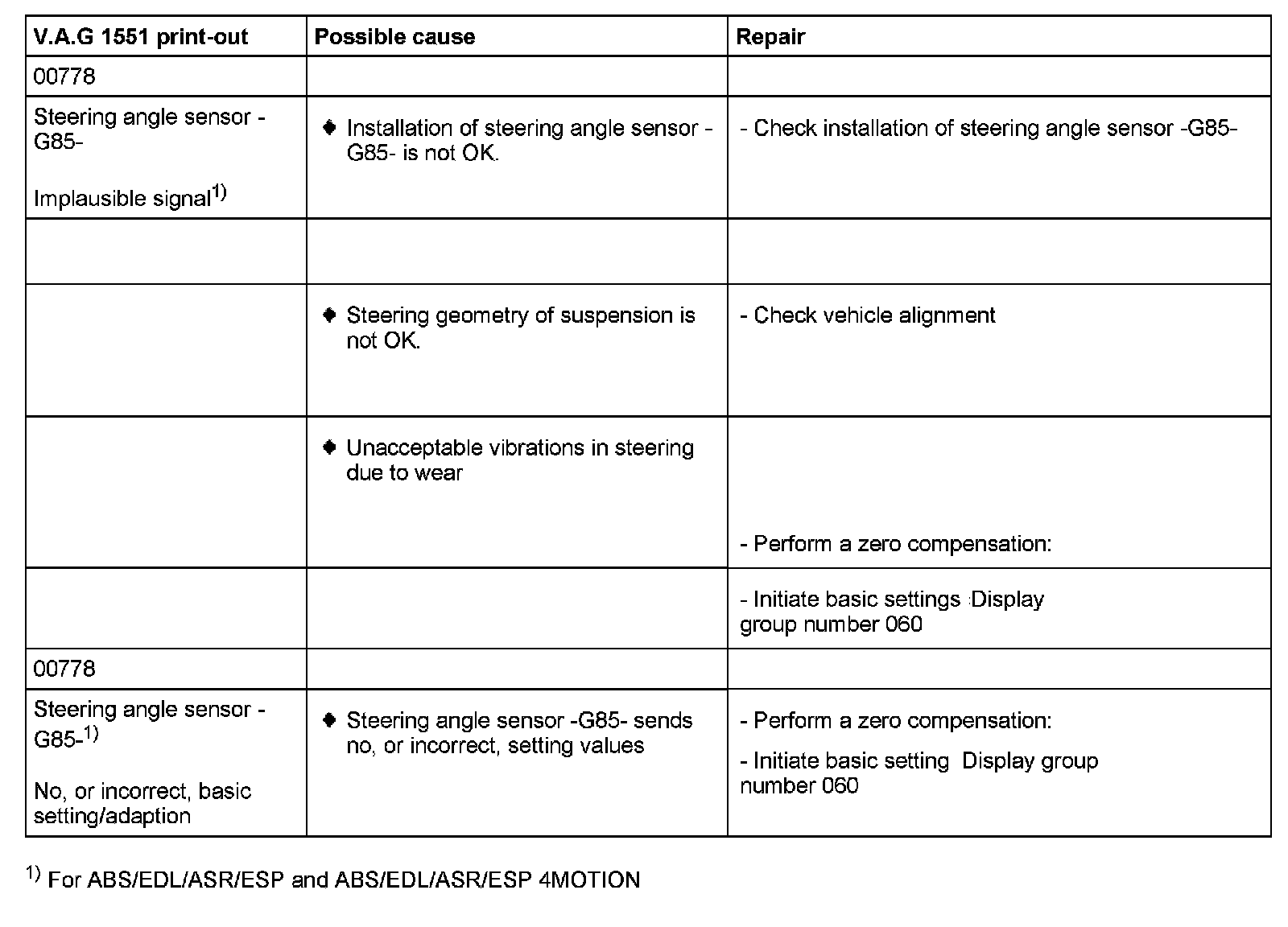

00778 Part 3 Of 4:

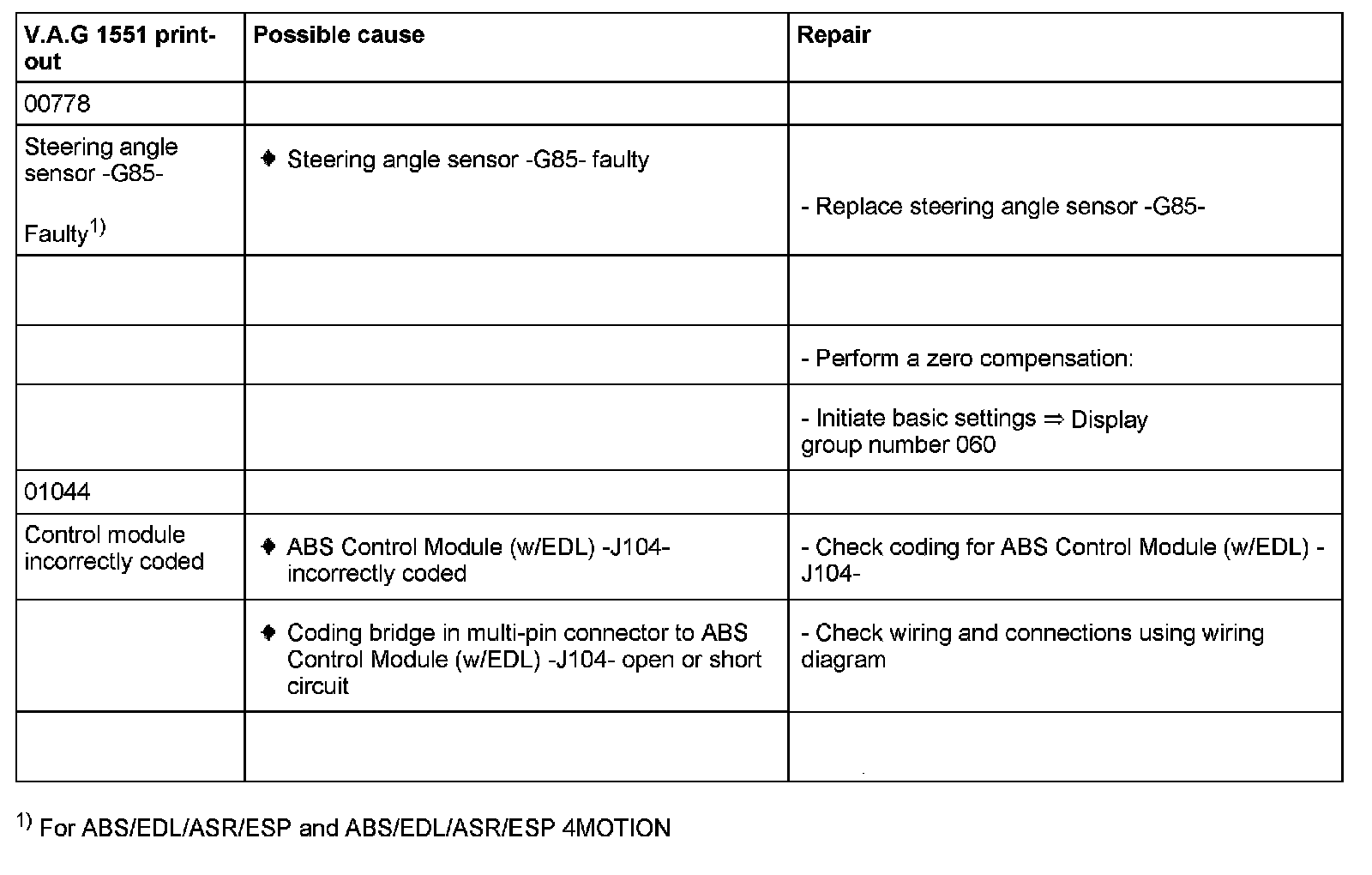

00778 Part 4 Of 4 / 01044 1 Of 1:





00778 Steering angle sensor -G85- / No signal/communication
