A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Brakes and Traction Control
>>
ABS - ITT Mark 60 IE System
>>
VAG Codes
>>
DTC 00526
DTC 00526
00526:

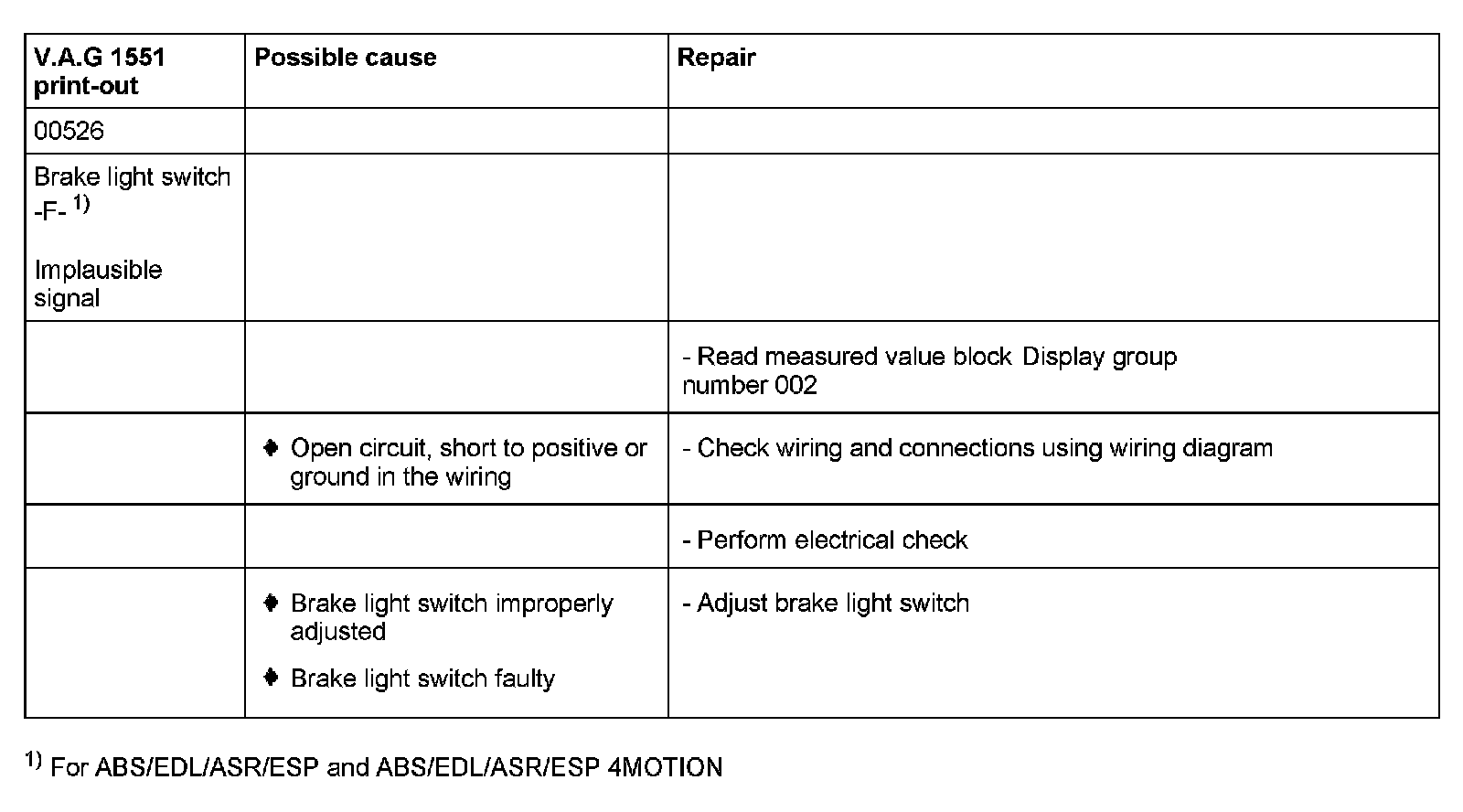

00526 Brake light switch -F- / Implausible signal
