Multi-Pin Connector With Contact Assignments

Multi-pin connector with contact assignments

Note: All contacts not listed are currently not assigned and must never be connected to other components!

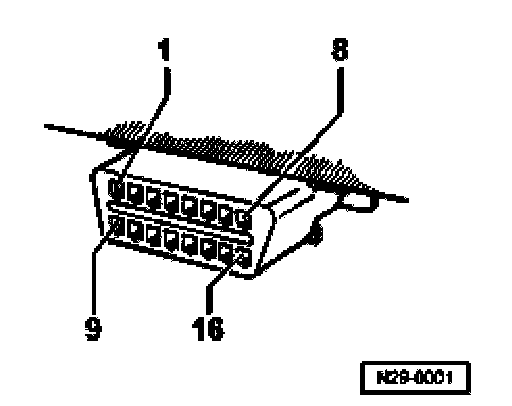

Contact assignment of connectors for voltage supply and self-diagnosis with the V.A.G 1551 scan tool
Contact 4 = Ground (terminal 31)
Contact 16 = Positive (terminal 30)
Contact 7 = K wire to contact 2 of multi-pin connector T47 of ABS control module (w/EDL) -J104

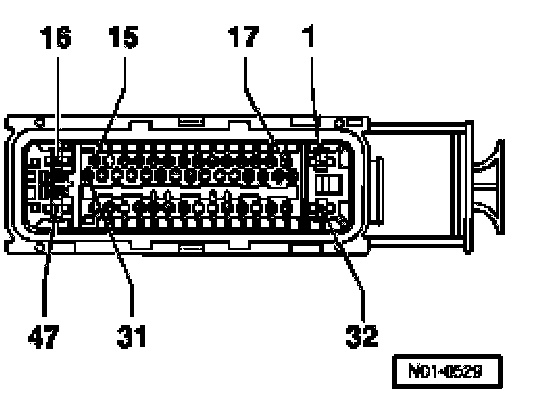

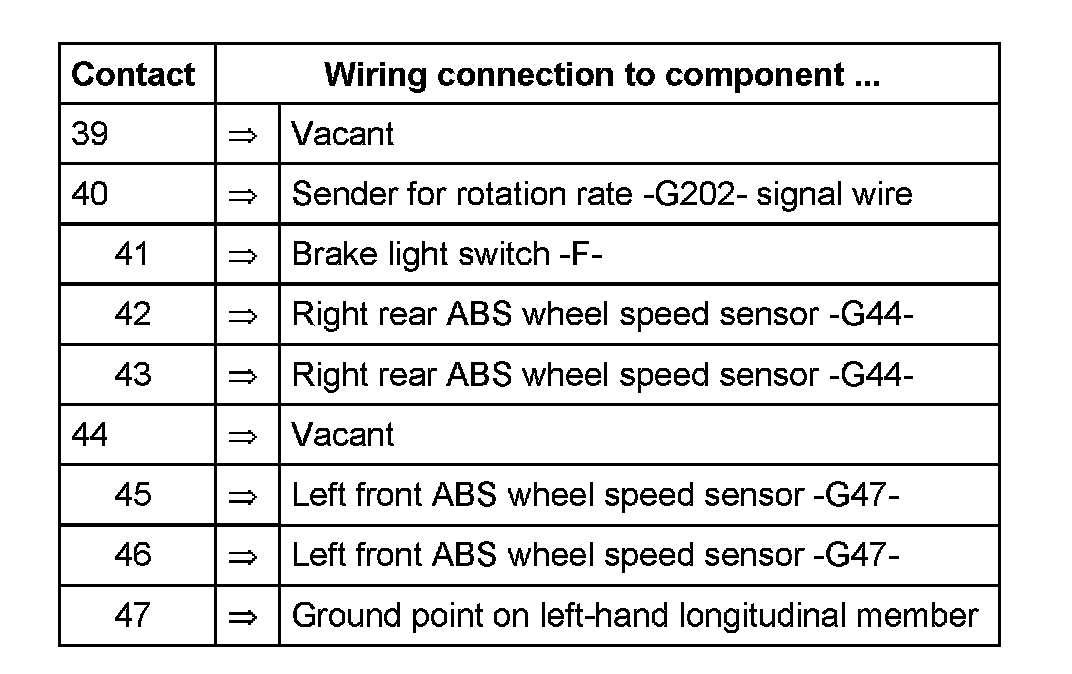

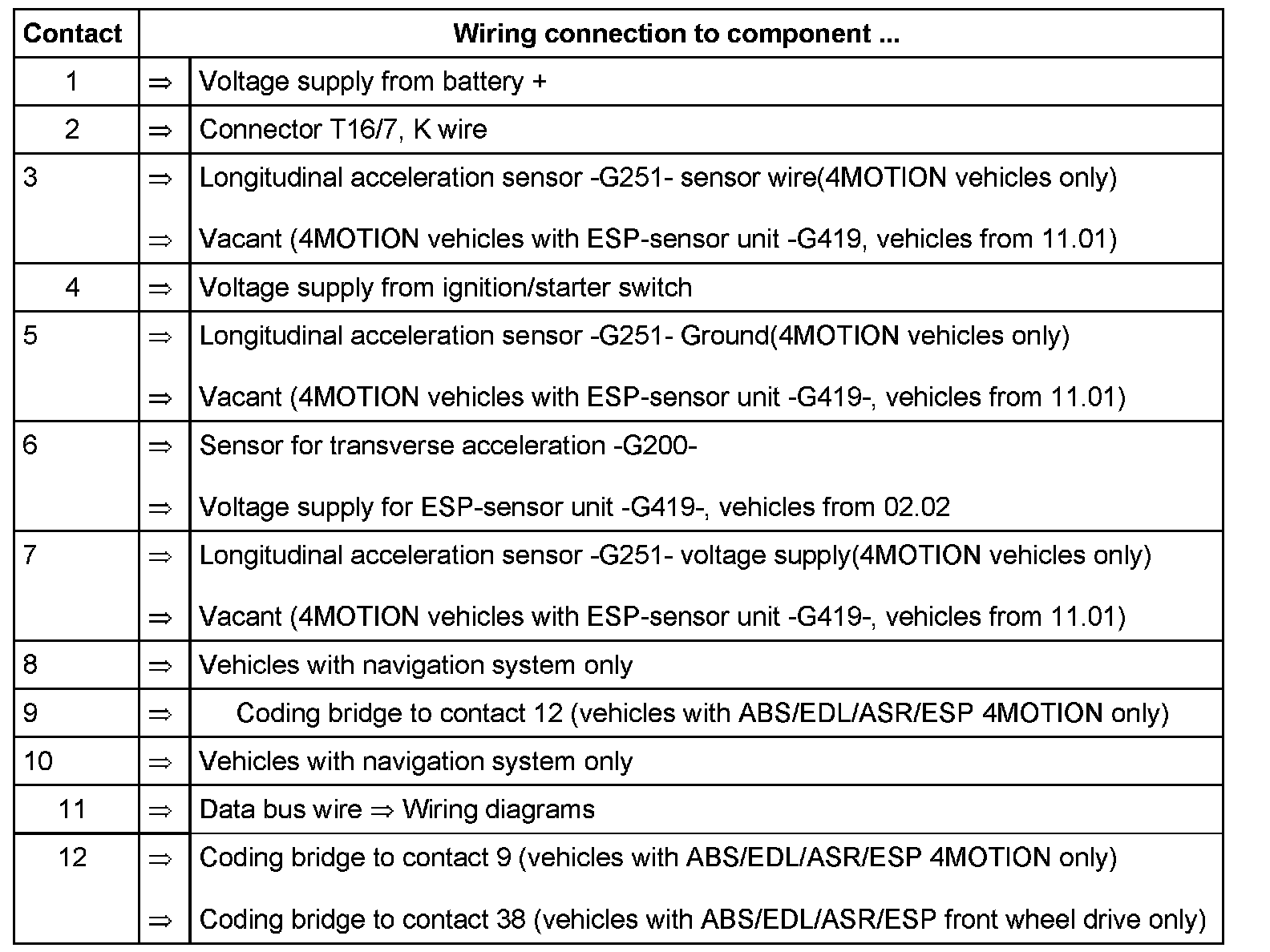

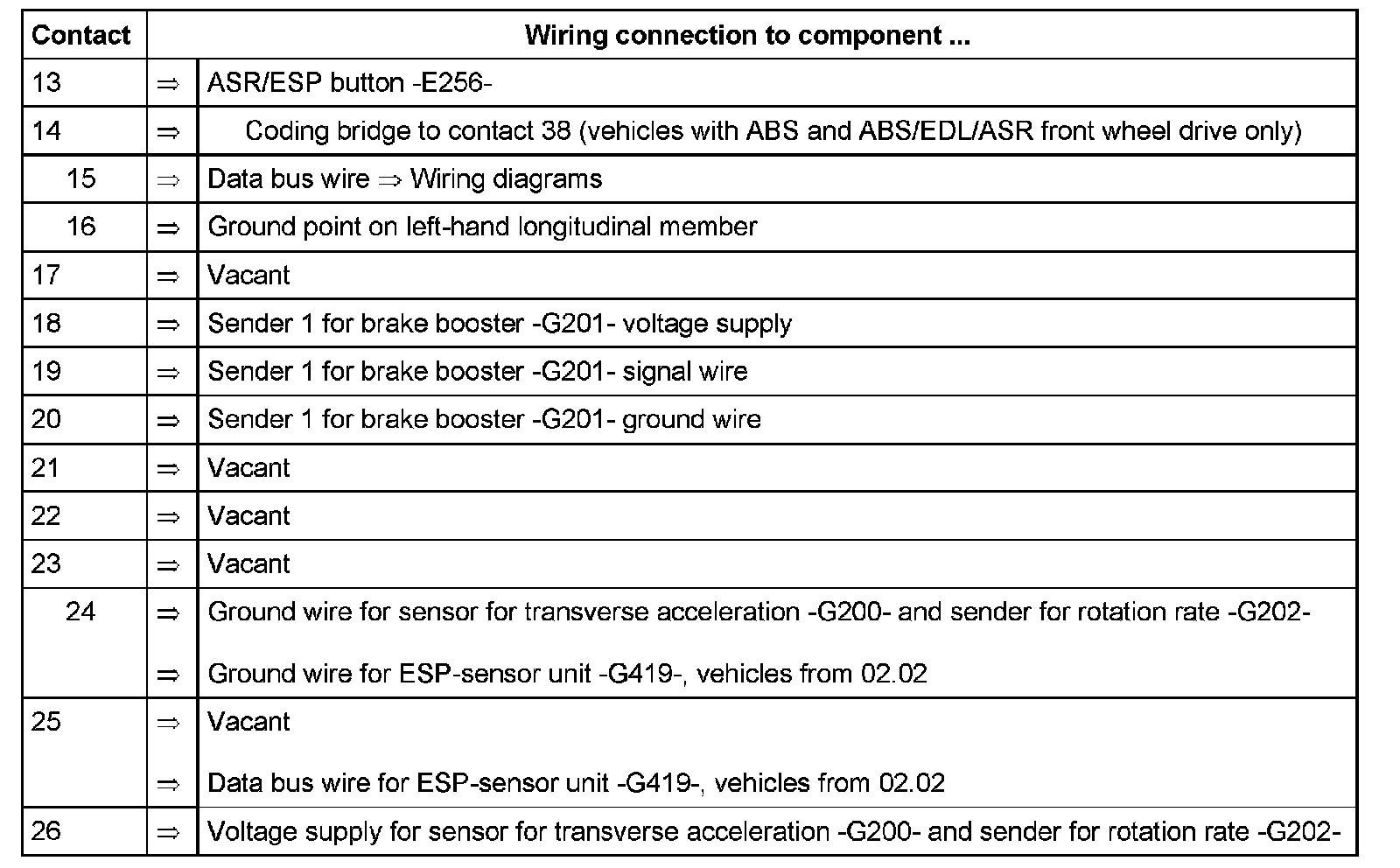

Contact assignment of connector T47 wiring harness/ABS control module (w/EDL) -J104

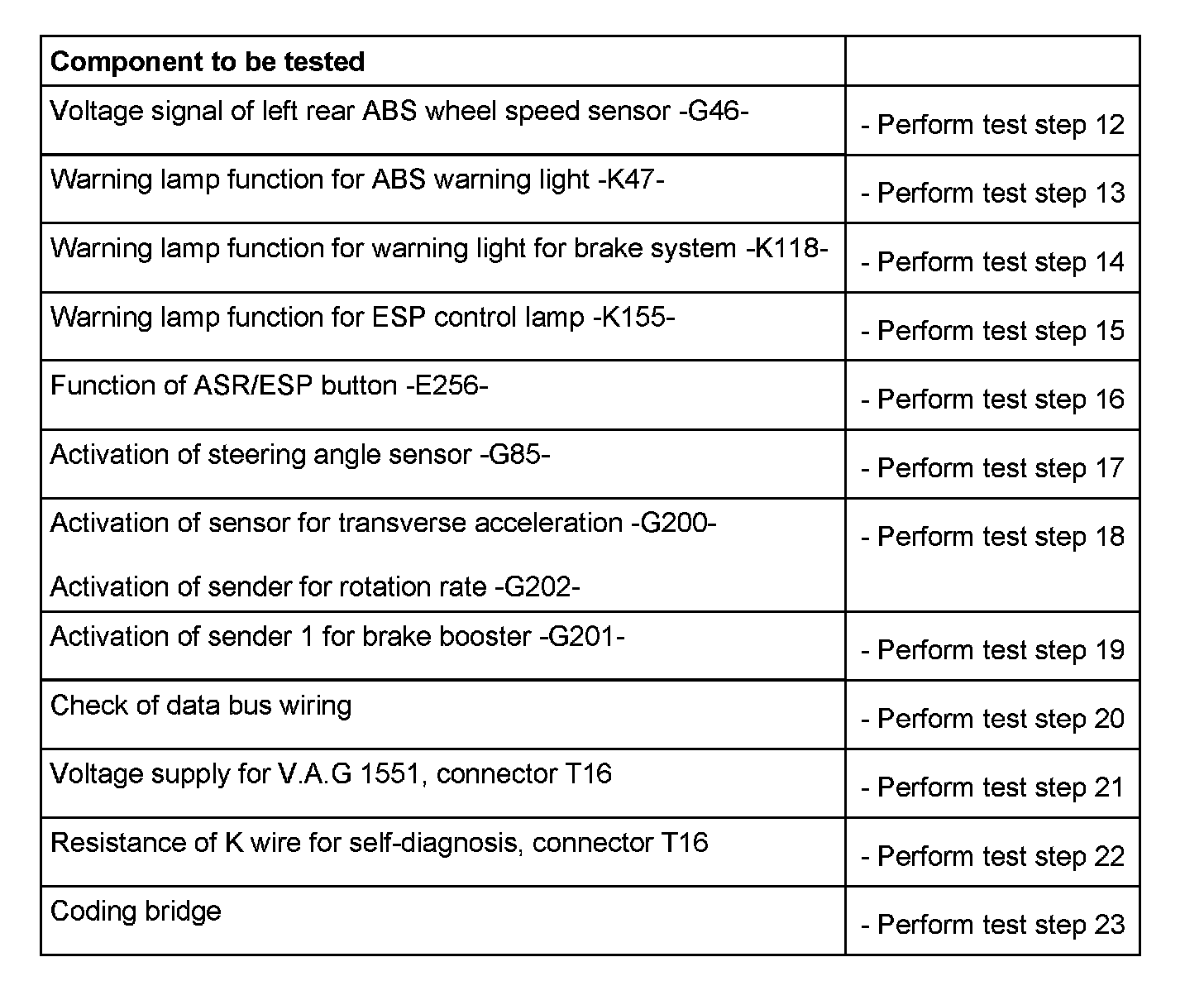

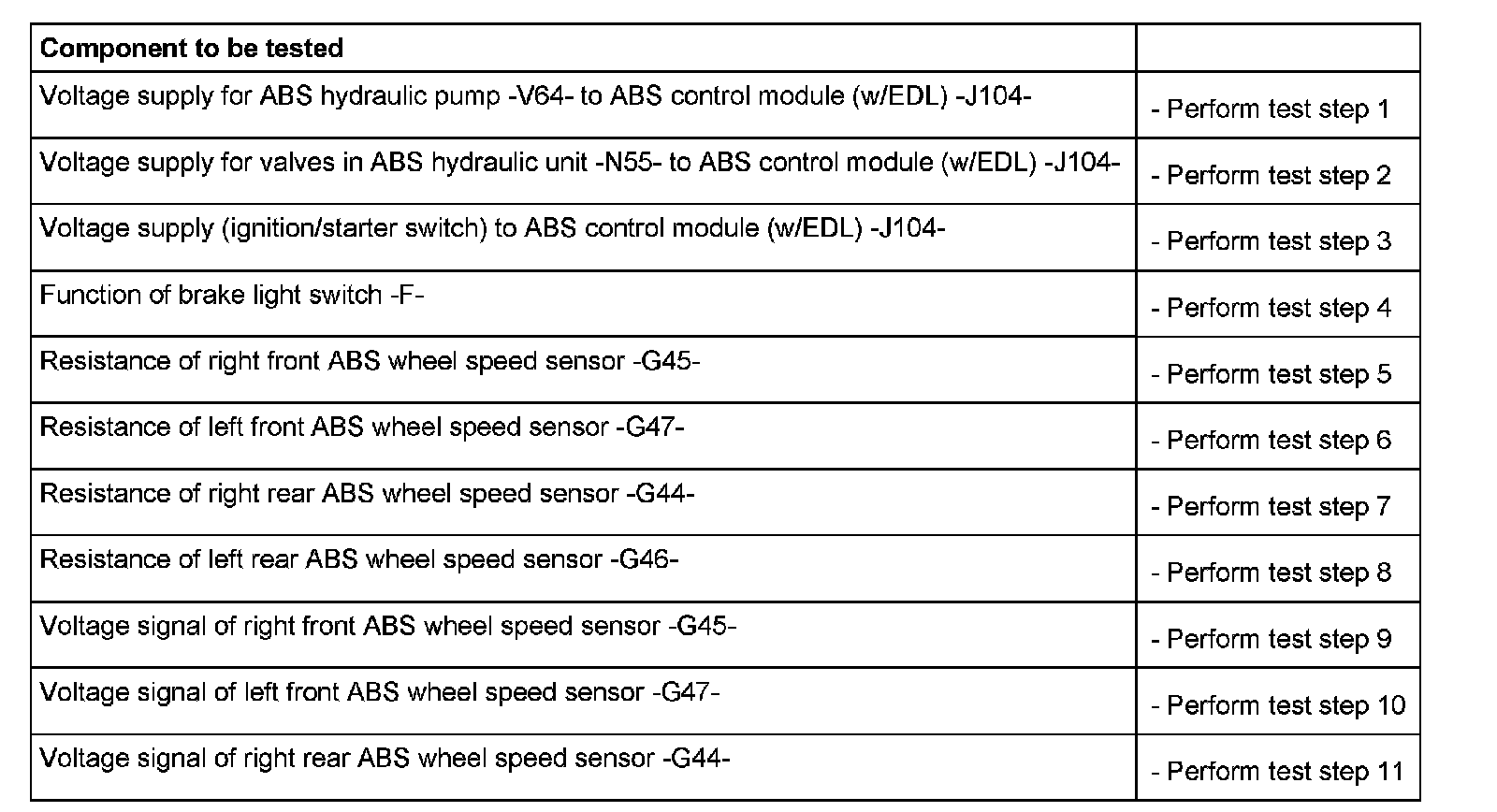

Test step overview
