Home >> Volkswagen >> 2004 >> GTI (1J1) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Brakes and Traction Control >> ABS - ITT Mark 20 IE System >> Electrical Testing >> Test Tables >> Test Step 6

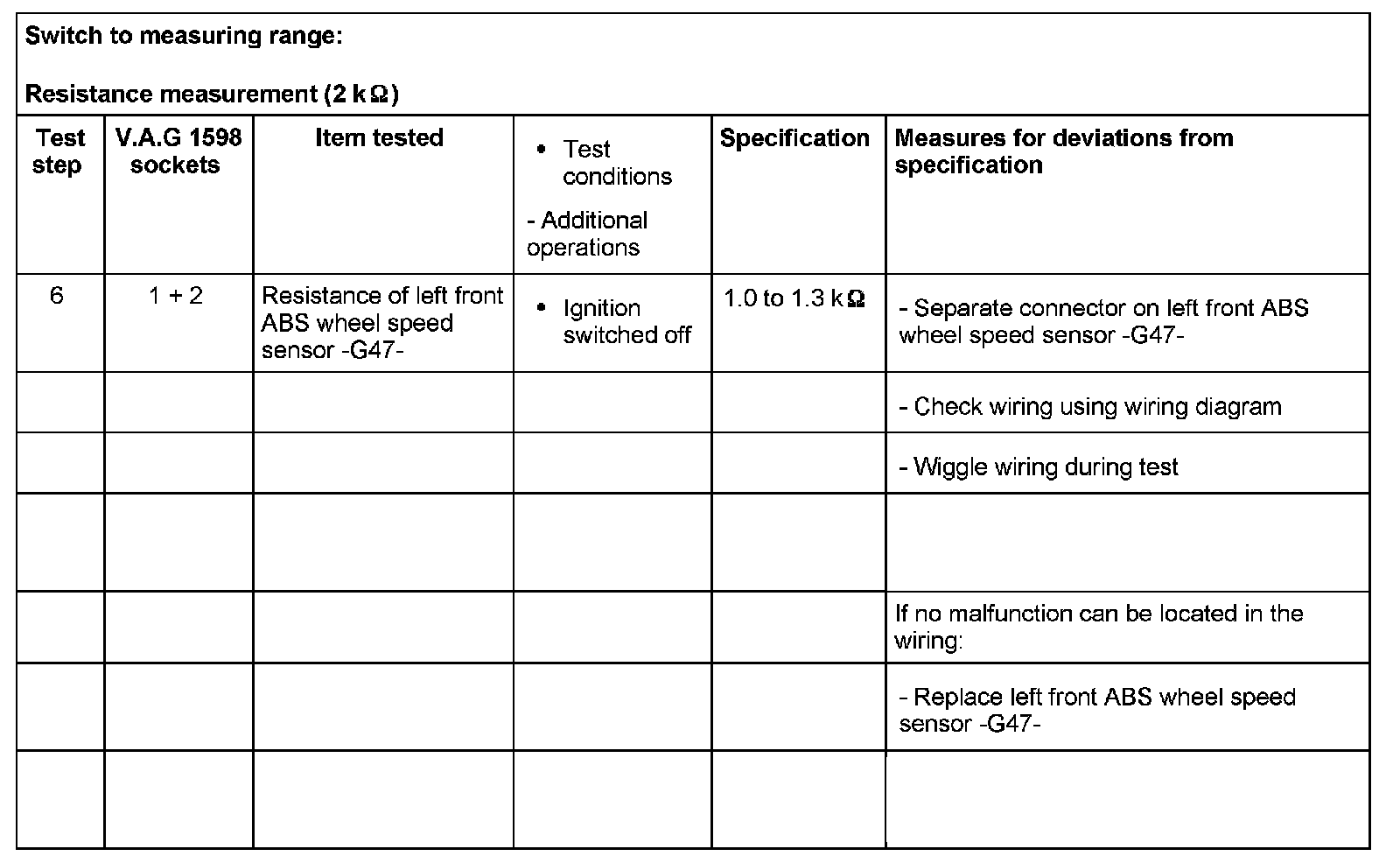

Test Step 6



Test 6:





Test Step 6
