Home >> Volkswagen >> 2004 >> GTI (1J1) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Brakes and Traction Control >> ABS - ITT Mark 20 IE System >> Electrical Testing >> Test Tables >> Test Step 19

Test Step 19

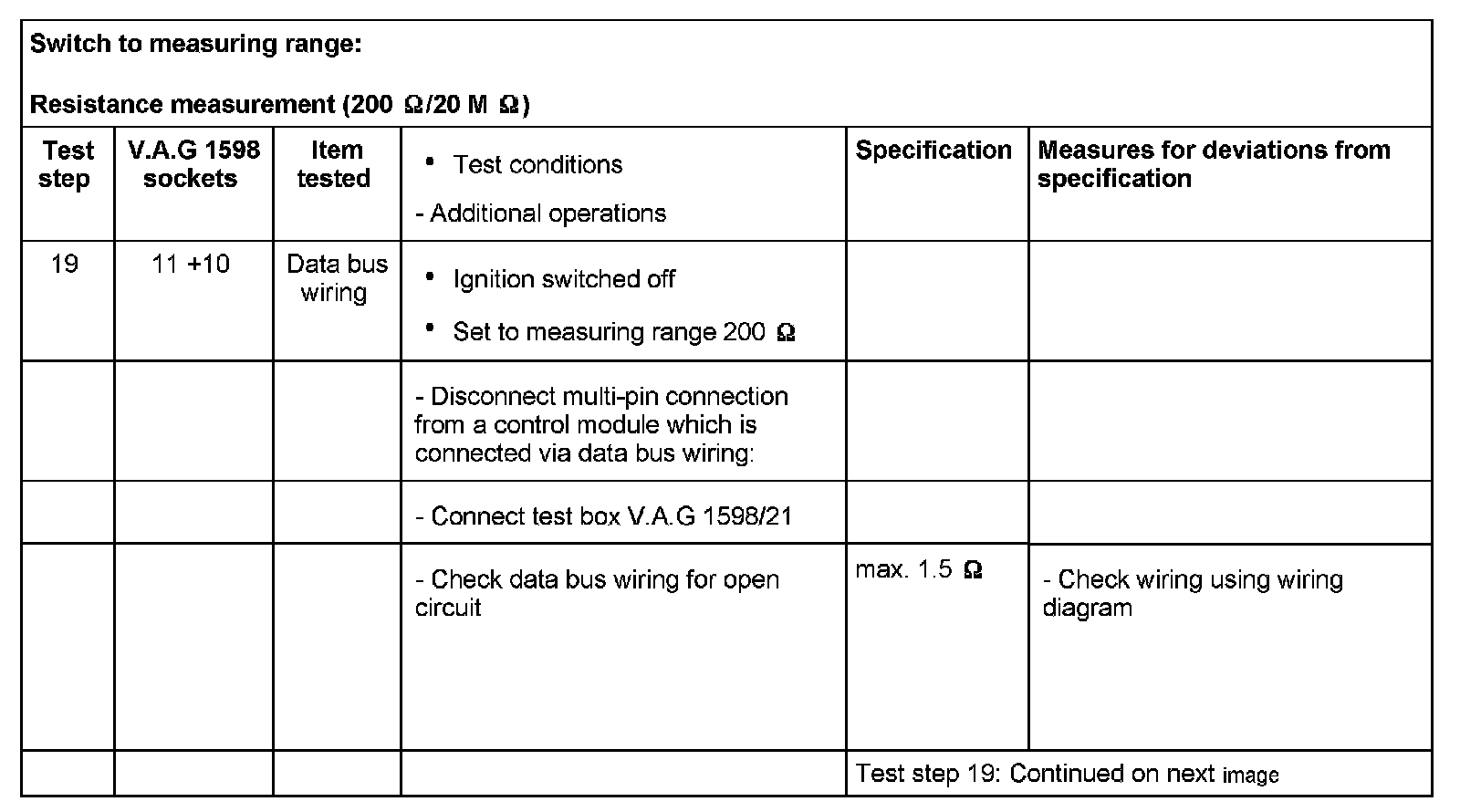

Part 1 Of 2 Test 19:




Part 2 Of 2 Test 19:





Test Step 19
