Control Arm Mountings, Replacing

Control arm mountings, replacing
Special tools and equipment required





- 3301 Assembly tool
- 3346 Assembly tool
- 3350 Tube





Fig. 1 Remove rear mounting
Aluminium links must only be clamped in a vice with protective clamps!

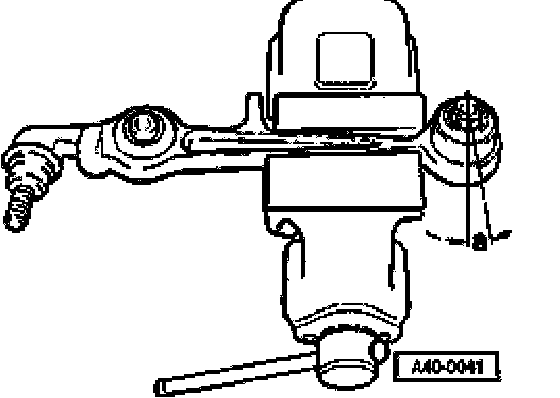

Fig. 2 Mounting installation position
Dimension A; 6- + 3-





Fig. 3 Pulling in rear mounting
- Insert mounting -A- in 3 2 mm recess in thrust piece -3346/1-.
- Pull mounting in onto stop.





Fig. 4 Pulling out front mounting





Fig. 5 Pulling in front mounting
- Insert mounting -A- in 8 mm recess in thrust piece -3346/1-.
- Pull mounting in onto stop.
