Adjusting Brake Light Switch

Adjusting brake light switch

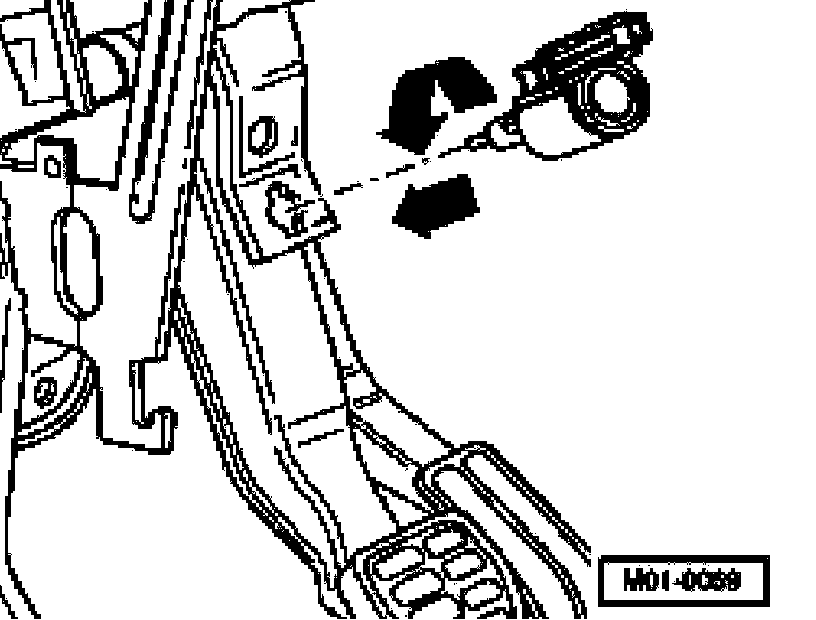

Remove brake light switch to adjust.
- Disconnect connector off brake light switch.





- Remove brake light switch by turning 45°to the left.
- Before installing, pull plunger fully out.
- Guide brake light switch through assembly opening and reinstall by pressing against the pedal and turning 45° to the right.
Brake pedal always remains in rest position.
- Install brake light switch connector.
- Check function of brake light.
After adjusting brake light switch, make sure the brake pedal is in the end stop position (released position).
