Air Bag Control Module: Locations

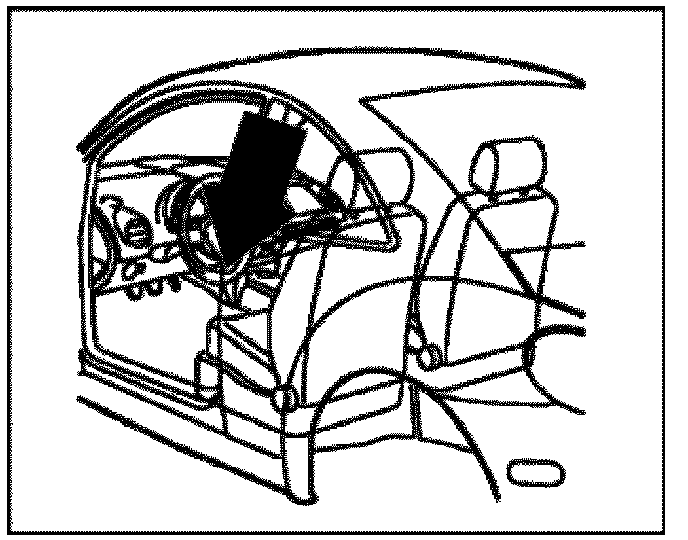

J234 - Airbag Control Module

- on central tunnel, front, beneath heater core housing
