Display Group 2
Display Group 2
Display content for display group 002
Display group 002 - Passenger's door
Display group 002:

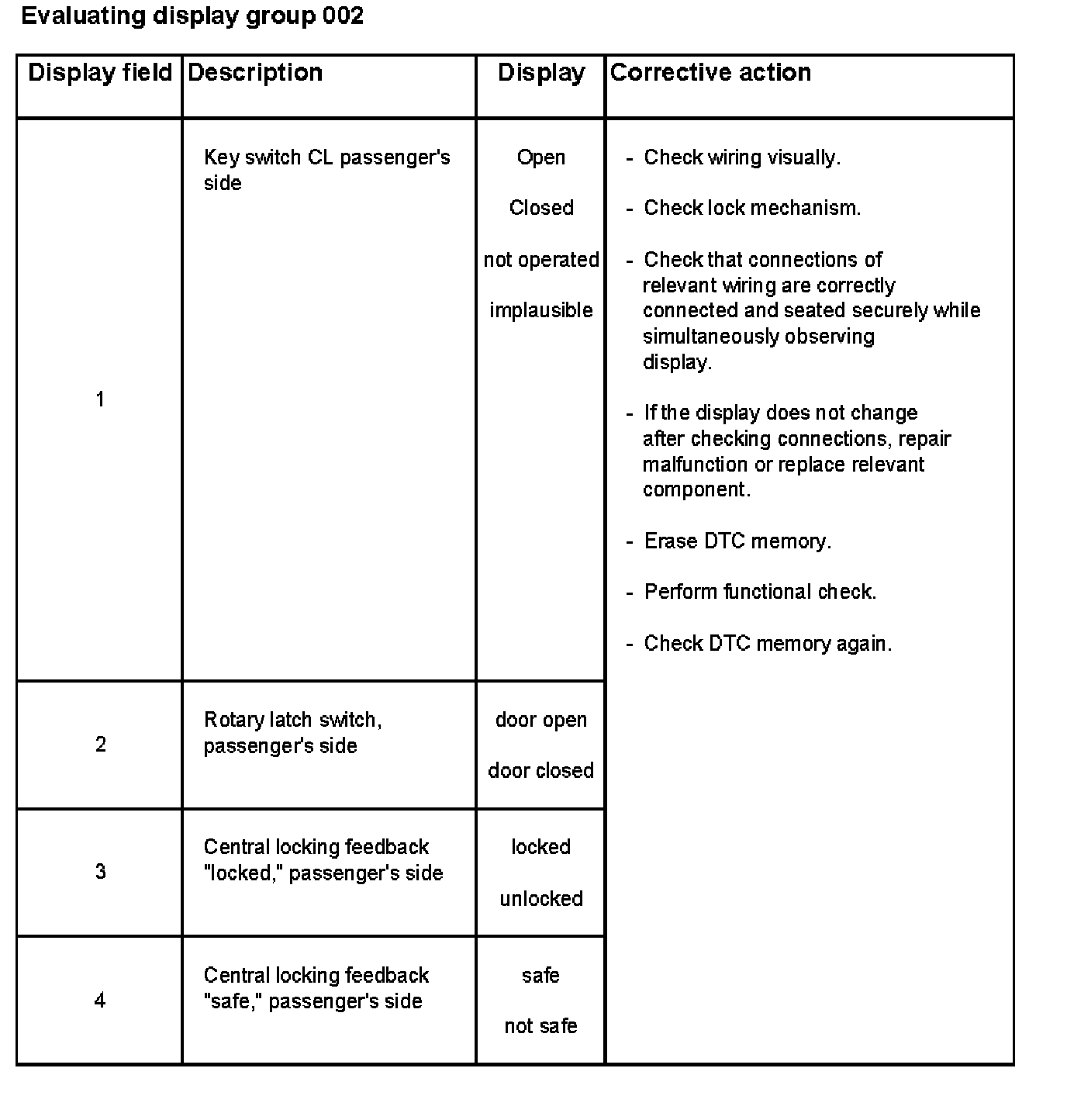

Evaluating display group 002
