Home >> Volkswagen >> 2003 >> New Beetle (1C1) L4-2.0L (AZG) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Comfort System (With Power Windows) >> Read Measuring Value Block (Function 08) >> Evaluating Measured Value Blocks >> Display Group 16

Display Group 16

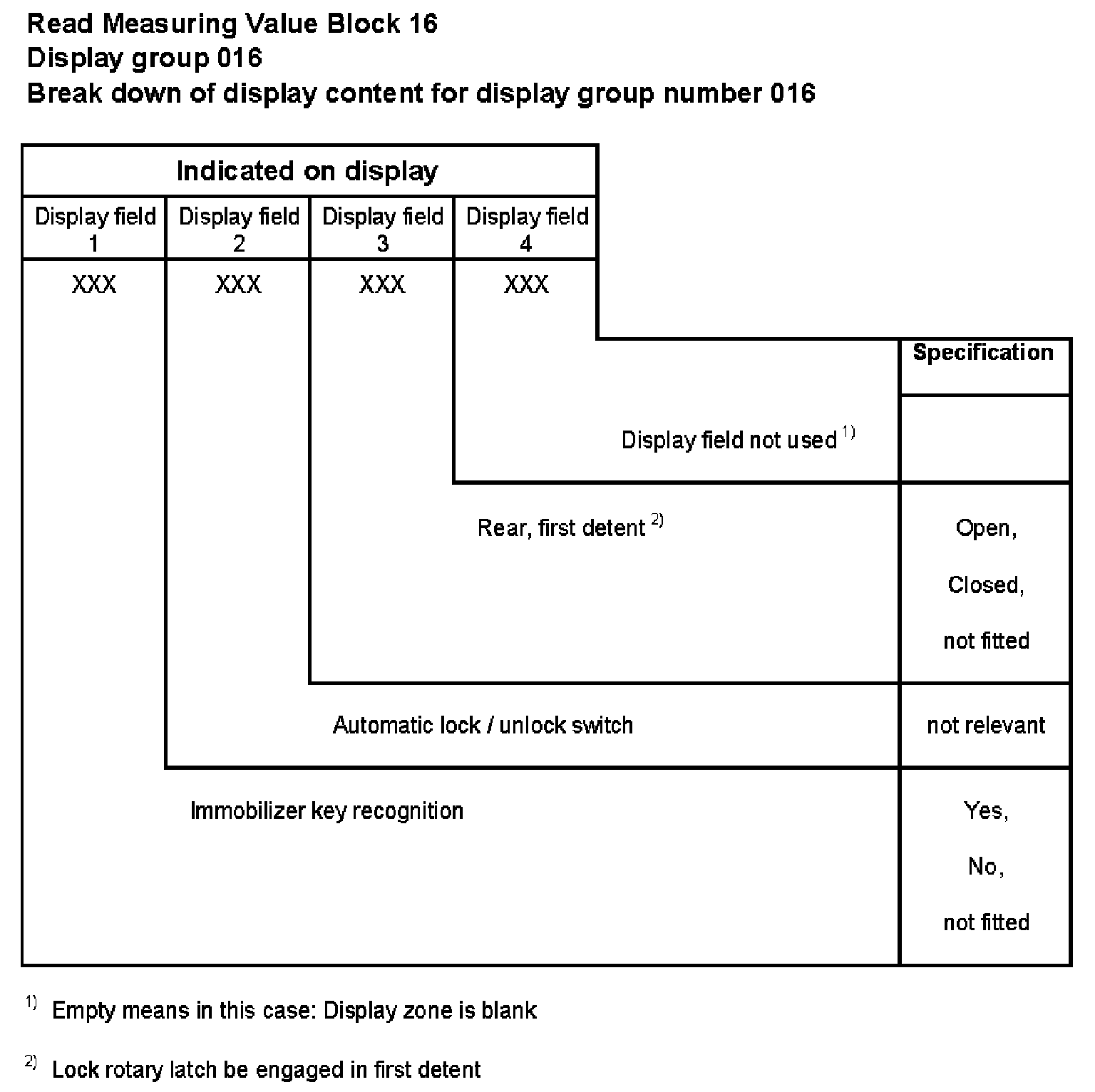

Display content for display group 016

Display group 016


Display group 016:

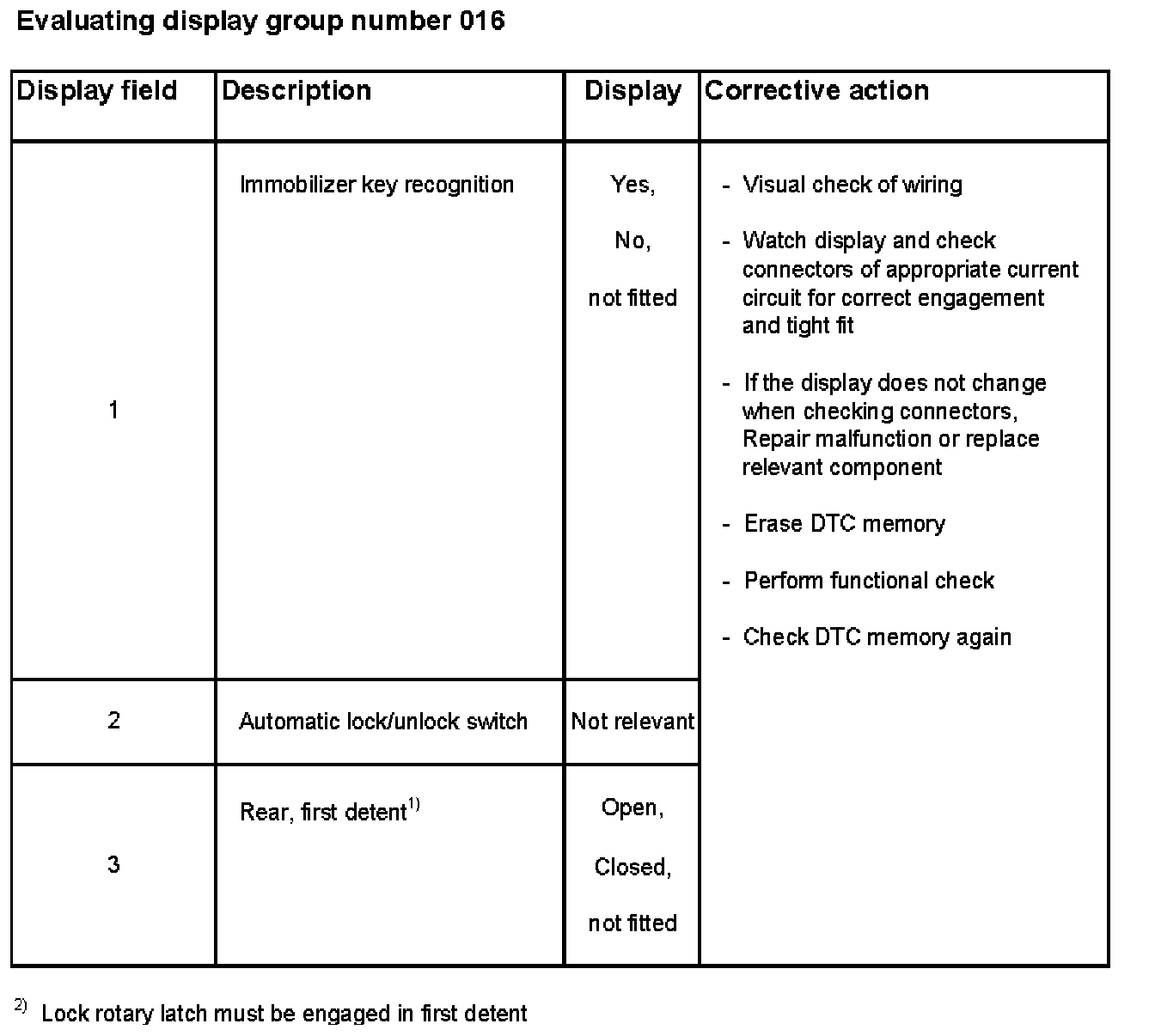

Evaluating display group 016
