Speed Sensor, Removing and Installing

Speed sensor on front axle, removing and installing

Removing
- Raise vehicle.

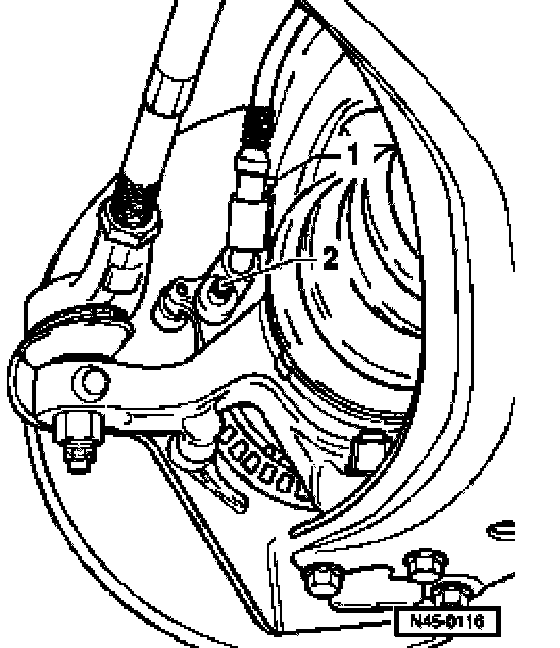

- Disconnect speed sensor and speed sensor wiring connector -1-.
- Remove bolt -2- from wheel bearing housing.
- Pull ABS speed sensor from wheel bearing housing.

Installing
- Before inserting speed sensor, clean mounting hole inner surface and coat speed sensor with solid lubricant paste G 000 650.
- Insert speed sensor into mounting hole in wheel bearing housing and tighten bolt to 8 Nm (71 inch lbs.).
- Connect speed sensor to speed sensor wiring connector.
- Turn wheels fully left and right lock and check clearance to speed sensor wiring.

Rotor on front axle, checking or removing and installing
- Raise vehicle.
- Remove wheel.
- Rotate brake disc and check rotor is damaged or dirty.
- If rotor is damaged, remove wheel hub with rotor and replace.
