Multi-Pin Connector With Contact Assignment

Brake system vacuum pump -V192-, vehicles from my 06.02, electrical check
- VAG 1526 B Hand multimeter
- VAG 1598/31 Adapter set

Requirements
- Fuse 51 must be OK (remove fuse from fuse holder to check).





- Remove the 6-pole contact.

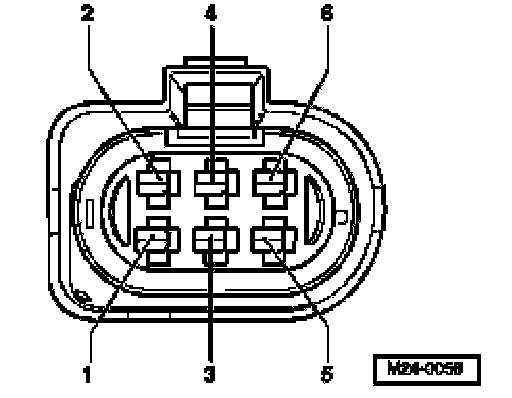

Multi-pin connector with contact assignment

Note: All contacts not listed are currently not assigned and must never be connected to other components!

Contact assignment of connectors for voltage supply and diagnosis.







Contact 1 = Ground
Contact 2 = Connection with engine control module (pin 22)
Contact 3 = Not applicable
Contact 4 = Not applicable
Contact 5 = Voltage supply from Battery + through fuse 51
Contact 6 = Not applicable





Test step overview
