Vacuum Pump: Service and Repair

Brake system vacuum pump -V192-, removing and installing
There are no provisions for servicing the brake system vacuum pump -V192-. If a malfunction is detected the brake vacuum pump -V192- must be replaced.
The brake system vacuum pump -V192- is located lower left on the subframe.

Removing

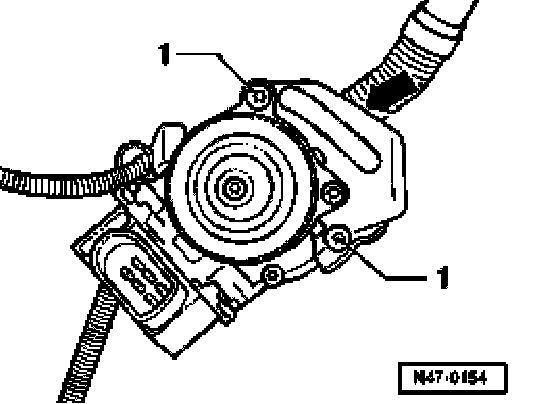

- Remove bolts -1- on bracket for brake system vacuum pump -V192-.
- Pull hose -arrow- off brake system vacuum pump -V192-.
- Take out brake system vacuum pump -V192-.

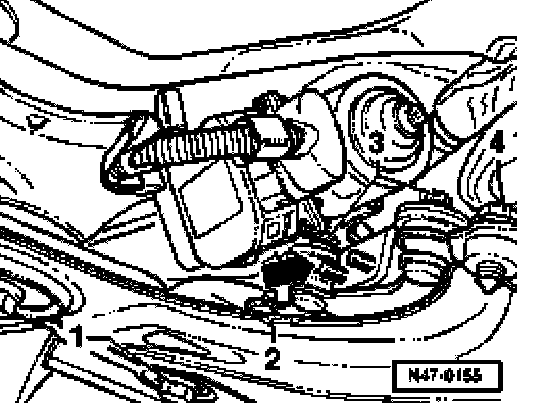

- Bracket -arrow- for brake system vacuum pump -V192-.
- Remove lock nut -2- from bolt -1-.
- Remove bolt -4-.
- Take bracket out.
- Remove bolts -3- to disassemble the bracket -arrow- further.





Installing
Install in reverse order.

Tightening torques
Nut -2- to bracket: 20 Nm (15 ft. lbs.)
Bolts -3-to bracket: 8 Nm (71 inch lbs.)
Bolt -4- to bracket: 20 Nm (15 ft. lbs.)
Torx socket head bolt for brake vacuum pump -V192- to bracket: 8 Nm (71 inch lbs.)
