Brake Booster, Removing and Installing

Brake booster, removing and installing

Special tools and equipment

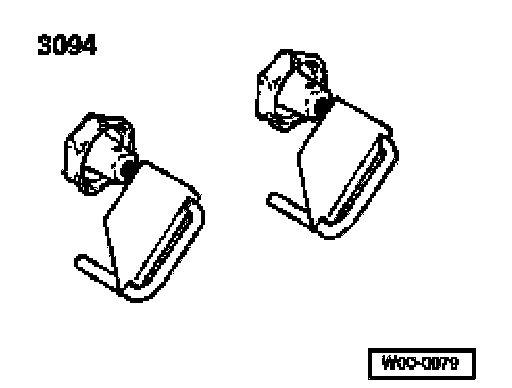

- 3094 Hose clamps

Removing
- Obtain radio code on vehicles with coded radio.
- Disconnect battery.
- Clamp clutch master cylinder supply hose with special tool 3094.
- Disconnect clutch master cylinder supply hose.
- Remove control module and hydraulic unit
- Disconnect vacuum hose from brake servo.
- Remove trim below instrument panel.

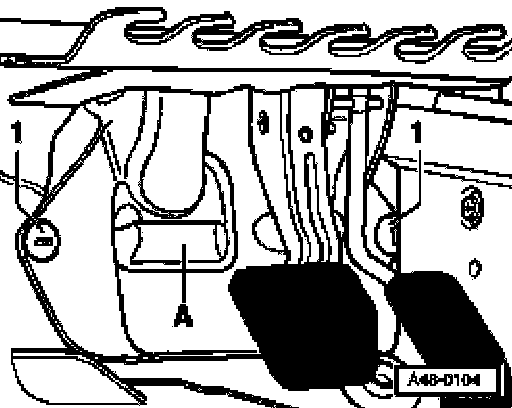

- Remove bolts -1-.
- Remove cover -A-.





- Remove connecting plate between clutch and brake pedals on vehicles with manual transmission.

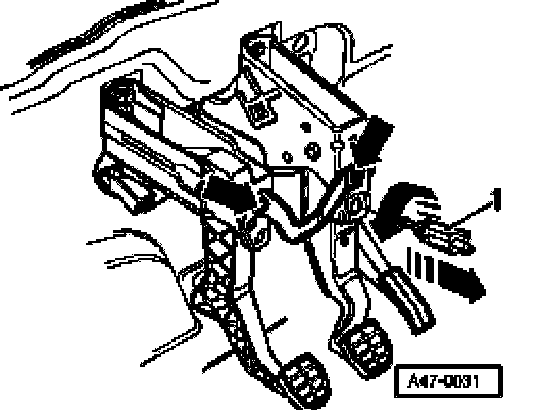

- Remove brake light switch -1-.
- Separate brake pedal from brake booster.
- Guide brake booster with brake master cylinder out forward and remove.

Installing
Install in reverse order.
- Adjusting brake light switch
- Bleeding brake system Mark 60 IE
