Parking Brake Lever: Service and Repair

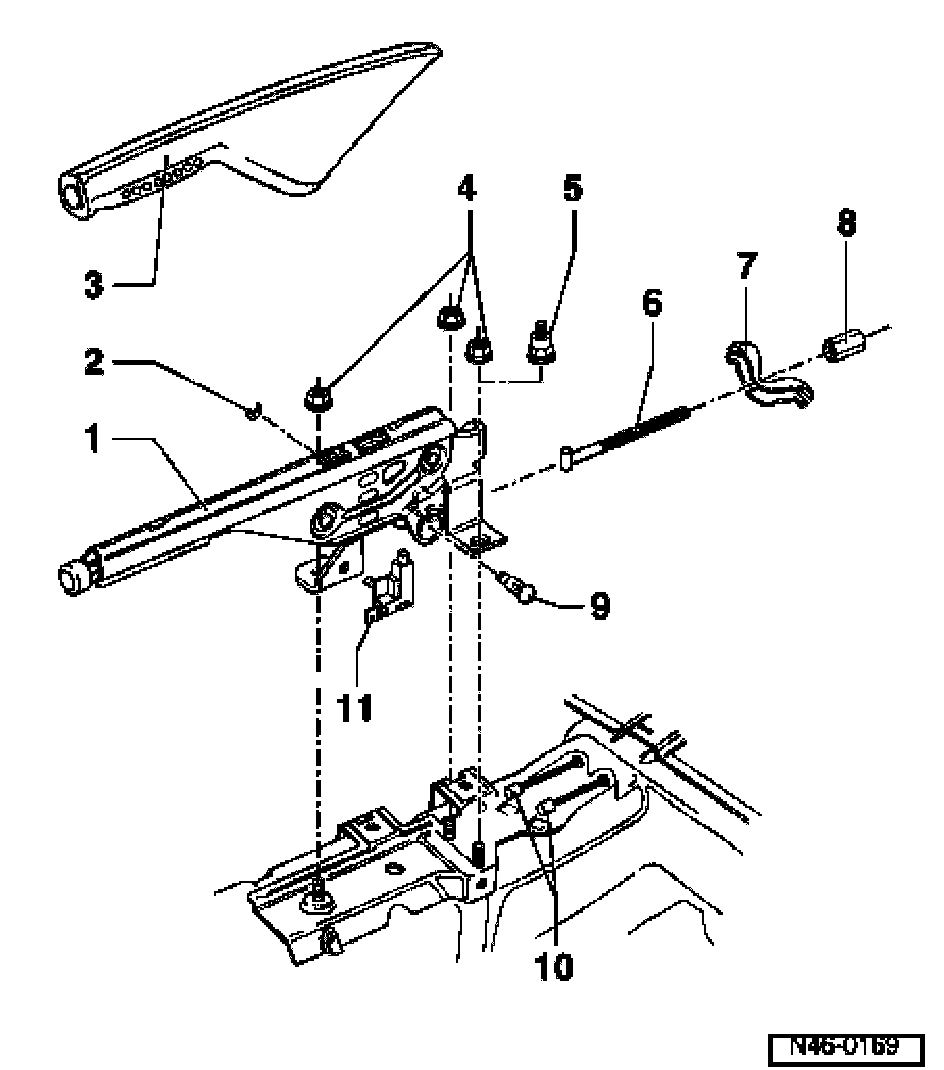

Parking brake lever, assembly overview
1. Parking brake lever
- Before removing take out center console
2. Circlip
3. Parking brake lever trim
- Pull off forward
- Pry up release tab in rear lower area of trim with a screwdriver
4. Hex nut, 25 Nm (18 ft. lbs.)
5. Adapter
- For vehicles with center armrest
6. Pull rod
7. Compensator
8. Adjusting nut
- Adjusting parking brake:
- Vehicles with disc brakes/front wheel drive
9. Fulcrum pin
- Mounts pull rod -item 6 in parking brake
10. Parking brake cables
- Removing and installing
11. Parking brake warning switch
