FS 111 Brake Calipers

FS 111 front brake calipers, servicing

Note:
^ When carrying out repairs install all parts supplied in repair kit.
^ New brake calipers are filled with brake fluid and are pre-bled.
^ Apply thin coat of lubricant G 052 150 A2 to brake cylinders, pistons and seals.

1. Protective seal
2. Bleed valve
- Apply thin coat of assembly lubricant G 052 150 A2 to threads before screwing in
3. Cap
- Insert in mounting bushing
4. Guide pins, 28 Nm (21 ft. lbs.)
5. Mounting bushing
- Insert into brake caliper housing
6. Brake caliper housing
7. Protective seal
- Do not damage when inserting piston
8. Piston
- Removing and installing
- Apply thin coat of assembly lubricant G 052 150 A2 to piston before inserting
9. Seal
- Removing and installing

Front brake caliper piston, removing and installing

Special tools and equipment

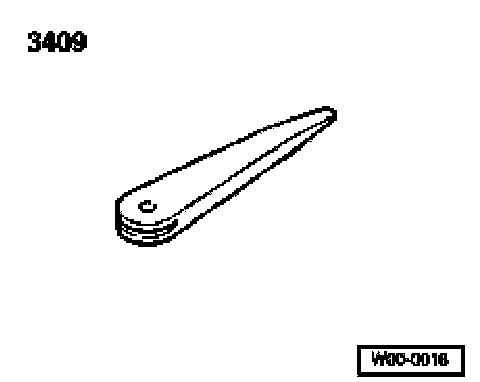

- 3409 Wedge
- Piston resetting tool

Removing

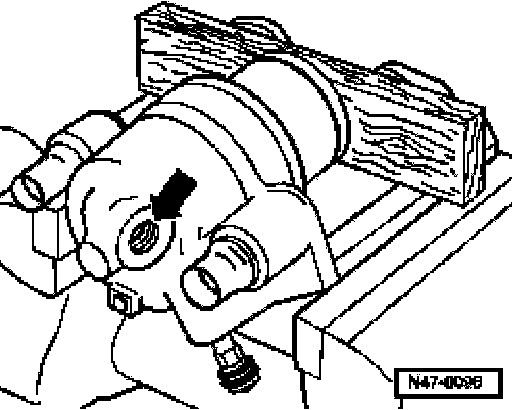

- Force piston out of brake caliper housing using compressed air.

Note: Place a piece of wood in the recess to prevent damaging the piston.

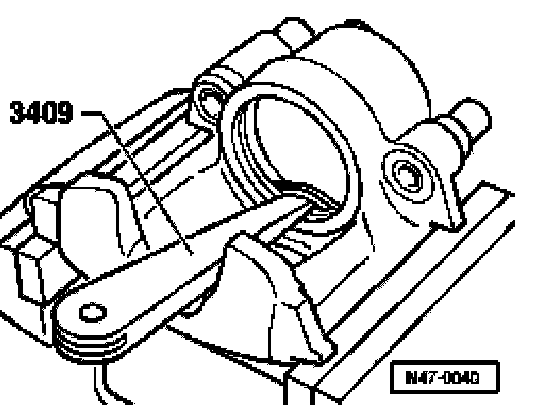

- Remove seal using wedge 3409.

Note: When removing ensure that the surface of the cylinder is not damaged.

Installing
- The surface of the piston and seal must only be cleaned with methylated spirits and then dried.
- Thinly coat piston and seal with paste G 052 150 A2 before inserting.
- Insert oil seal in brake caliper housing.

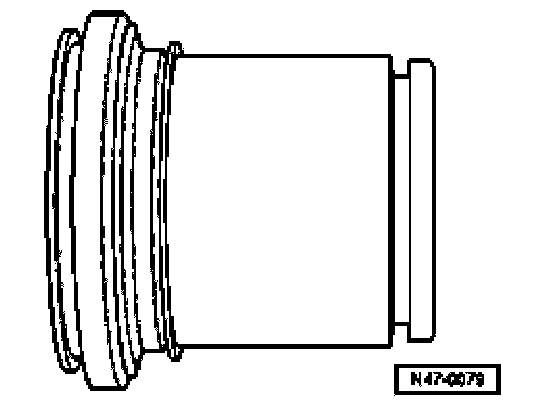

- Place protective seal with the outer sealing lip on the piston.





- Using wedge 3409, insert the inner sealing lip into the grove in the cylinder.

Note: When doing this hold piston in front of caliper housing.

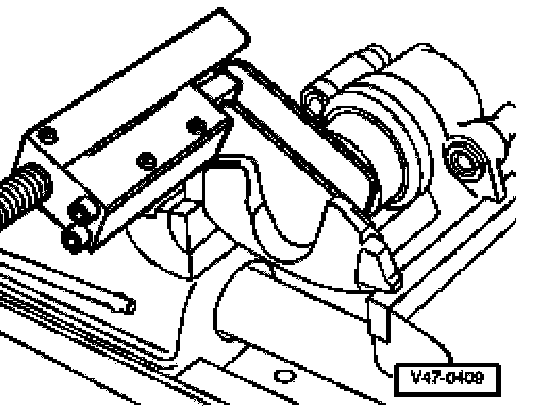

- Press piston into the brake caliper housing using piston resetting tool.

Note: The protective seal outer sealing lip must slip into the piston groove.
