Removal and Installation

Brake pedal, removing and installing

Additional information
- Refer to Powertrain Management; On Board Diagnostic (OBD)

Removing
- Remove trim below instrument panel.

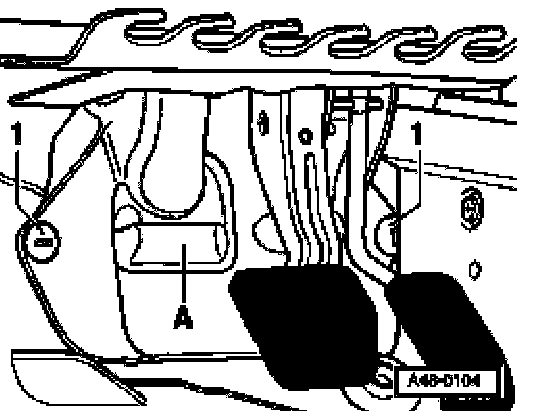

- Remove screws -1-.
- Remove cover -A-.





- Remove connecting plate between clutch and brake pedals on vehicles with a manual transmission.
- Remove brake light switch -1-.
- Disconnect accelerator cable.
- Vehicles with accelerator pedal position sensor, release connector below instrument panel.
- Disconnect brake pedal from brake booster.
- Remove hex nuts item - 2 -.
- Take out pedal cluster.
- Remove brake pedal.

Installing
Install in reverse order.
- Adjust brake light switch.
- Brake light switch: adjusting
