ABS Mark 60 Warning Lights -K32-, -K47-, -K118-, and -K155

DTCs displayed by (ABS) Mark 60 warning lights -K32-, -K47-, -K118-, and -K155

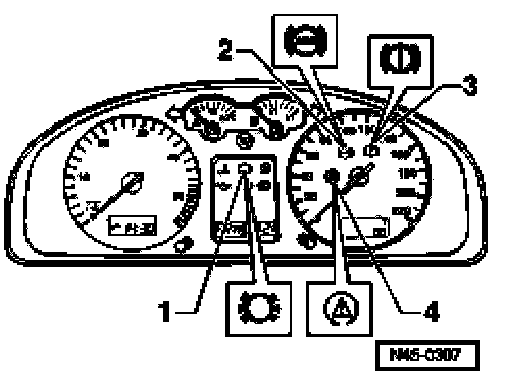

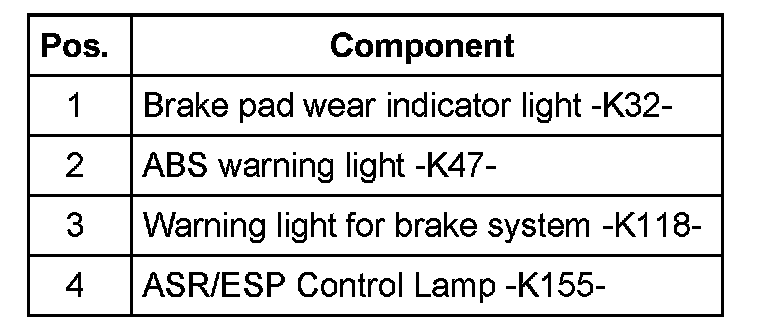

Warning lamps

Note: The ASR/ESP control lamp -K155- for stabilization program ASR/ESP is used by ABS/EDL /ASR and ABS/EDL /ASR/ESP brake systems.

Brake pad wear indicator light -K32





- If the Brake pad wear indicator light -K32- -1- does not go out after ignition is switched on and test sequence is completed, or it lights up while driving, then the malfunction may be:

a- The brake pads may be worn out
Check the front and rear brake pads.

b- There is a malfunction in the activation of the brake pad wear indicator light -K32-.
For vehicles with display in instrument panel, it is indicated on display: "CHECK BRAKE PADS"

ABS warning light -K47





- If the ABS warning light -K47- -2- does not go out after ignition is switched off and test sequence is completed, then the malfunction may be:

a- Voltage supply is below 10 Volt.

b- There is a malfunction in the ABS.
The anti-locking brake system remains switched off with an ABS malfunction -b-, but the brake system remains fully operational.

c- Since the last time the vehicle was started there was a temporary speed sensor malfunction.
In the case of a sensor malfunction -c-, the ABS warning light -K47- will extinguish after restarting the engine and attaining a speed of above 20 km/h (approximately 13 mph).

d- The connection of instrument cluster to ABS control module (w/EDL) -J104- is interrupted.
e- Instrument cluster is faulty.

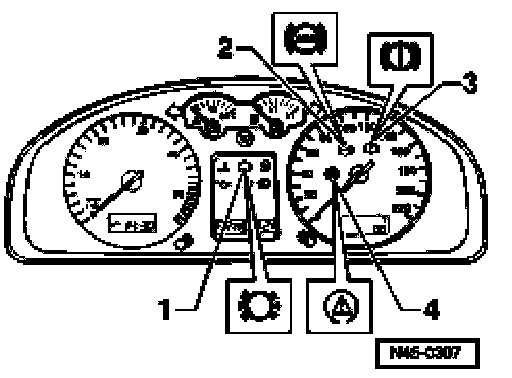

ABS warning light -K47- and Warning light for brake system -K118





- If the ABS warning light -K47-, -2-, goes out, but the brake system Warning light for brake system -K118-, -3-, remains on, then the malfunction may be:

a- The parking brake is applied.

b- The brake fluid level is too low.

c- There is a malfunction in the activation of the brake system warning light for brake system -K118-.
If the ABS warning light -K47- -2- and the brake system warning light for brake system -K118- -3- light up, the ABS system is faulty and the EBD (Electronic brake pressure distribution) is not functioning.

WARNING: After the ABS warning light -K47- and warning light for brake system -K118- have lighted up, it is possible that the rear wheels can lock up earlier during braking.

For vehicles with display in instrument panel, it is indicated on display with the parking brake lifted:
"PARKING BRAKE LIFTED"
or
with too low brake fluid level
"STOP! BRAKE FLUID INSTRUCTIONS MANUAL"
or
with brake system faulty
"STOP! BRAKES FAULTY INSTRUCTIONS MANUAL"

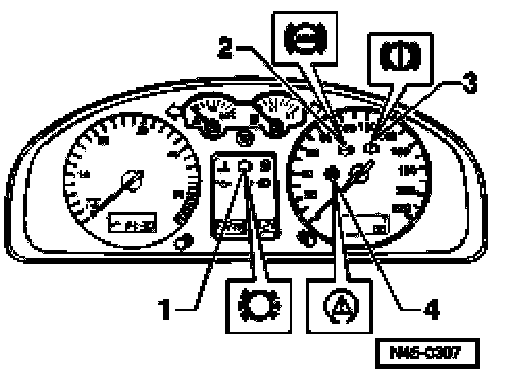

ASR/ESP control lamp -K155





- If the stabilization program ASR/ESP warning lamp -K155- -4- does not go out after ignition is switched on and test sequence is completed then the malfunction may be:

a- Short to positive in ASR/ESP button -E256-.

b- There is a malfunction in the activation of the stabilization program ASR/ESP control lamp -K155-. - Electrical Wiring Diagrams, Troubleshooting & Component Locations binder

c- The ASR/ESP has been switched off via ASR/ESP button -E256-.
There is a malfunction present which exclusively affects the safety systems of the ASR/ESP. The ABS/EDL and EBD safety systems of the vehicle remain fully functional.
If stabilization program ASR/ESP Control lamp -K155- flashes while driving, the ASR or ESP system is regulating the system.
