Identifying Characteristics

Identifying characteristics
The brake booster boost is produced by vacuum pressure.

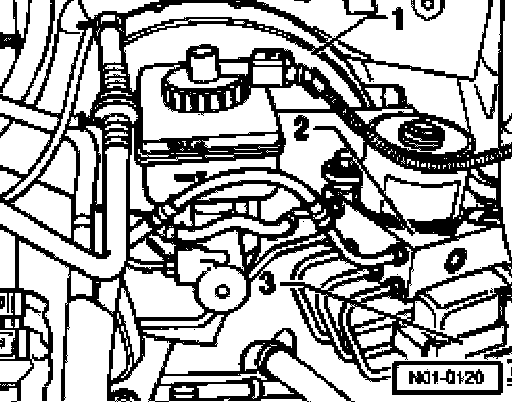

Distinguishing features:





1. 10" brake booster
2. Hydraulic unit
3. Control module, 25-pin (bolted to hydraulic unit)

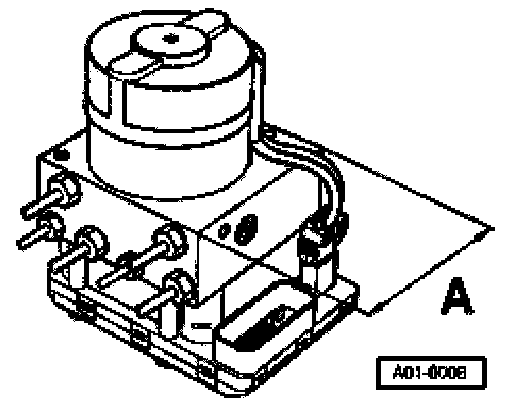

Distinguishing features of ABS, ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE hydraulic unit





- Dimension -A- 100 mm vehicles with ABS
- Dimension -A- 130 mm vehicles with ABS/EDL
- Dimension -A- 130 mm vehicles with ABS/EDL/ASR
