Transmission Vehicle Speed Sensor -G38-

Transmission vehicle speed sensor -G38- and Sender for transmission output RPM- G195-, replacing
Removing
- Remove oil pan.

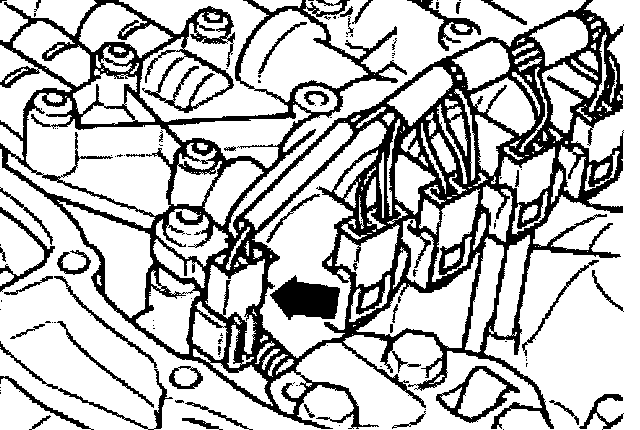

- Pull connector -arrow- off transmission vehicle speed sensor.

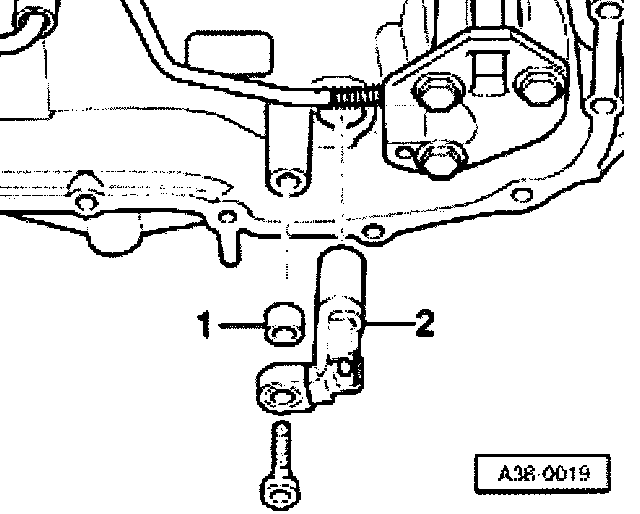

- Remove transmission vehicle speed sensor 2-.

Installing

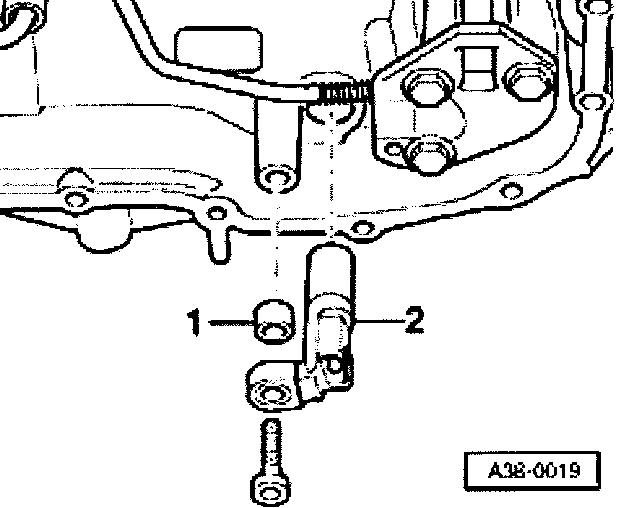

- Install transmission vehicle speed sensor-2 with spacer-1- (height: 8 mm) and tighten to prescribed torque setting.

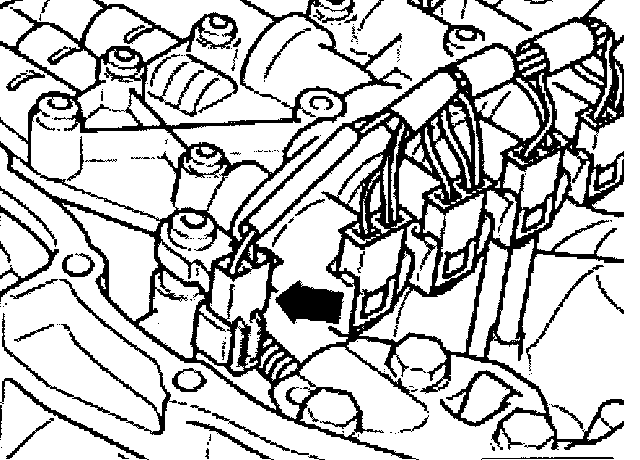

- Fit connector -arrow- to transmission vehicle speed sensor.
- Remove oil pan.
- Fill with ATF.
