On Board Diagnostic (OBD), Troubleshooting Guide




On Board Diagnostic (OBD), Troubleshooting Guide

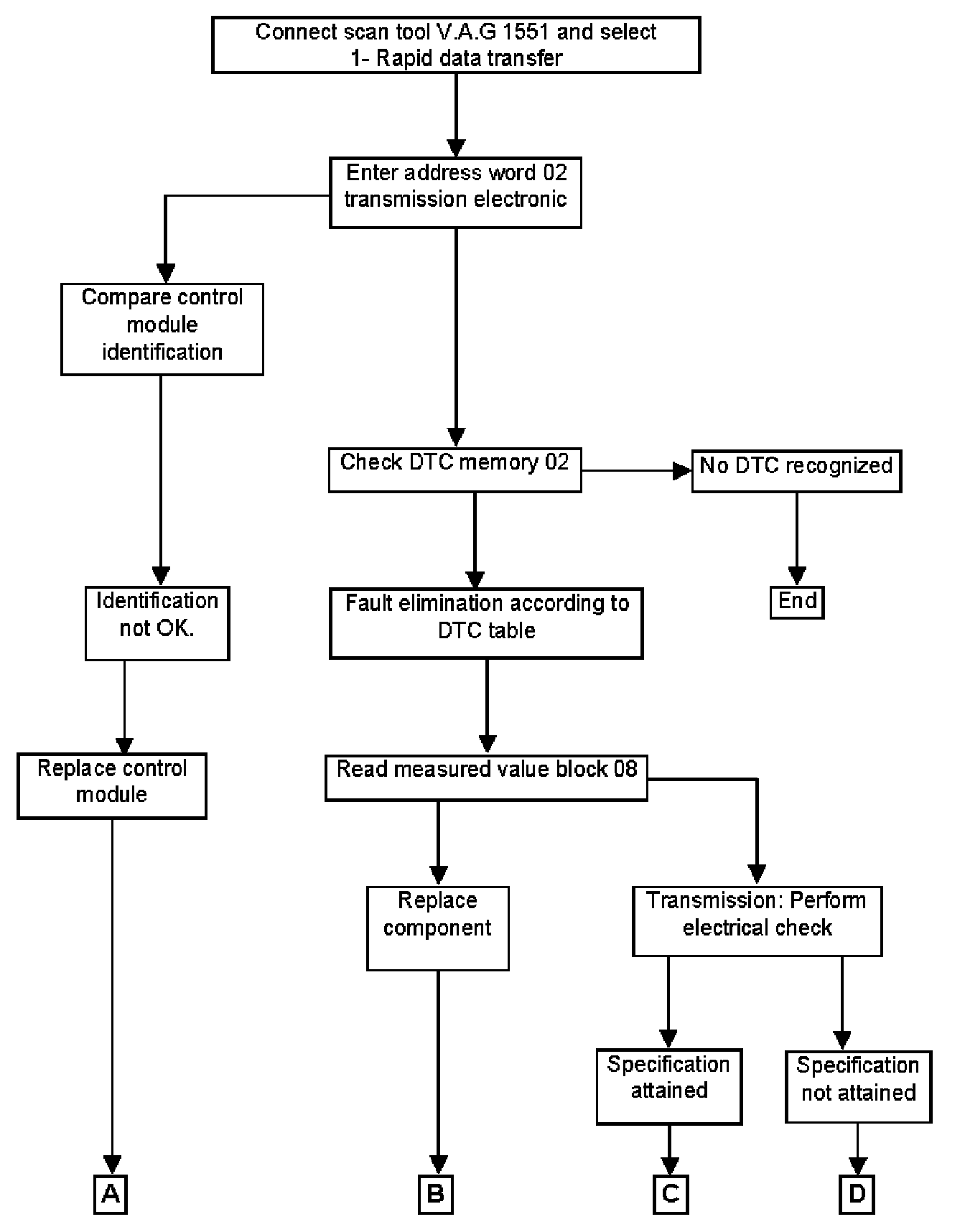

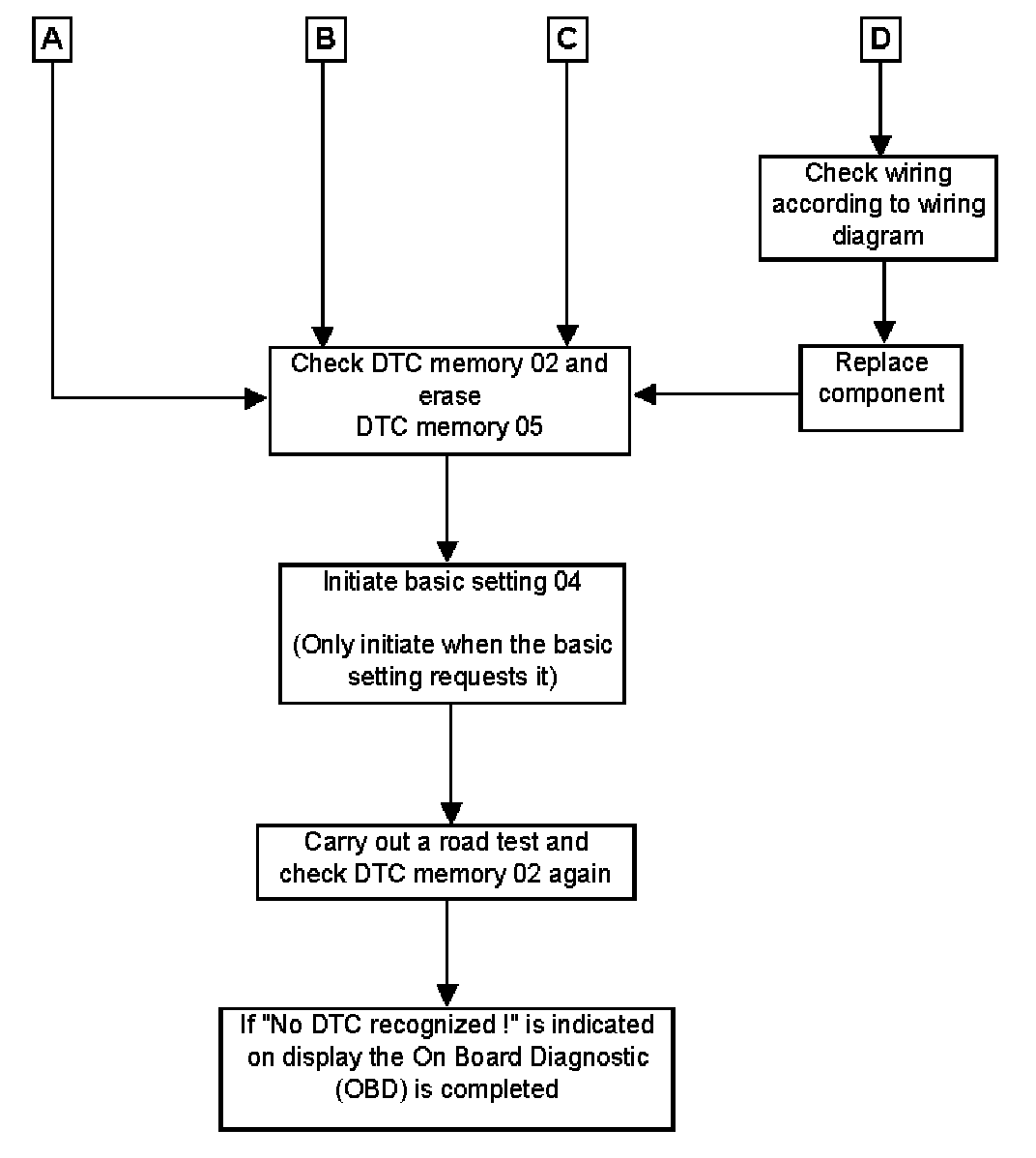

Fault finding with scan tool VAG 1551 on "Automatic transmission"












If after completing the On Board Diagnostic(OBD) the automatic transmission to operate with, then continue fault finding using fault finding program.
