Connector Locations

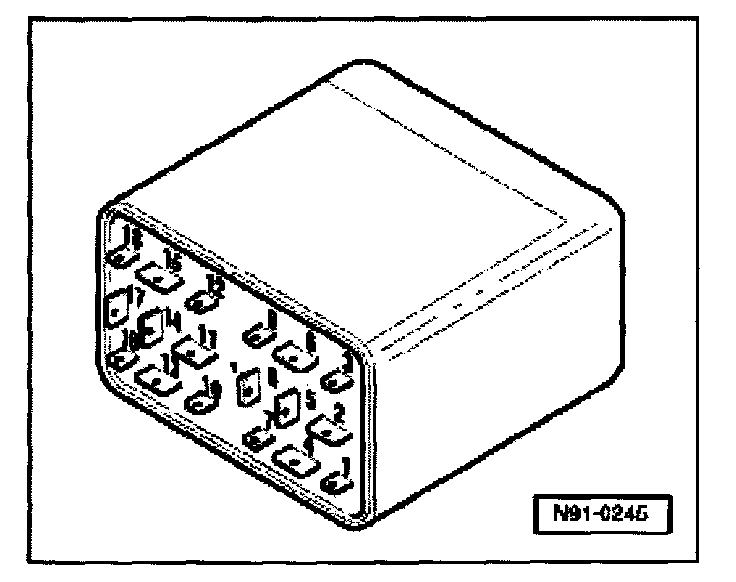

Connector Assignment For Multi- Function Steering Wheel Control Module







1 - Comfort CAN Low
2 - not assigned
3 - Comfort CAN High
4 - not assigned
5 - Radio, serial data
6 - K-wire, diagnosis
7 - Cruise control - (resume, accelerate)
8 - CAN ground
9 - not assigned
10 - Ground, terminal 31
11 - Relay for double tone horn
12 - Terminal 15
13 - Terminal 30
14 - not assigned
15 - Terminal 58d
16 - Cruise control + (SET/decelerate)
17 - Input for Heating "ON"
18 - CAN-Bus for operating unit in steering wheel
