Electrical Diagrams

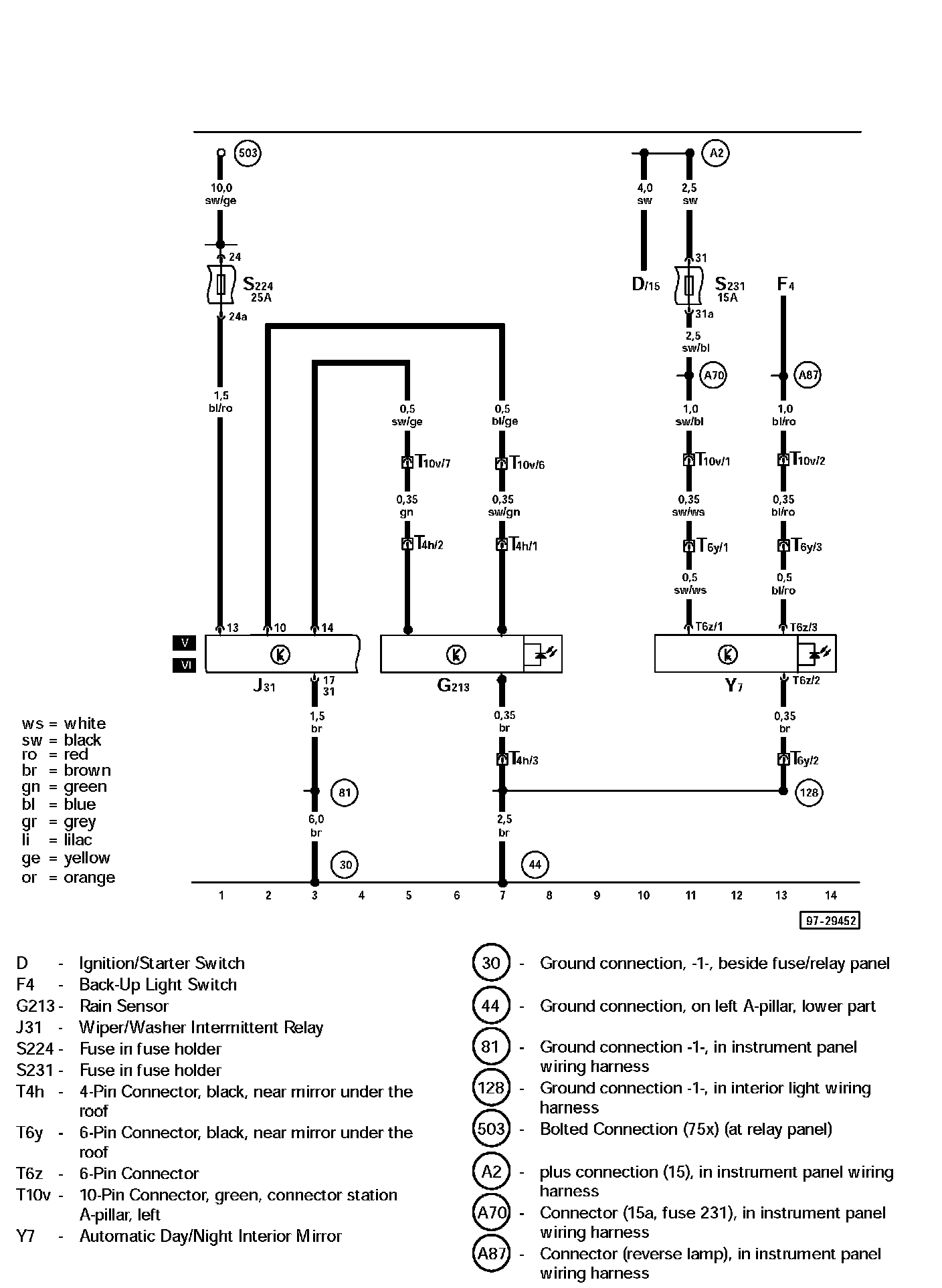

Automatic day/night interior mirror, Rain sensor from August 1998

IMPORTANT NOTE

This manufacturer uses "Track" style wiring diagrams.

For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Track 1-14:
