Shift Interlock Solenoid: Service and Repair

Shift lock solenoid -N110-, removing and installing
Removing

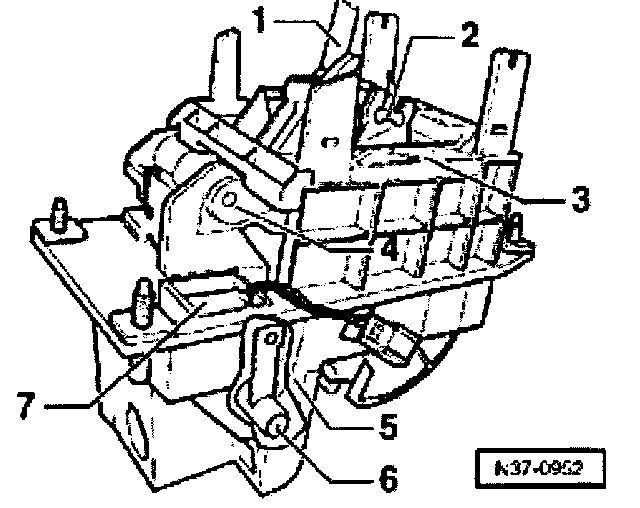

- Remove shift mechanism.





- Remove stop buffer -2- from cable lever.
- Shift selector lever-1- into Tiptronic position, then remove frame -3-.
- Shift selector lever into position "2".
- Lift lever for locking cable -4-, detach from mounting and remove from mounting bracket -5
- Drive out fulcrum pin for locking pawl -6- using punch.
- Remove shift lock solenoid -7- together with locking pawl -6- upward.

Installing
Shift selector lever into position "2".





- Shift lock solenoid -7- must be installed together with locking pawl from above in mounting bracket -5-.
- Carefully drive in pin for locking pawl -6-.
- Place lever for locking cable -4- in mounting bracket -5- until detents can be felt to engage in both mounting positions.
- Place frame -3- on mounting bracket (reinforced side upward) and insert stop buffer -2- in cable lever.
- Install shift mechanism.
